- Page 1 753/754 Documenting Process Calibrator Getting Started PN 3377694 July 2011 Rev. 2, 7/23 © 2011-2023 Fluke Corporation. All rights reserved. All product names are trademarks of their respective companies.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ........................1 How to Contact Fluke ..................... 1 Safety Information ......................2 Symbols ......................... 4 Before You Begin ......................6 Standard Equipment....................... 6 Operation Features ......................10 Input and Output Jacks ....................10 Buttons ........................12 The Battery ........................ - Page 4 753/754 Getting Started...
-
Page 5: Introduction

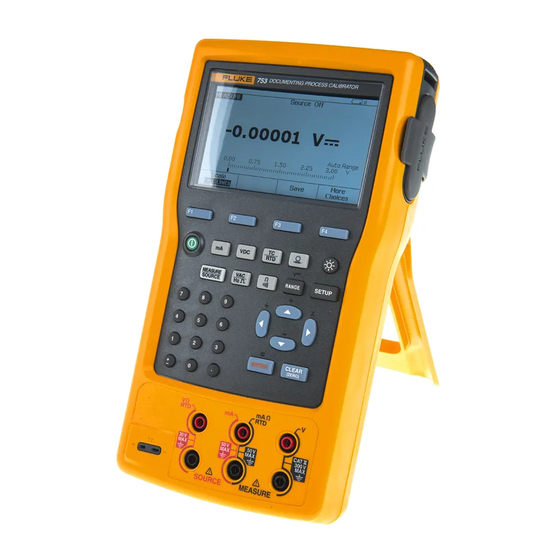

Introduction How to Contact Fluke The 753 and 754 Documenting Process Calibrators (the Fluke Corporation operates worldwide. For local contact Product) are battery-powered, hand-held instruments that information, go to our website: www.fluke.com measure and source electrical and physical parameters. To register your product, view, print, or download the ... -
Page 6: Safety Information
753/754 Getting Started Safety Information • Do not exceed the Measurement Category (CAT) rating of the lowest rated XW Warning individual component of a Product, probe, or accessory. To prevent personal injury, use the Product only as specified, or the protection supplied •... - Page 7 Documenting Process Calibrator Safety Information • Use only current probes, test leads, and • Do not use test leads if they are adapters supplied with the Product. damaged. Examine the test leads for • damaged insulation, exposed metal, or if Do not touch the probes to a voltage the wear indicator shows.
-
Page 8: Symbols
753/754 Getting Started Symbols Symbols used on the Product and in this manual are explained in Table 1. Table 1. Symbols Symbol Meaning Symbol Meaning WARNING - RISK OF DANGER. Earth WARNING. HAZARDOUS VOLTAGE. Risk of » Consult user documentation. - Page 9 ´ Pressure hazardous materials handler per local regulations. Contact your authorized Fluke Service Center for recycling information. This product complies with the WEEE Directive and its marking requirements. The affixed label...
-
Page 10: Before You Begin
Table 2. 5 hours). For more information, see The Battery in the These items are also available: 753/754 Users Manual. When the Battery is inside the • Calibration Manual (available from the Fluke website) Product, it will only charge if the Product is off. - Page 11 Black) or Fluke-75X-Stackable Test Lead Set (2 Lithium Ion Battery Pack Red and 2 Black) TC Cap USB Cable: 6 ft. type A to type mini-B Fluke TL224 Industrial Test Lead Set (1 Red and Black) HART Communication Cable (754) Jumper for three-wire RTD measurement connections...
- Page 12 753/754 Getting Started gks01f.emf Figure 1. Standard Equipment...
- Page 13 Documenting Process Calibrator Standard Equipment gks02f.emf Figure 1. Standard Equipment (cont.)
-
Page 14: Operation Features
753/754 Getting Started Operation Features Input and Output Jacks Figure 2 shows the input and output jacks and connectors. Table 3 explains their use. Table 3. Input/Output Jacks and Connectors Name Description HART jack (754 only) Connects the Product to HART devices. - Page 15 Documenting Process Calibrator Operation Features gks05f.emf Figure 2. Input/Output Jacks and Connectors...
-
Page 16: Buttons
Adjusts the backlight intensity (three levels). Enters and exits Setup mode to change operating parameters. (754) (754) Toggles between HART communication mode and analog operation. In calculator mode, this key supplies the square root function. (753) (753) Adjusts the Range of the Product. - Page 17 Documenting Process Calibrator Operation Features Table 4. Buttons (cont.) Button Description Push U or R to increase display intensity. Push D or L to decrease intensity (seven levels). Make choices from lists on the display. U, D, L, R Increase or decrease the source level when using the step feature. In calculator mode, provides arithmetic functions (+ - ÷...
-
Page 18: The Battery
753/754 Getting Started The Battery Figure 3 shows how to change and recharge the Battery. The Battery can be charged inside or outside of the Product with the Battery Charger. gks9f.emf Figure 3. Battery Removal and Charger Use... -
Page 19: Display Languages
Documenting Process Calibrator Display Languages Safety Specifications Display Languages Complete specifications are at www.fluke.com. See the The Product shows information in five languages: 753/754 Product Specifications. • English To achieve the best noise rejection, use battery power. • European French •... - Page 20 753/754 Getting Started Safety General ........................ IEC 61010-1: Pollution degree 2 Measurement ....................... IEC 61010-30: CAT II 300 V Power ........................Internal battery pack: Lithium Ion, 7.2 V dc, 30 Wh External Power Supply: 15 Vdc, 2 A Operating Altitude ....................3000 m (9842 ft) Storage Altitude .......................
- Page 21 Documenting Process Calibrator Safety Specifications Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
- Page 22 753/754 Getting Started...
