- Page 1 ™ DuraPlex Omnidirectional Headset The Shure Omnidirectional DuraPlex Headset user guide. Version: 1.1 (2022-D)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Accessories DH5 DuraPlex™ Omnidirectional Headset Furnished Accessories Optional Accessories General Description Replacement Parts Features Threaded Mount Instructions Care and Maintenance Wiring and Termination Adjusting the Headband and Microphone Typical Wiring Table Reversing the Boom TA5F Wiring for Lectrosonics Bodypacks (Servo Biased... -
Page 3: Dh5 Duraplex™ Omnidirectional Headset

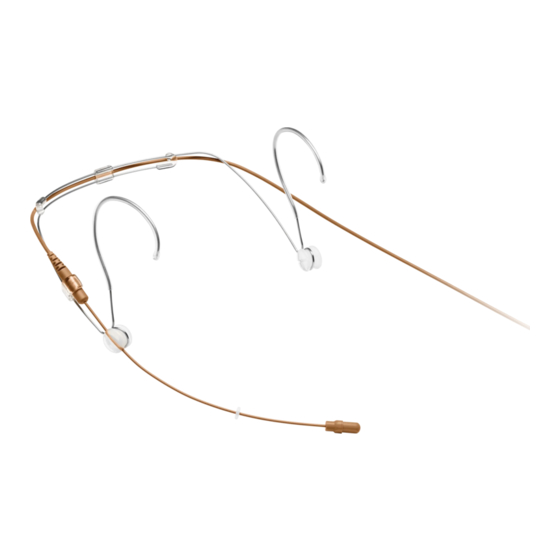

™ DuraPlex Omnidirectional Headset General Description The DuraPlex DH5 omnidirectional headset microphone is ideal for both speech and performance applications that require durability and minimal visibility. The bendable lightweight headset features switchable boom mounting placement and a neutral clear design to be used with any DH5 color variant. The certified IP57 rated headset can withstand challenging conditions in volving sweat and dust for use in theater, corporate events, and TV broadcast applications. Each microphone is supplied with a storage pouch, single tie clip, vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F threaded adapter. -
Page 4: Adjusting The Headband And Microphone
Shure Incorporated Adjusting the Headband and Microphone ➀ Adjust headband width. ➁ Adjust the earhooks, slide the boom arm in the boom pivot, and twist the pivot to adjust height and length. ➂ Bend boom arm into place. Adjust position. -
Page 5: Reversing The Boom
Shure Incorporated ➃ Use presence cap or leave off. Important: Use slide-fit windscreen with the presence cap Use snap-fit windscreen without the presence cap Reversing the Boom The microphone boom can be positioned on the left or right side of the head. -
Page 6: Presence Cap
Shure Incorporated Squeeze the earpiece towards the headband. Push out the boom arm and boom pivot. On the other side, repeat the steps to remove the boom pivot. Move the boom arm to the preferred side, ensuring that the boom arm is placed in the slot in the boom pivot. -
Page 7: Frequency Response
Shure Incorporated Frequency Response Attaching the Windscreen There are two windscreens for use with the DuraPlex microphone: A slide-fit windscreen for use with the presence cap A snap-fit windscreen for use without the presence cap Note: Do not use the snap-fit windscreen with the presence cap--the presence cap can become caught inside the snap-fit windscreen. -
Page 8: Accessories
RPMDL4CASE RPMDL4CASE RPMDL4CASE Threaded TA4F Adapter WA445 WA445 WA445 Accessories are available in Black (/B), Tan (/T), AND Cocoa (/C) color varieties. Please consult your Shure representative for available options. Optional Accessories TA4F/TQG XLR Preamplifier RPM400TQG Lemo XLR Preamplifier RPM400LEMO... -
Page 9: Threaded Mount Instructions
Shure Incorporated Description Black Cocoa Microphone Boom Arm and Cable Assembly, Lemo Con RPMDH5B/O- RPMDH5T/O- RPMDH5C/O- nector Microphone Boom Arm and Cable Assembly, MTQG Con RPMDH5B/O- RPMDH5T/O- RPMDH5C/O- nector MTQG MTQG MTQG Boom Pivot, qty. 4 RPMDH5PIVOT RPMDH5PIVOT RPMDH5PIVOT Boom Mount, qty. 4... -
Page 10: Wiring And Termination
Shure Incorporated Wiring and Termination Typical Wiring Table Re Cable Elec place Con trical Polari For Use Series ment Wiring Line Art (From Solder Side) struc De With Con tion sign nector 1.6mm Shure Lemo 3 wire Posi cable Bodypacks... -
Page 11: Mtqg Connector Assembly
Shure Incorporated Re Cable Electri place Con Polari For Use Series cal De ment Wiring Line Art (From Solder Side) struc With sign Con tion nector 1.6mm Red wire: Bias(2) cable Posi with 2 Blue wire: Audio(3) tive con 3-Wire... -
Page 12: Specifications
Shure Incorporated Specifications Note: • All specification values are based on using a typical bodypack with 5 V bias input or the RPM400MTQG preamplifier. When using the RPM400LEMO amplifier, refer to the RPM400LEMO specifications. • All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. -
Page 13: Certifications
13.6CM LEMO Certifications This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str. 12... - Page 14 Shure Incorporated Phone: +49-7262-92 49 0 Email: info@shure.de www.shure.com 14/14...
