www.ti.com
2.3.1.2
Import and Configure Project
To use Uniflash to flash the NFCLink Standalone firmware to the MSP-EXP430F5529LP:
1. Open UniFlash.
2. Go to File → New Configuration.
3. Connection → MSP430 USB1 and Board or Device → MSP430F5529. Click Ok.
4. When connected, click Program → Load Program.
5. Select Browse and find the configuration file at [Installed Path]\examples\boards\MSP-
EXP430F5529LP\F5529LP_TRF7970A_ALL_NFC_MODES\Debug and select the
F5529LP_TRF7970A_ALL_NFC_MODES.out file (see
6. Click OK. The firmware should automatically begin to load into flash memory on the MSP-
EXP4305529LP.
7. After the firmware is loaded, cycle the power to the LaunchPad development kit by unplugging the
USB cable and then plugging it back in.
SLOU452 – December 2016
Submit Documentation Feedback

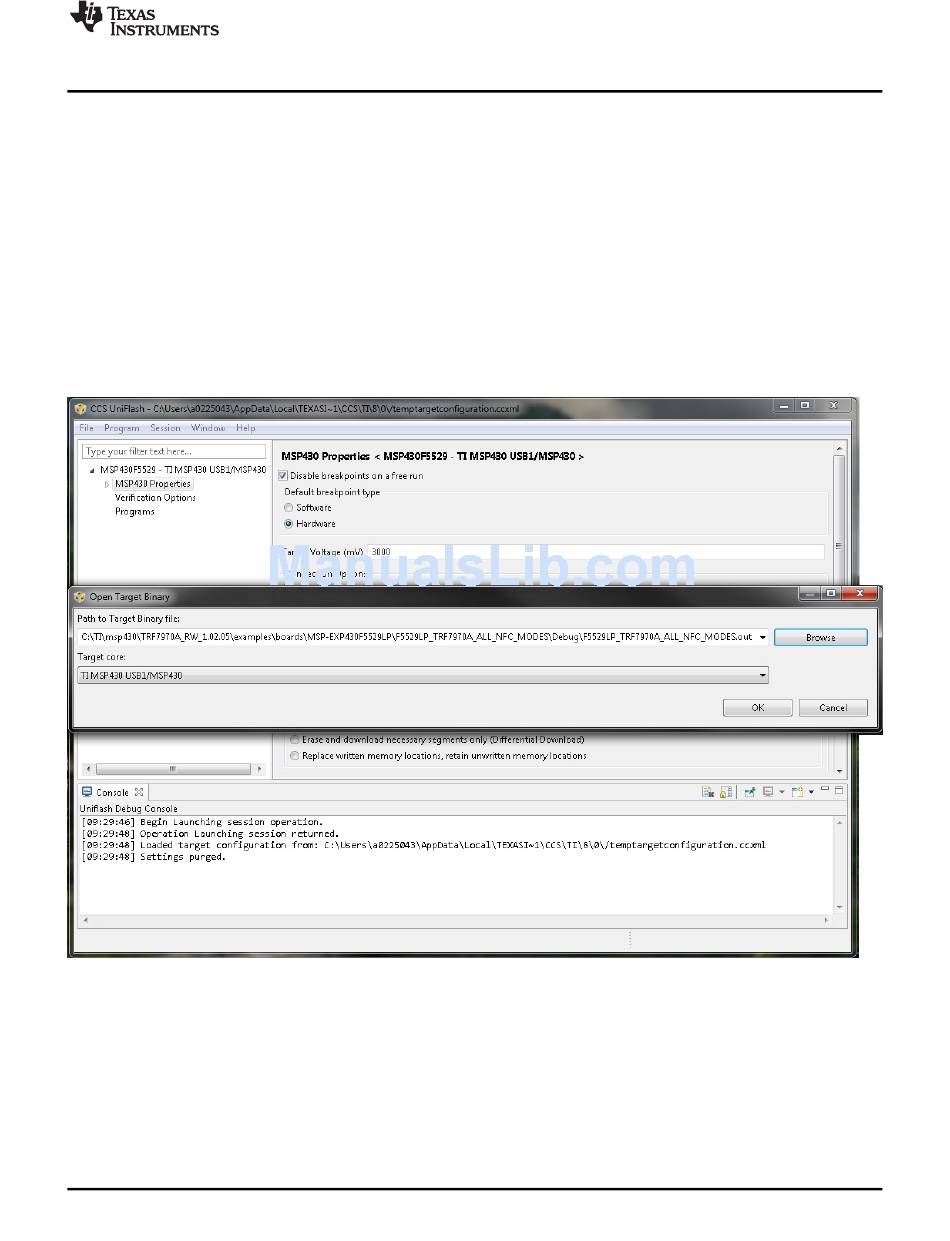

Figure 2. Selecting .out File in UniFlash
Copyright © 2016, Texas Instruments Incorporated
Figure
2).
NFCLink Standalone Getting Started
Getting Started
5
