TI NFC Tool GUI
Figure 12
shows correct and incorrect presentation of a NFC enabled phone to the BoosterPack plug-in
module. The antennas on NFC enabled phones vary based on phone model. Typically, a good point of
reference is near the phone battery for most models. Most Android phones need to be unlocked for NFC
communication to occur. By default, NFC-enabled phones do not enable NDEF card emulation.

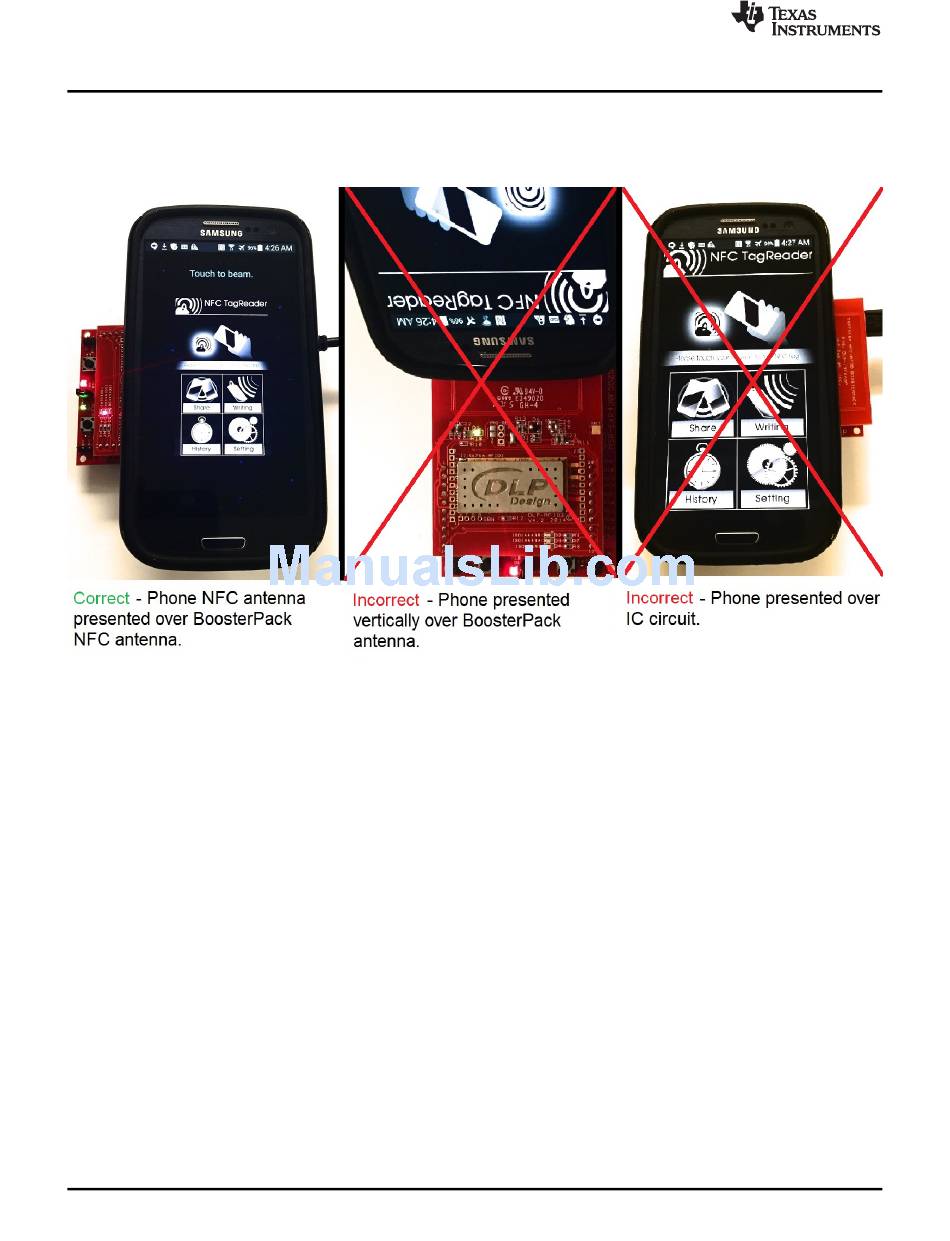

Figure 12. Phone Correct and Incorrect Presentation to BoosterPack™ Plug-in Module
14
NFCLink Standalone Getting Started
Copyright © 2016, Texas Instruments Incorporated
www.ti.com
SLOU452 – December 2016
