TI NFC Tool GUI
3.3.3.1 NFC Configuration Tab
To change between the different CE modes, use the checkboxes to select the desired modes and then
click on Start CE (see
Card Emulation B emulates a Type 4B Tag (ISO/IEC 14443B tag).
3.3.3.2

Card Emulation Tab

When Card Emulation mode is enabled and an NFC device capable of reading the emulated tag is
presented, the Card Emulation tab automatically opens (see
information about the tag type being emulated, the bitrate of the communication, which NFC technology is
being used, the RSSI value, and the emulated Unique Identifier (UID).
The Received Read/Write Cmds pane displays each command being sent to the TRF7970A by the NFC
device. Read and Write commands are both displayed along with details about which files are being read
and how many bytes are read from them.
The Emulated Content pane can be used to emulate a custom message that can be either a Text RTD or
URI RTD. The message length is limited to 248 bytes in the GUI.
When the NFC device is removed, then the Card Emulation tab automatically switches back to the NFC
Configuration tab.
20
NFCLink Standalone Getting Started
Figure 19). Card Emulation A emulates a Type 4A Tag (ISO/IEC 14443A tag) and

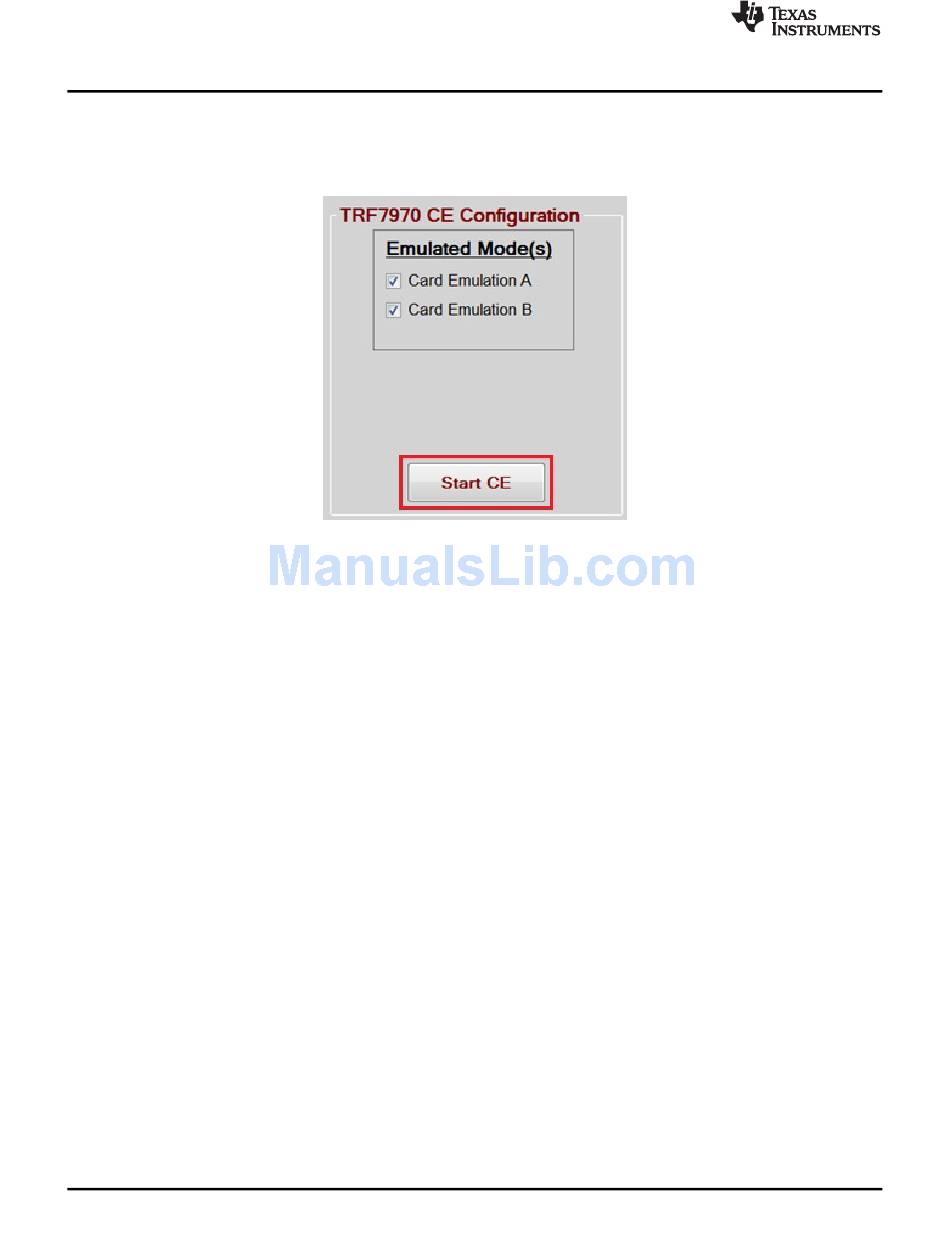

Figure 19. NFC Configuration Tab – CE Configuration
Copyright © 2016, Texas Instruments Incorporated
Figure 20). The CE Status pane includes
