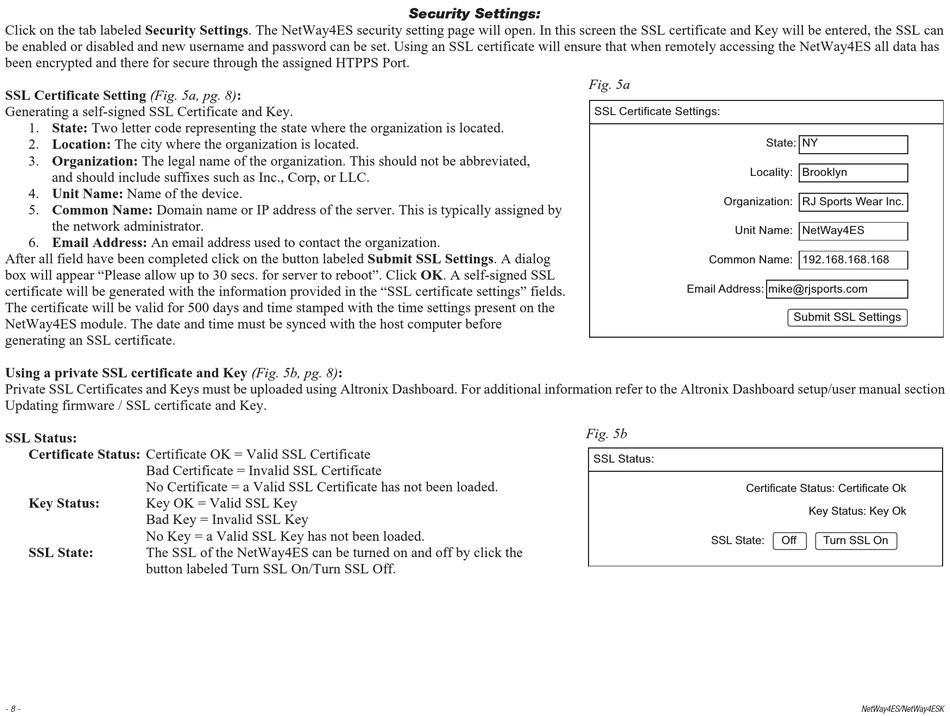

Management Interface; Security Settings - Altronix NetWay4ES Installation Manual

Click on the tab labeled Security Settings. The NetWay4ES security setting page will open. In this screen the SSL certificate and Key will be entered, the SSL can
be enabled or disabled and new username and password can be set. Using an SSL certificate will ensure that when remotely accessing the NetWay4ES all data has
been encrypted and there for secure through the assigned HTPPS Port.
SSL Certificate Setting (Fig. 5a, pg. 8):
Generating a self-signed SSL Certificate and Key.
1. State: Two letter code representing the state where the organization is located.
2. Location: The city where the organization is located.
3. Organization: The legal name of the organization. This should not be abbreviated,
and should include suffixes such as Inc., Corp, or LLC.
4. Unit Name: Name of the device.
5. Common Name: Domain name or IP address of the server. This is typically assigned by
the network administrator.
6. Email Address: An email address used to contact the organization.
After all field have been completed click on the button labeled Submit SSL Settings. A dialog
box will appear "Please allow up to 30 secs. for server to reboot". Click OK. A self-signed SSL
certificate will be generated with the information provided in the "SSL certificate settings" fields.
The certificate will be valid for 500 days and time stamped with the time settings present on the
NetWay4ES module. The date and time must be synced with the host computer before
generating an SSL certificate.
Using a private SSL certificate and Key (Fig. 5b, pg. 8):
Status
Private SSL Certificates and Keys must be uploaded using Altronix Dashboard. For additional information refer to the Altronix Dashboard setup/user manual section
NetWay4ES
Updating firmware / SSL certificate and Key.
Site ID: RJ Sports Wear
SSL Status:
Certificate Status: Certificate OK = Valid SSL Certificate
SSL Certificate Settings:
Bad Certificate = Invalid SSL Certificate
No Certificate = a Valid SSL Certificate has not been loaded.
Key Status: Key OK = Valid SSL Key
Bad Key = Invalid SSL Key
No Key = a Valid SSL Key has not been loaded.
SSL State: The SSL of the NetWay4ES can be turned on and off by click the
button labeled Turn SSL On/Turn SSL Off.
- 8 -

Security Settings:

Setup Network Settings
State: NY
Brooklyn
Locality:
Organization: RJ Sports Wear Inc.
Unit Name: NetWay4ES
Common Name: 192.168.168.168
Email Address: mike@rjsports.com
Submit SSL Settings
Status
NetWay4ES
Site ID: RJ Sports Wear
Fig. 5a
SSL Certificate Settings:

Management Interface

®
Security Settings Events Log
Fig. 5b
SSL Status:
Change Username and Password:
Setup Network Settings
State: NY
Locality: Brooklyn
Organization: RJ Sports Wear Inc.
Unit Name: NetWay4ES
Common Name: 192.168.168.168
Email Address: mike@rjsports.com
Submit SSL Settings
Security Settings
Friday, Jul 31 2015 [9:10 am]
Certificate Status: Certificate Ok
Key Status: Key Ok
SSL State: Off Turn SSL On
Username: RJsports
Password:
******
Confirm Password:
******
Save Username and Password
Man
®
Security Settings Events L
v1.99.22
NetWay4ES/NetWay4ESK
