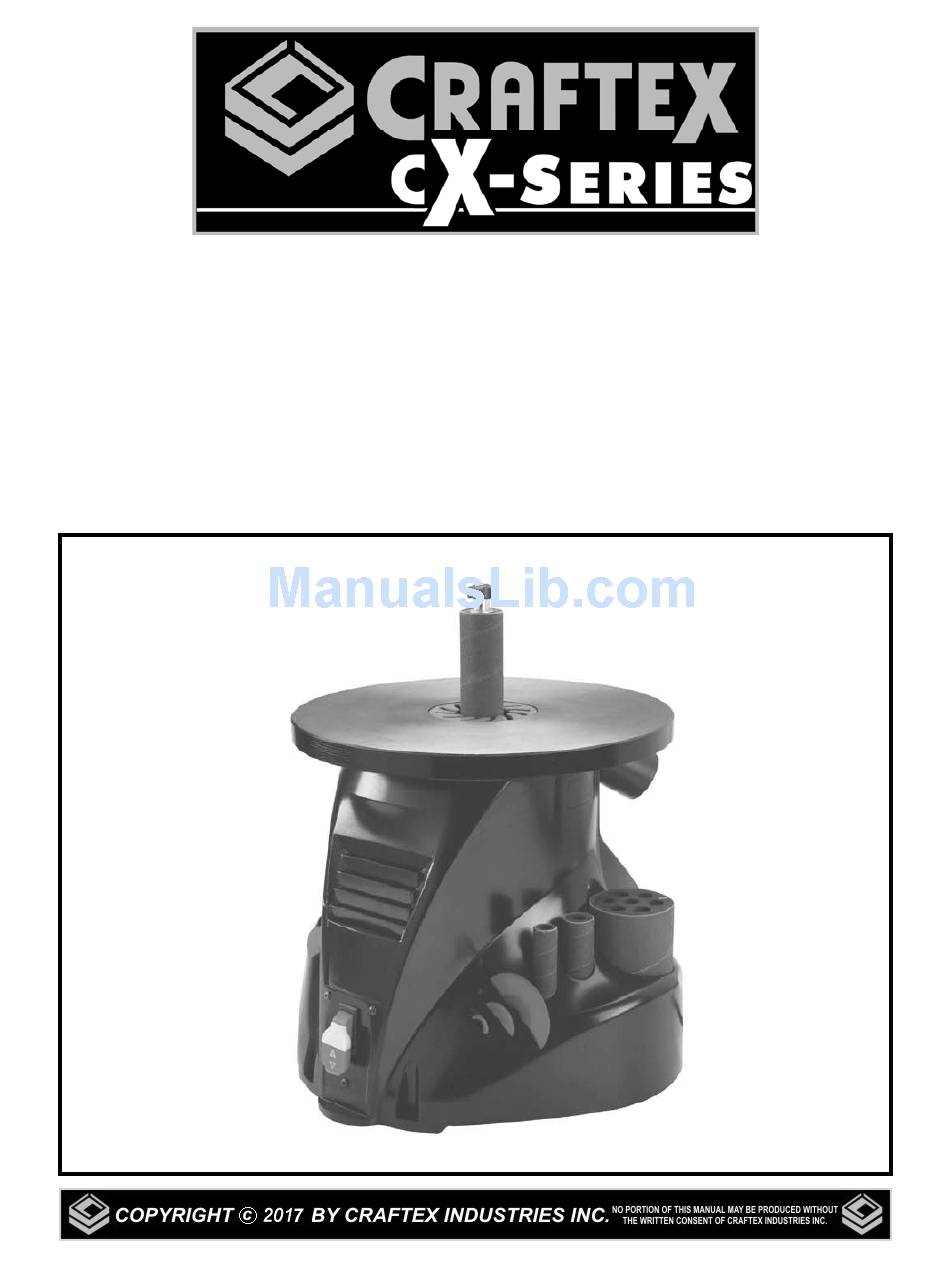

- Page 1 MODEL CX508 14" OSCILLATING SPINDLE SANDER USER MANUAL Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions..................3 Specific Safety Instructions ..................4 CX508 Features...................... 5 Physical Features ....................6 Unpacking ....................... 7 Workbench Load..................... 7 Clean Up......................... 7 Proper Grounding ....................8 Mounting On A Workbench..................9 Switch Disabling Key ....................9 Sanding Drum/Sleeve Installation ................ -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS FOR MACHINES Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the user manual and practice safe usage procedures at all times. ALWAYS read and understand the NEVER leave a tool unattended while it user manual before operating the is in operation. -
Page 4: Specific Safety Instructions
CX508 – 14" OSCILLATING SPINDLE SANDER SPECIFIC SAFETY INSTRUCTIONS Always inspect the stock for any nails, Make sure before making staples, knots other adjustments, the switch is in the “OFF” imperfections before sanding. position and the cord is un-plugged. For the protection of your eyes, always... -
Page 5: Cx508 Features
CX508 a 14" Oscillating Spindle Sander. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. The CX508 is a professional tool and like all power tools, proper care and safety procedures should be adhered to. -
Page 6: Physical Features

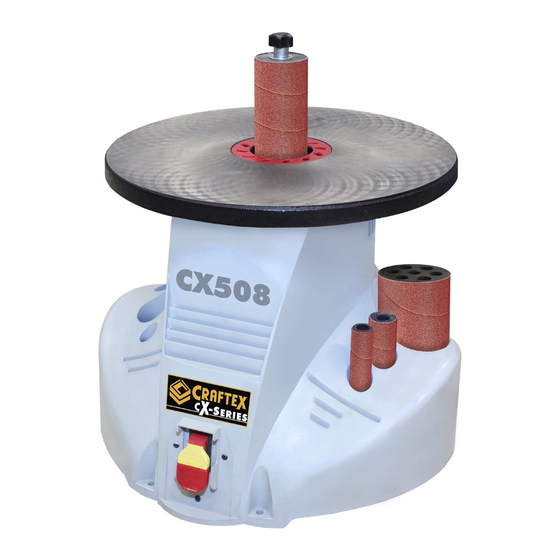

PHYSICAL FEATURES Spindle Lock Knob Table Insert Sanding Drum Work Table Sanding Sleeve Dust Port Extra Sanding Drums & Sleeves Removable Extra Table Inserts ON/OFF Switch... -
Page 7: Unpacking
WORKBENCH LOAD CX508 sander is not very heavy. If using a workbench, make sure to place the sander on a workbench that has the capacity to support the weight of the CX508 sander. -
Page 8: Proper Grounding
It is strongly recommended not to use Grounding provides path least extension cords with your CX508. Always resistance for electric current to reduce the try to position your machine close to the risk of electric shock. power source so that you do not need to use extension cords. -
Page 9: Mounting Ona Workbench
Figure-3 Direct Mount washers and hex nuts are used to secure the sander to the workbench. See figure-2. SWITCH DISABLING KEY The CX508 features a switch disabling key which prevents from unauthorized use. Figure-2 Through Mount Figure-4 Switch disabling key removed... -
Page 10: Sanding Drum/Sleeve Installation
SANDING DRUM/SLEEVE TEST RUN INSTALLATION Once you have mounted your machine, it is then time for a test run to make sure that To install the sanding drum and sleeve: the machine works properly and is ready for operation. Make sure the cord is disconnected from the power source. -
Page 11: Sanding
SANDING CLEANING To sand with the CX508. Wipe off the sawdust built up from the table surface and vacuum the dust from the Turn the sander ON and allow it to reach motor fan area. full speed. Wipe or vacuum out any dust particles from... -
Page 12: Parts Diagram
CX508 PARTS DIAGRAM... -
Page 13: Parts List
CX508 PARTS LIST... -
Page 14: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
