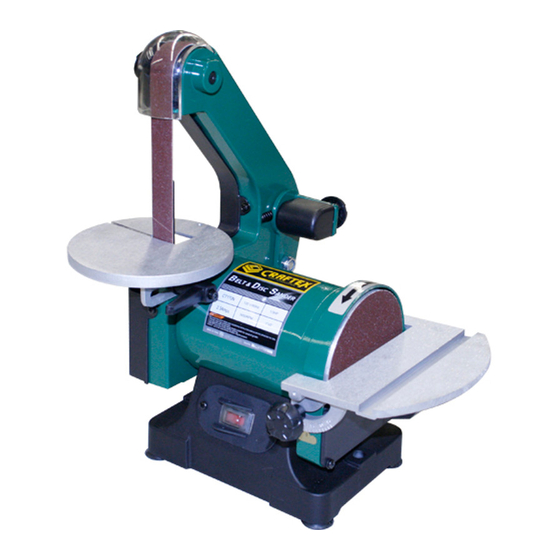

1”x30” belt & 5” disc sander

Advertisement

Quick Links

CT170N
1"x30" BELT & 5" DISC SANDER
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT170N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Craftex CT170N

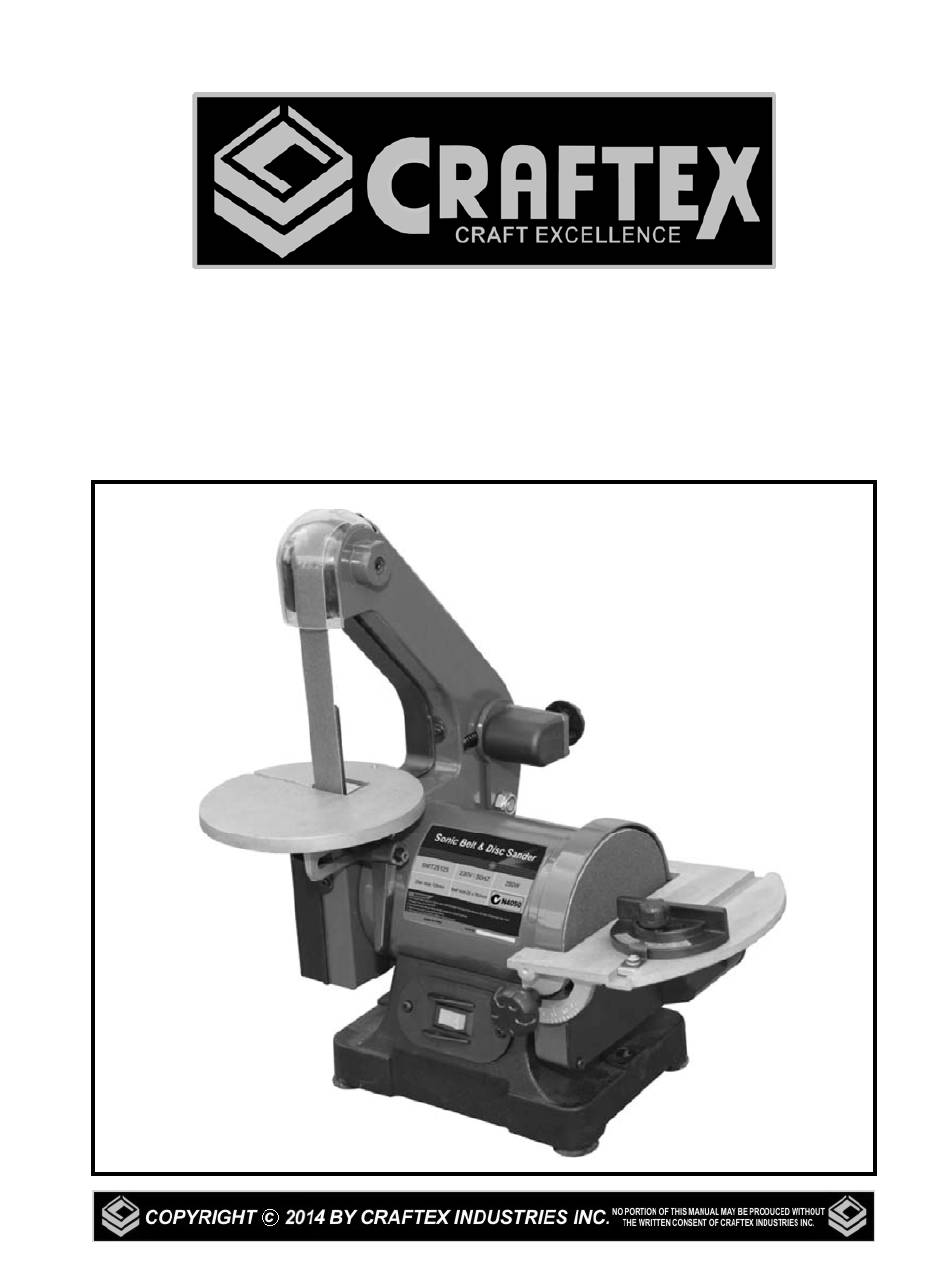

  • Page 1 CT170N 1”x30” BELT & 5” DISC SANDER User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Safety Instructions for Machines ............... 3 Specific Safety Instructions..................4 CT170N Features ....................5 Physical Features ....................6 Proper Grounding ....................7 Un-Packing ......................8 Sanding Belt Table....................8 Dust Chute......................8 Sanding Disc Table....................9 Belt Tracking ......................
  • Page 3: General Safety Instructions For Machines

    GENERAL SAFETY INSTRUCTIONS FOR MACHINES Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. ALWAYS read and understand the NEVER leave a tool unattended while it user manual before operating the is in operation.
  • Page 4: Specific Safety Instructions

    CT170N – 1”x30” BELT & 5” DISC SANDER SPECIFIC SAFETY INSTRUCTIONS MAKE SURE the sander is connected ALWAYS wear a dust mask and safety to the matched and specific power glasses while operating the sander. The source. tiny dust particles produced by the...
  • Page 5: Ct170N Features

    As part of the growing line of Craftex woodworking equipment, we are proud to offer the CT170N, a 1” x 30” Belt and 5” Disc Sander. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. The C170N is a professional tool and like all power tools, proper care and safety procedures should be adhered to.
  • Page 6: Physical Features

    CT170N – 1”x30” BELT & 5” DISC SANDER PHYSICAL FEATURES...
  • Page 7: Proper Grounding

    It is strongly recommended not to use resistance for electric current to reduce the extension cords with your CT170N. Always risk of electric shock. try to position your machine close to the power source so that you do not need to Make sure the cord is plugged into a use extension cords.
  • Page 8: Unpacking

    Some of the parts come preassembled on the machine. SANDING BELT TABLE The CT170N is equipped with a tilting table secured by a lock lever. To install the table: Figure-3 Sanding belt dust port with side...
  • Page 9: Sanding Disc Table

    Figure-4 Installing sanding disc dust port SANDING DISC TABLE CT170N is provided with a work table for disc sanding operation. To install the sanding disc table: Figure-6 Belt Tracking adjustment knob...
  • Page 10: Upper Guard

    UPPER GUARD Install the upper bracket to the belt sanding arm and secure it with the lock knob as shown in figure-8. Figure-7 Adjusting the belt tracking Once the belt is in the center of the rollers, stop turning the adjustment knob and the disc.
  • Page 11: Test Run

    TEST RUN Once you have assembled the machine it is Loosen the two hex screws securing the then time to do a test run and see that the platen to the sander frame. machine powers up and runs properly. Adjust the platen so that it is almost tools objects used...
  • Page 12: Sanding Belt Replacement

    upper guard and the side cover. See figure- Figure-10 Squaring table to the belt Figure-12 Removing the side cover The middle roller features spring at the back and can be pushed towards the table. To remove the belt, hold the adjusting shaft guard and apply moderate pressure just to loosen the belt tension and push it towards the table.
  • Page 13: Sanding Disc Replacement

    MITER GAUGE remove your hand and the let the adjusting shaft guard to come in its normal position CT170N is provided with a miter gauge and and tension the belt. can be used on the disc table. Perform the belt tracking adjustment and The miter gauge head can be set anywhere re-install the cover and the table.
  • Page 15: Parts List

    CT170N PARTS LIST DESCRIPTION DESCRIPTION SPEC SPEC QTY NO QTY NO DESCRIPTION DESCRIPTION SPEC SPEC Philips screw +flat Philips screw +flat M6x18 M6x18 Spring washer Spring washer washer assy washer assy Rubber foot Rubber foot Bearing Bearing 6202 6202 Philips screw +flat...
  • Page 16 DESCRIPTION SPEC Adjusting knob Philips screw ST4.2x10 Spring Column Pin φ3x20 Adjusting shaft Adjusting springⅡ Big flat washer Split washer Sanding Disc Cover Pointing Arrow Outer tooth locking washer Philips screw M4x6 Mitre Gauge Handle Hex knob Mitre Gauge Disc Table Flat washer Table locking knob Disc Paper 80#...
  • Page 17: Warranty

    This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
