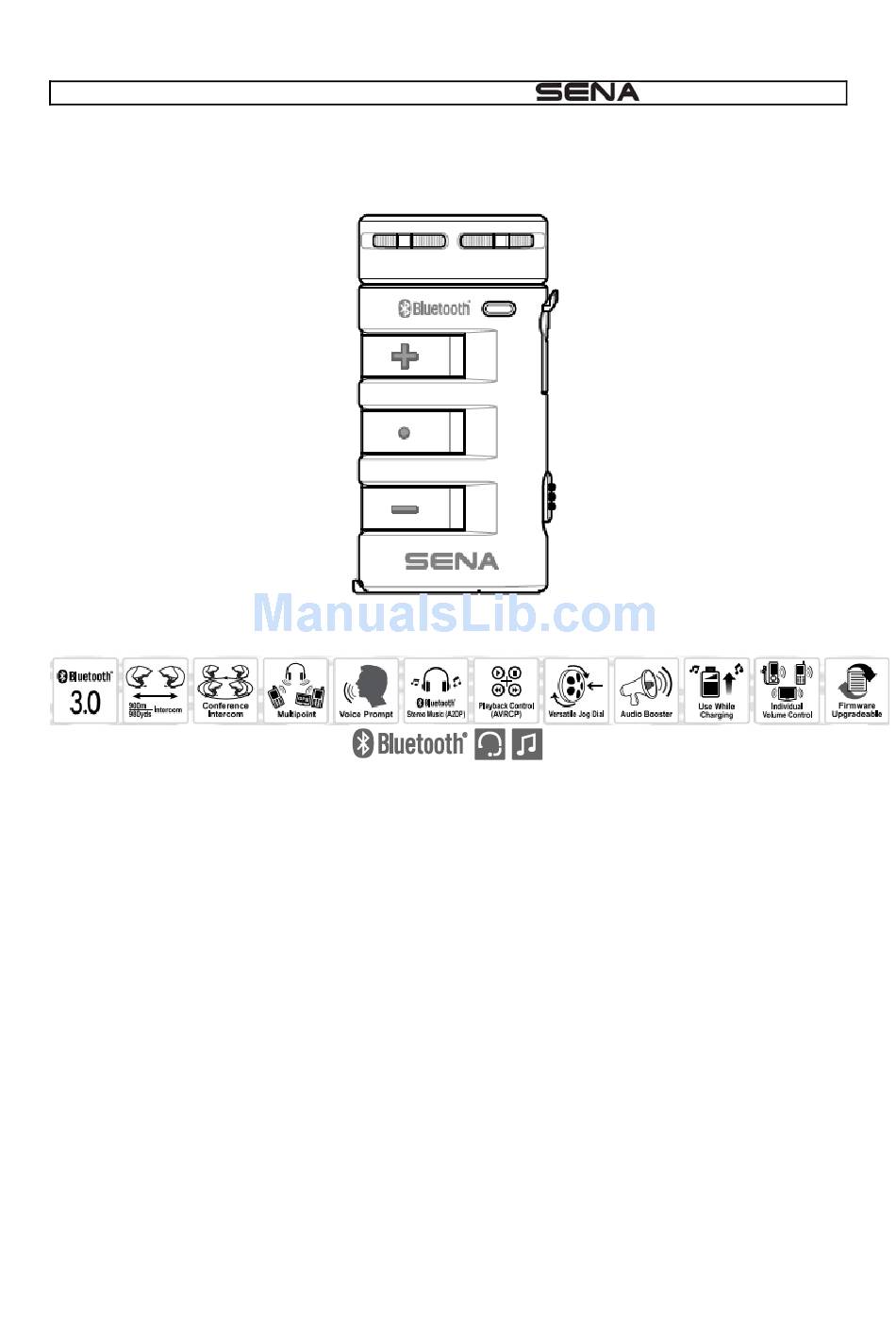

  • Page 1 | Bluetooth Mic & Intercom ® Bluetooth Mic & Intercom SENA www.sena.com User’s Guide...
  • Page 2 Sena Technologies Inc. reserves the right to make any changes and improvements to its product without prior notice. Sena™ is a trademark of Sena Technologies Inc. or its subsidiaries in the USA and other countries. SMH10™, SMH10R™, SMH5™, SMH5-FM™, SPH10™, EXPAND™, SPH10H™, SPH10H-FM™, ®...

  • Page 3: Table Of Contents

    | Bluetooth Mic & Intercom CONTENTS 1. INTRODUCTION 2. PACKAGE CONTENTS 3. GETTING STARTED 3.1 Installing the Bluetooth Mic & Intercom 3.1.1 Installing on the Armband 3.1.2 Installing on the Collar Clip 3.2 Connecting Your Headphones 3.3 Powering On/Off 3.4 Voice Prompt 3.5 Volume Adjustment 3.6 Using Internal/External Microphone 3.7 Function Priority...
  • Page 4 8.2 Speed Dialing 9. INTERCOM 9.1 Pairing with Other Bluetooth Mic & Intercom for Intercom Conversation 9.2 Pairing with Other Sena Headset Models for Intercom Conversation 9.3 Two-way Intercom 9.3.1 Start and End Two-way Intercom 9.3.2 Intercom and Mobile Phone Call 9.4 Three-way Conference Intercom...
  • Page 5 | Bluetooth Mic & Intercom FCC RF Exposure Statement FCC Caution CE Declaration of Conformity Industry Canada Statement Bluetooth License WEEE (Waste Electrical and Electronic Equipment ) SAFETY INFORMATION Product Storage and Management Product Use Battery PRODUCT WARRANTY AND DISCLAIMER Limited Warranty Warranty Exclusions Reasons for Limited Liabilities...

  • Page 6: Introduction

    | Bluetooth Mic & Intercom 1. INTRODUCTION Thank you for choosing the Sena Bluetooth Mic & Intercom. The Sena Bluetooth Mic & Intercom is an ultra-slim, light weight microphone that allows users to make an intercom call. It may function as a microphone when paired with the Sena Bluetooth Action Camera or Sena Bluetooth Audio Pack for GoPro®.
  • Page 7 | Bluetooth Mic & Intercom * in open terrain Key Specifications: ● Bluetooth 3.0 ● Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP)

  • Page 8: Package Contents

    | Bluetooth Mic & Intercom 2. PACKAGE CONTENTS Bluetooth Mic & Intercom Armband Collar Clip...
  • Page 9 luetooth Mic & Intercom Micro ophone Win dscreens USB Po ower & Data Cable Note: The pac ckage does n not include tereo headph hones. Howe ever, it is opt tional to use stereo head dphones with h a built-in n microphone for the inte rcom functio...

  • Page 10: Installing On The Collar Clip

    | Bluetooth Mic & Intercom 3.1.2 Installing on the Collar Clip 1. Attach the collar clip on the back of the Bluetooth Mic along the guide rail. 2. Attach the Bluetooth Mic on your collar by the clip. 3. Adjust the direction of the microphone to your mouth by rotating the Bluetooth Microphone. 3.2 Connecting Your Headphones The Bluetooth Mic does not have internal speakers.

  • Page 11: Powering On/Off

    | Bluetooth Mic & Intercom Note: ● You can control all the functions of the Bluetooth Mic by your headphones if it has the controller for an Android phone. ● You can play/pause the music, or start/end the intercom by your headphones if it has the controller for an iPhone.

  • Page 12: Using Internal/External Microphone

    | Bluetooth Mic & Intercom you hear Bluetooth MP3 music. So you can always maintain the preferred optimum volume level for each audio source. 3.6 Using Internal/External Microphone (factory default: internal microphone) Users may use either built-in microphone of the Bluetooth Mic (internal microphone) or the microphone of a connected pair of headphones (external microphone).

  • Page 13: Low Battery Warning

    | Bluetooth Mic & Intercom 3.9 Low Battery Warning When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-toned triple beeps and a voice prompt, “Low battery”. 3.10 Checking the Battery Level You can check the battery level in two different ways when the Bluetooth Mic is powering on.
  • Page 14 | Bluetooth Mic & Intercom...

  • Page 15: Bluetooth Mic & Intercom Configuration Setting

    | Bluetooth Mic & Intercom 4. BLUETOOTH MIC & INTERCOM CONFIGURATION SETTING You can set the configuration of the Bluetooth Mic by the voice menu instruction as below. 1. To enter into voice configuration menu, press and hold the Center Button for 12 seconds until the LED turns solid blue and you hear high toned double beeps.
  • Page 16 luetooth Mic & Intercom 4.1 Mo obile Phon e Pairing Voice P Prompt “P hone pairin g” Factory y Default To go in nto mobile ph hone pairing mode, tap t the (+) Butto n or the (-) B Button until y you hear a v voice prompt “Phone...

  • Page 17: Phone Selective Pairing

    | Bluetooth Mic & Intercom Factory Default To go into multipoint pairing mode, tap the (+) Button or the (-) Button until you hear a voice prompt, “Multipoint pairing”. Please refer to section 5.2 for details on multipoint pairing. If you tap the (+) or (-) Button, you can exit from the multipoint pairing mode.

  • Page 18: Enabling/Disabling Voice Prompts

    Note: 1. You can assign up to 3 phone numbers for speed dial. 2. You can assign phone numbers for speed dialing by using the Sena Device Manager software. For more information, visit the Sena Bluetooth web site at www.sena.com.

  • Page 19: Auto Gain Control

    Auto gain control activates when the Bluetooth Mic connects to the Sena Bluetooth Audio Pack or the Sena PRISM. It is useful when you move a lot wearing the Bluetooth Mic from the recording device. It is useful when you move a lot while wearing the Bluetooth Mic with a recording device.

  • Page 20: Exit Voice Configuration Menu

    | Bluetooth Mic & Intercom Factory Default Tap the Center Button Execute To restore factory default settings on the Bluetooth Mic, tap the (+) Button or the (-) Button until you hear a voice prompt, “Factory reset”. Tap the Center Button to confirm. The Bluetooth Mic powers off with a voice prompt, “Headset reset, goodbye”...

  • Page 21: Pairing The Bluetooth Mic & Intercom With Bluetooth Devices

    “Phone pairing”. Search for Bluetooth device on your mobile phone. Select the Sena Bluetooth Mic in the list of the devices detected on the mobile phone. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.

  • Page 22: Bluetooth Stereo Device Pairing

    3. If you want to pair a second mobile phone, search for the Bluetooth device on your mobile phone, and select the Sena Bluetooth Mic in the list of the devices detected on the mobile phone. 4. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.

  • Page 23: Phone Selective Pairing: Hfp For Phone Call Only

    | Bluetooth Mic & Intercom STEREO If you have a MP3 stereo music phone such as a smartphone, sometimes you may need to selectively use the Bluetooth Mic for A2DP stereo music only or for mobile phone handsfree only. This instruction is for advanced users who want to pair the Bluetooth Mic to their smartphones only with one selective profile: A2DP stereo for music or HFP for phone call.

  • Page 24: Stereo Music

    | Bluetooth Mic & Intercom 7. STEREO MUSIC You can listen to stereo music from your Bluetooth wireless audio device. The Bluetooth audio device must be paired with the Bluetooth Mic by following the “Bluetooth Stereo Device Pairing” procedures described in the 5.3 chapter. The Bluetooth Mic supports the Audio/Video Remote Control Profile (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the Bluetooth Mic to remotely control music playback.

  • Page 25: Speed Dialing

    | Bluetooth Mic & Intercom Note: If you are using a multipoint mobile phone connection and you have an incoming call from the second phone during the call of the first phone, then you may still receive the call from second phone. In this case, the call from the first phone is in waiting mode.

  • Page 26: Intercom

    | Bluetooth Mic & Intercom Press the Center Button for 2 seconds Press the Center Button for 2 seconds Reject Use phone keypad Call Press the (+) Button for 3 seconds Speed Dial Press the Center Button for 3 seconds Voice Command Mobile Phone Call Button Operations If you have a second mobile phone connected with the Bluetooth Mic by multipoint connection, you can...

  • Page 27: Pairing With Other Sena Headset Models For Intercom Conversation

    9.2 Pairing with Other Sena Headset Models for Intercom Conversation The Bluetooth Mic can be paired with all other Sena headset models such as the SMH10, SPH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models.

  • Page 28: Start And End Two-Way Intercom

    | Bluetooth Mic & Intercom 9.3.1 Start and End Two-way Intercom 1. You can start a one-on-one intercom conversation with any intercom friend by tapping the Center Button: Single tapping to intercom with the first intercom friend, double tapping with the second intercom friend, or triple tapping with the third intercom friend.

  • Page 29: Three-Way Conference Intercom

    (A). The second intercom friend (C) may join the intercom by making an intercom call to you (A). Now you (A) and two SMH10 intercom friends (B & C) are having a three-way conference intercom.

  • Page 30: End Three-Way Intercom

    | Bluetooth Mic & Intercom 9.4.2 End Three-way Intercom When you are a member of an active three-way conference intercom, you can completely terminate the conference intercom or just disconnect an intercom connection with one of your active intercom friends. Press the Center Button for 1 second until you hear a beep to terminate three-way conference intercom completely.

  • Page 31: Four-Way Conference Intercom

    | Bluetooth Mic & Intercom phone call Tap the Center Button End intercom first Press the Center Button for 2“ End phone call first Wait for the called person to end the call Start & End Three-way Conference Phone Call 9.5 Four-way Conference Intercom 9.5.1 Start Four-way Intercom You can have four-way conference intercom with three other Bluetooth Mic users by adding one more...

  • Page 32: End Four-Way Intercom

    The Bluetooth Mic can be paired with non-Sena Bluetooth headsets for Bluetooth intercom conversation. 1. Turn on the Bluetooth Mic and a non-Sena Bluetooth headset which you want to pair with. 2. Press and hold the Center Button on the Bluetooth Mic for 8 seconds until the blue LED flashes...

  • Page 33: Three-Way Universal Intercom

    Bluetooth h eadsets usin ng the same intercom m connection method as you would b between othe er Sena head dsets. You m may single ta p the Center Button t to begin an intercom co onversation with the firs...
  • Page 34 Mic & Intercom 2. Start an intercom m conversat ion with non n-Sena Blue etooth heads set (B) in yo our intercom m group. For example e, you (A) m may start an intercom co onversation w with non-Se...
  • Page 35 1) three Bl uetooth Mic and one no on-Sena Blu uetooth head dset or 2) tw wo Bluetooth h Mic and tw wo non-Sena Bluetoot th headsets. You may...

  • Page 36: Four-Way Universal Intercom

    Mic & Intercom 4. Now t two Bluetoot th Mic (A & C C) and two n non-Sena Blu uetooth head dsets (B & D D) are connec cted with the four-way y Universal In ntercom. You may y disconnect...

  • Page 37: Music Sharing

    - If the non-Sena headset does not support a multipoint connection then a phone call connection will be unavailable while using the Universal Intercom. - If the non-Sena headset (that has been paired to the Sena headset) is powered on and is automatically connected, then the multipoint connection of the Sena headset will be deactivated.
  • Page 38 Mic & Intercom 13. S SENA BL LUETOO OTH CO ONNECT TION CA ASE STU UDIES Case 1 Bluetoo oth Pairing P Procedure Interc com Pairing ① Interc com Pairing ② Usage • Prism o or Bluetooth Audio Pack:...
  • Page 39 luetooth Mic & Intercom Bluetoo oth Pairing P Procedure Interc com Pairing ① Interc com Pairing ② Mobil le Phone Pa iring ③ Usage • Prism o or Bluetooth Audio Pack: : taking pictu ures, video re ecording with h remote aud •...

  • Page 40: Operation Quick Reference

    | Bluetooth Mic & Intercom 14. OPERATION QUICK REFERENCE Beep Duration Button Description Type Ascending Solid blue 1 sec Center Button Power-on Basic Function beeps + (+) Button Descending Solid red Tapping Center Button Power-off (병합) beeps + (+) Button Tapping (+) Button or (- Volume...

  • Page 41: Certification And Safety Approvals

    | Bluetooth Mic & Intercom 1 sec (+) Button or (- Track (병합) ) Button forward/back CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 42: Industry Canada Statement

    CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 43: Safety Information

    | Bluetooth Mic & Intercom WEEE (Waste Electrical and Electronic Equipment ) The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available.
  • Page 44 | Bluetooth Mic & Intercom ● Do not use the product in high-temperatures or apply heat to the product as this may cause damage, explosion, or fire. ● Keep the product dry and away from water. It may damage the product. ●...

  • Page 45: Product Warranty And Disclaimer

    Here, product warranty extends to the product only. Sena will not be liable for any loss, damage of human life, or loss of property which may result from using the product beyond defective parts or flaws that occur due to problems in manufacture.

  • Page 46: Warranty Exclusions

    Further, Sena will not be liable for any substantial damage not related to the, condition, environment, or malfunction of the product.

  • Page 47: Warranty Service

    SALES AGENTS SHALL NOT EXCEED THE PRICE PAID FOR THE PRODUCT BY THE PURCHASER. Liabilities Disclaimer In addition to damages which may occur due to the use of the product, Sena will not be liable for damages of the product which occur due to the following events.

  • Page 48: Return For Full Refund

    Unless you return the product within 14 days from the purchase date, you will have read and agreed to all the terms and conditions explained above, and Sena will not be liable for any claim for damages related with the product.
  • Page 49 | Bluetooth Mic & Intercom 1.0.0 SENA www.sena.com User's Guide for Firmware v1.0...
