Sena SPH10 User Manual

Bluetooth stereo headset & intercom
Hide thumbs Also See for SPH10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User's Guide
www.senabluetooth.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPH10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sena SPH10

Summary of Contents for Sena SPH10

  • Page 1 User's Guide www.senabluetooth.com...
  • Page 2 Sena. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is ® under license. iPhone, iPod touch are the registered trademark of Apple Inc. Zumo™ is a trademark of Garmin Ltd.

  • Page 3: Table Of Contents

    14.2 End Three-way Intercom ............28 5. VOLUME ADJUSTMENT ..............9 15. FOUR-WAY CONFERENCE INTERCOM ........28 15.1 Start Four-way Intercom ............28 6. PAIRING THE SPH10 WITH BLUETOOTH DEVICES .....10 6.1 Mobile Phone Pairing ...............10 15.2 End Four-way Intercom ............29 6.2 Multipoint Pairing..............10 16.

  • Page 4: Introduction

    • Bluetooth stereo headset for Bluetooth GPS navigations Stereo Headset and Intercom for outdoor sports and • Bluetooth intercom up to 900 meters (980 yards)* activities. With the SPH10, you can call handsfree on • Four-way conference intercom your Bluetooth mobile phone, listen to stereo music or •...

  • Page 5: Package Contents

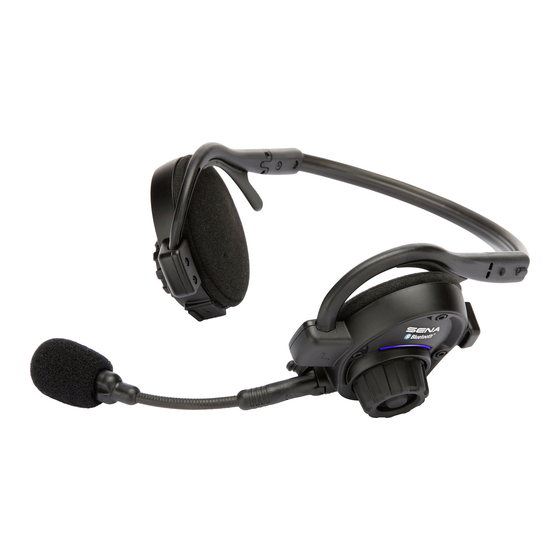

    SPH10 2. PACKAGE CONTENTS • SPH10 Headset Status LED Jog Dial • Answer and end a mobile phone call • Reject an incoming mobile phone call • Start and end intercom conversation • Volume adjustment by rotating • Play and pause Bluetooth stereo device •...

  • Page 6: Wearing The Sph10

    SPH10 • Boom Microphone 3. WEARING THE SPH10 • Mini Microphone 3.1 Microphone Installation Two microphones are included in the package: a long-boom microphone for high noise environment • USB Power & Data Cable and a short microphone for indoor use.

  • Page 7: Placing The Headset On Your Ear

    SPH10 Since SPH10 is mostly exposed on external environment 4. POWERING ON/OFF AND CHARGING where noise prevails, microphone can be selected according to the noise level. For the highly noisy environment, boom-microphone is recommended allowing To power on and off the headset, you don’t need microphone to stay near user’s mouth.

  • Page 8: Low Battery Warning

    SPH10 4.4 Low Battery Warning 5. VOLUME ADJUSTMENT When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid- tone triple beeps and a voice prompt saying “Low You can easily adjust the volume by rotating the Jog battery”.

  • Page 9: Pairing The Sph10 With Bluetooth Devices

    SPH10 2. Search for Bluetooth devices on your mobile 6. PAIRING THE SPH10 WITH BLUETOOTH phone. Select the Sena SPH10 in the list of the DEVICES devices detected on the mobile phone. 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.

  • Page 10: Bluetooth Stereo Device Pairing

    SPH10 2. Within 2 seconds, tap the Phone Button again, then SPH10 is paired with the mobile phone, it is also the LED turns to blue flashing and the beeps turn paired as a stereo music device. to high tone double beeps. You will hear a voice 2.
  • Page 11 “6.1 Mobile Phone Pairing”. paired”. When you do this, the SPH10 thinks the GPS is a mobile 6. If the pairing process is not completed within three phone so you can no longer pair your mobile phone to minutes, the SPH10 will return to stand-by mode.

  • Page 12: Pairing With The Sena Sr10, Bluetooth Two-Way Radio Adapter

    HFP as do most motorcycle specific GPS navigation systems. If you pair the SPH10 with a SR10 by multipoint pairing, the SPH10 is able to have two HFP devices at the same time: mobile phone and Sena SR10. Mobile Phone 1.
  • Page 13 SPH10 The incoming audio from the two-way radio via SR10 is heard in the background while having an intercom conversation or a mobile phone call. You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via...

  • Page 14: Pairing With Selective Profile: A2Dp Stereo Or Handsfree

    SPH10. To clear the LED turns to blue flashing and the beeps turn the pairing list on SPH10, please do a factory reset or to multiple mid-tone beeps. You will hear a voice follow the pairing list clearing procedure described prompt saying “Phone selective pairing”.

  • Page 15: Intercom Pairing

    Intercom Conversation The SPH10 can be paired with up to three other headsets for Bluetooth intercom conversation. 1. Turn on the two SPH10 headsets (A and B) that you would like to pair with each other. Pairing A & B 2.

  • Page 16: Pairing With Other Sena Headset Models For Intercom Conversation

    Served’. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as first intercom friend. The previous You can set the configuration of the SPH10 by the intercom friend becomes second intercom friend, voice menu instruction as below.

  • Page 17: Enabling/Disabling Voice Activated Phone Answering

    SPH10 The voice prompt for each menu item is as below: “Hello” or any other word loudly. This is enabled from the factory but you can disable this. If this mode is (1) VOX phone (4) Delete all pairings disabled, you have to tap the Jog Dial or the Phone Button to answer an incoming call.

  • Page 18: Enabling/Disabling Voice Prompts

    To delete all Bluetooth pairing information of the conversation, it is not terminated by 20 seconds of SPH10, rotate the Jog Dial until you hear a voice silence. After turning SPH10 off and on, you can start prompt, “Delete all pairings”, and tap the Phone intercom by voice again.

  • Page 19: Function Priority

    Tap Phone 10. FUNCTION PRIORITY Rotate Jog Dial Tap Jog Dial Button VOX Phone Enable Disable The SPH10 operates in the following order of priority: VOX Intercom Enable Disable (highest) Mobile phone, Intercom, Voice Prompt Enable Disable Stereo music by audio cable...

  • Page 20: Stereo Music

    SPH10 Profile (AVRCP), so if your Bluetooth audio device 11. STEREO MUSIC also supports the AVRCP, you can use the SPH10 to remotely control music playback. You not only can adjust the volume but also use You can listen to stereo music in two ways: with the...

  • Page 21: Mobile Phone Call Making And Answering

    SPH10 3. To track forward or track back, rotate while pressing 12. MOBILE PHONE CALL MAKING AND the Jog Dial clockwise or counter clockwise. ANSWERING 1. When you have an incoming call, simply tap the Phone Button or the Jog Dial to answer the call.
  • Page 22 SPH10 on the mobile phone keypad. Note: - Tap the Phone Button in stand-by mode to activate 1. If you are using multipoint mobile phone connection the voice dialing of your mobile phone. For this, and you have an incoming call from the second phone...

  • Page 23: Two-Way Intercom

    SPH10 tapping. A double or triple tapping will do nothing 13. TWO-WAY INTERCOM in this case. 13.1 Start and End Two-way Intercom 1. You can start an intercom conversation with one Terminate of any intercom friends by tapping the Jog Dial:...

  • Page 24: Intercom And Gps

    13.3 Intercom and GPS use a two-way radio and SPH10 Bluetooth intercom If you pair a Bluetooth GPS to the SPH10 as simultaneously by using the Sena SR10, a Bluetooth described in 6.3 of this user's guide, you can hear Two-way Radio Adapter, along with the SPH10.

  • Page 25: Three-Way Conference Intercom

    INTERCOM 14.1 Start Three-way Intercom Smart Phone Two-way radio You (A) can have a three-way conference intercom with two other SPH10 friends (B & C) by establishing Wired Mobile Phone Pairing Connection two intercom connections at the same time. While...
  • Page 26 First Friend Second Friend 2. Start an intercom conversation with one of the two 4. Now you (A) and two SPH10 intercom friends (B & friends in your intercom group. For example, you C) are having a three-way conference intercom.

  • Page 27: End Three-Way Intercom

    1. Press the Jog Dial for 1 second until you hear a You can have four-way conference intercom with three beep to terminate three-way conference intercom other SPH10 users by adding one more intercom completely. It terminates both intercom connections participant to the three-way intercom. While you are with (B) and (C).

  • Page 28: End Four-Way Intercom

    SPH10 15.2 End Four-way Intercom 16. THREE-WAY CONFERENCE As same in the case of three-way intercom, you can PHONE CALL WITH INTERCOM completely get out of the four-way conference intercom PARTICIPANT or just disconnect a single intercom connection. 1. Press the Jog Dial for 1 second until you hear a beep to terminate four-way conference intercom.

  • Page 29: Intercom Failure

    In this case, the SPH10 automatically tries to reconnect the intercom every 8 seconds and you will hear high tone double beeps until the intercom is reestablished.

  • Page 30: Reset To Factory Default Settings

    19. RESET TO FACTORY DEFAULT 20. FAULT RESET SETTINGS When the SPH10 is not working properly or is in faulty 1. To restore the SPH10 to factory default settings, status for any reason, you may reset by pushing the press and hold the Phone Button for 12 seconds...

  • Page 31: Case Study

    Case 1 • Zumo 660/665 for GPS voice instruction • iPhone for mobile phone call and stereo music • SPH10 for two-way intercom streaming • Zumo 550 or Zumo 220 for GPS voice instruction • SPH10 for two-way intercom...
  • Page 32 • Feature phone for mobile phone call • Zumo 660/665 for GPS voice instruction and • iPod Touch for stereo music streaming stereo music streaming • Two other SPH10s for three-way conference intercom • SPH10 for two-way intercom Feature Phone Zumo 660/665 Mobile Pairing: 6.1...
  • Page 33 • iPod Touch for stereo music streaming streaming ® • TomTom Rider2 for GPS voice instruction • Sena SR10 for two-way radio, GPS voice instruction, • SPH10 for two-way intercom and radar detector alarm • SPH10 for two-way intercom iPhone...

  • Page 34: Battery Information

    SPH10 BATTERY INFORMATION MAINTENANCE AND CARE The product has an internal, non-removable, The SPH10 should be treated with care and the following suggestions will help you protect your rechargeable battery. Do not attempt to remove warranty coverage. the battery from the device as you may damage 1.

  • Page 35: Disposal

    SPH10 DISPOSAL CERTIFICATION AND SAFETY APPROVALS The crossed-out wheel bin symbol on the product, literature, or packaging FCC Compliance Statement reminds you that all electrical and This device complies with part 15 of the FCC Rules. electronic products, batteries, and...

  • Page 36: Fcc Rf Exposure Statement

    This product is CE marked according to the provisions • Reorient or relocate the receiving antenna. of the R&TTE Directive (99/5/EC). Hereby, Sena • Increase the separation between the equipment declares that this product is in compliance with the and receiver.

  • Page 37: Bluetooth License

    If you do names are those of their respective owners not accept all terms of this agreement, you should The SPH10 is compliant with and adopts the immediately return the product for a full refund. Bluetooth Specification 3.0 and has successfully...
  • Page 38 (including attorney’s fees) and holding damages to or in respect to any person or property Sena harmless for any bodily injuries, harm or death however caused, WHETHER ARISING FROM THE as well as losses or damages in goods, to any Vehicles...

  • Page 39: Two-Year Limited Warranty

    Product; (b) failure of Customer to liability and fully understand its terms and that you adhere to any of Sena’s specifications or instructions; have given up substantial rights by not returning (c) neglect of, abuse of, or accident to, the Product;...

  • Page 40: Limitation Of Liability

    SPH10 Limited warranty service may be obtained by ARISING OUT OF, OR IN CONNECTION WITH THE delivering the Product to Sena or to the international USE OF FURNISHING OF EQUIPMENT, PARTS OR distributor it was purchased through and providing SERVICES HEREUNDER OR THE PERFORMANCE, proof of purchase or receipt date.

  • Page 41: Warning

    SPH10 WARNING Sena informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. If the...
  • Page 42 2.1.0 www.senabluetooth.com User's Guide for Firmware v4.2...
