Install the latching relays inside the power panel as shown in Figure 19. If you install the
controller vertically, use DIN rail stoppers to prevent the units from falling.

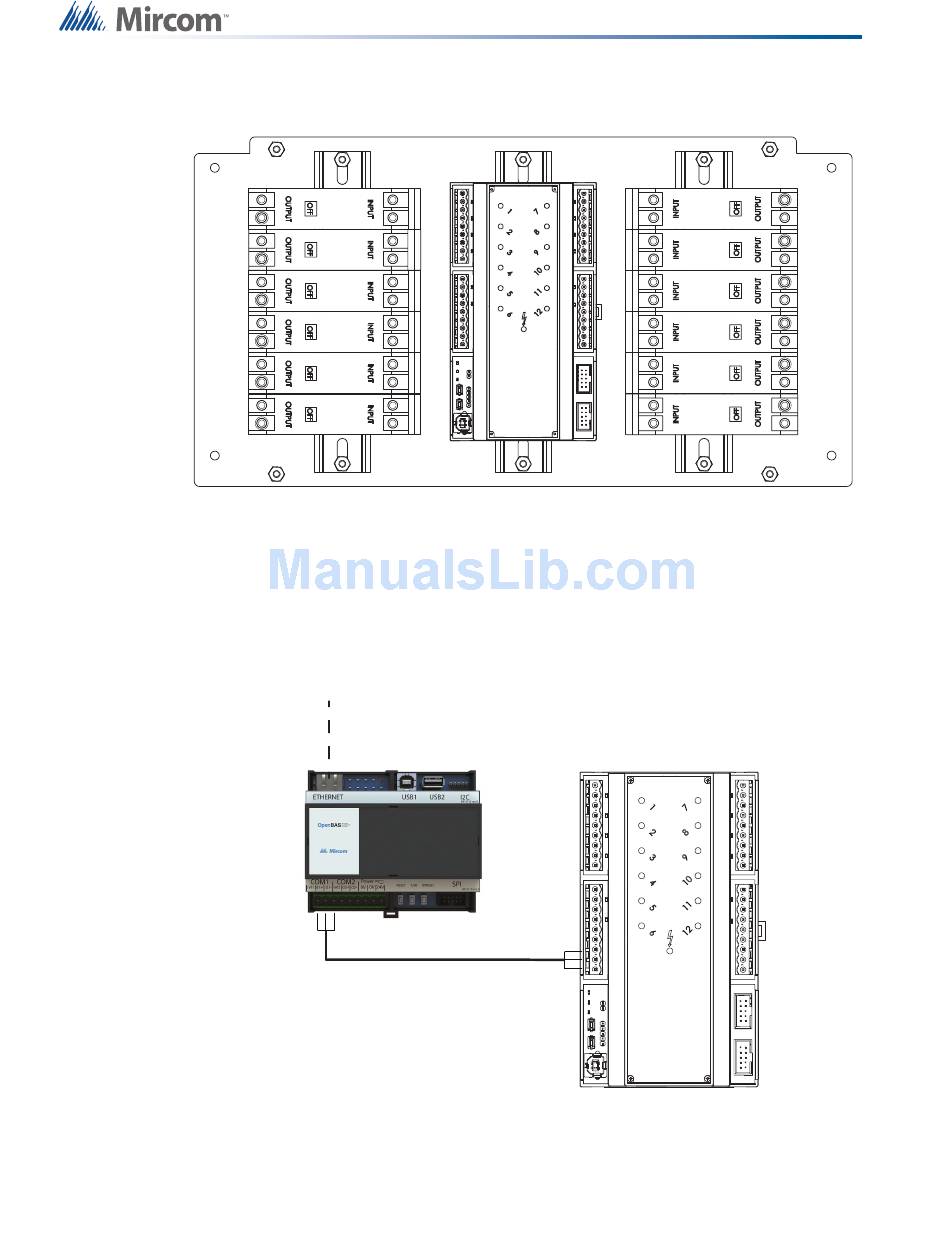

Figure 19 OpenBAS-LC-NX12R with 12 lighting relays
4.7
Adding OpenBAS-LC-NX12R to an Ethernet Network
Connect the RS-485 port of OpenBAS-LC-NX12R to OpenBAS-NWK-ETH3 as shown in
Figure 20. OpenBAS-LC-NX12R and OpenBAS-NWK-ETH3 must be powered separately.
See section 4.8.2 on page 32 for information on the RS-485 port.
Cat 5 cable
Figure 20 Connecting OpenBAS-NWK-ETH3 to OpenBAS-LC-NX12R
30 (40)
OpenBAS-NWK-ETH3
RS-485
OpenBAS-LC-NX12R
Field wiring
