Installation
Mounting clip

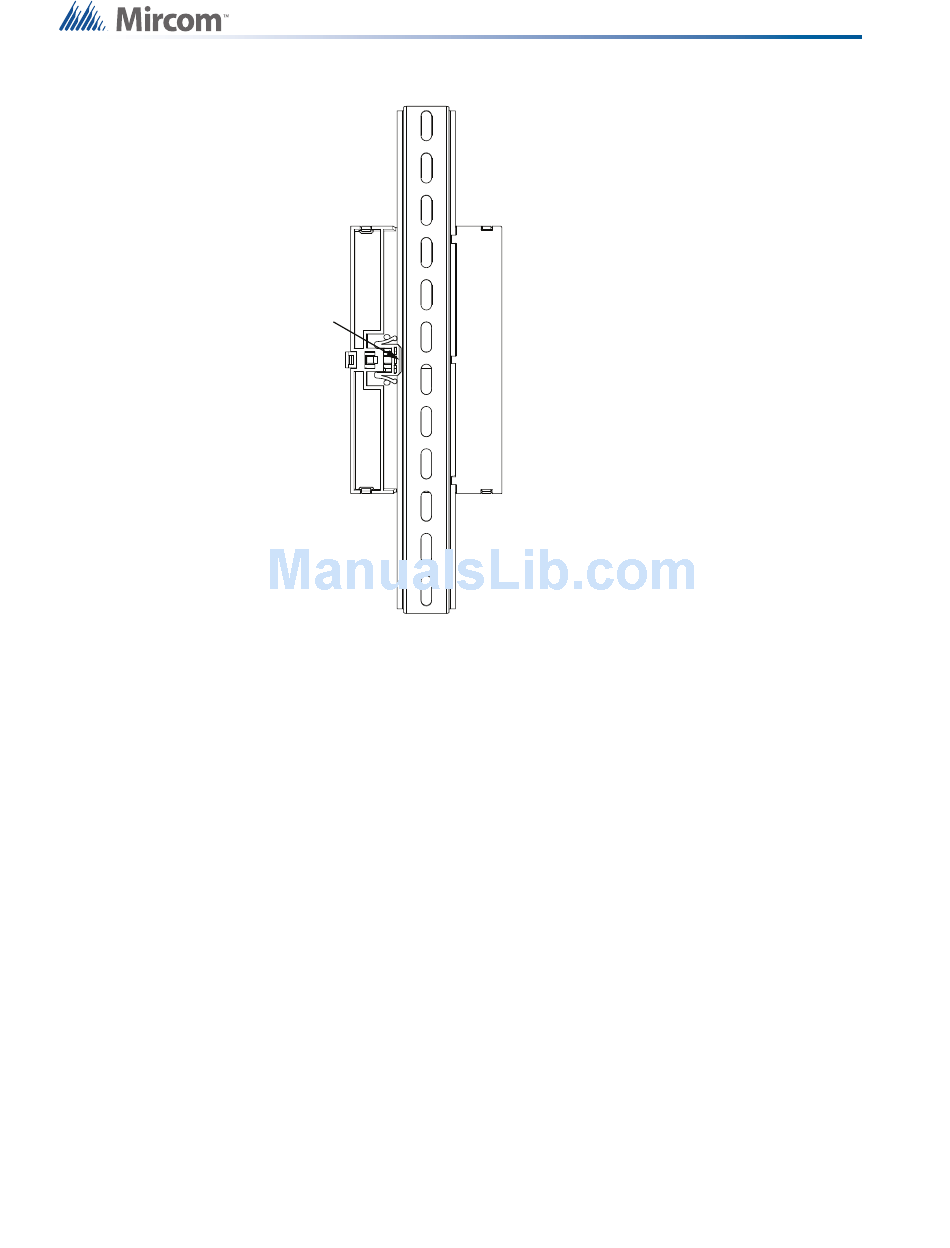

Figure 9
Enclosure mounted on DIN rail (back view)
To remove the enclosure from the DIN rail
•
Pull the mounting clip to release the enclosure from the DIN rail, and carefully pull the
enclosure off the DIN rail.
18 (40)
