Resistive 1000 Ω Temperature Sensor; Table 5 Analog Input Wiring - Mircom OpenBAS-LC-NX12R Installation Manual

Table 4 Analog Input Wiring (Continued)
Type of field device Power source
3 wire transducer with 4-
20 mA or 0-20 mA
output
Connect an external 250
Ω ½ Watt 1% load
resistor in parallel
between the universal
input terminal and 0V to
provide a return path for
the transducer signal
current.
J or K Thermocouples
When using J or K
thermocouples, install a
x200 low offset amplifier.
4.5.3 Resistive 1000 Ω Temperature Sensor
For resistive temperature sensors, the jumper J1 must be shorted. See section 4.4 on
page 22. For all other devices, the jumper must be open.

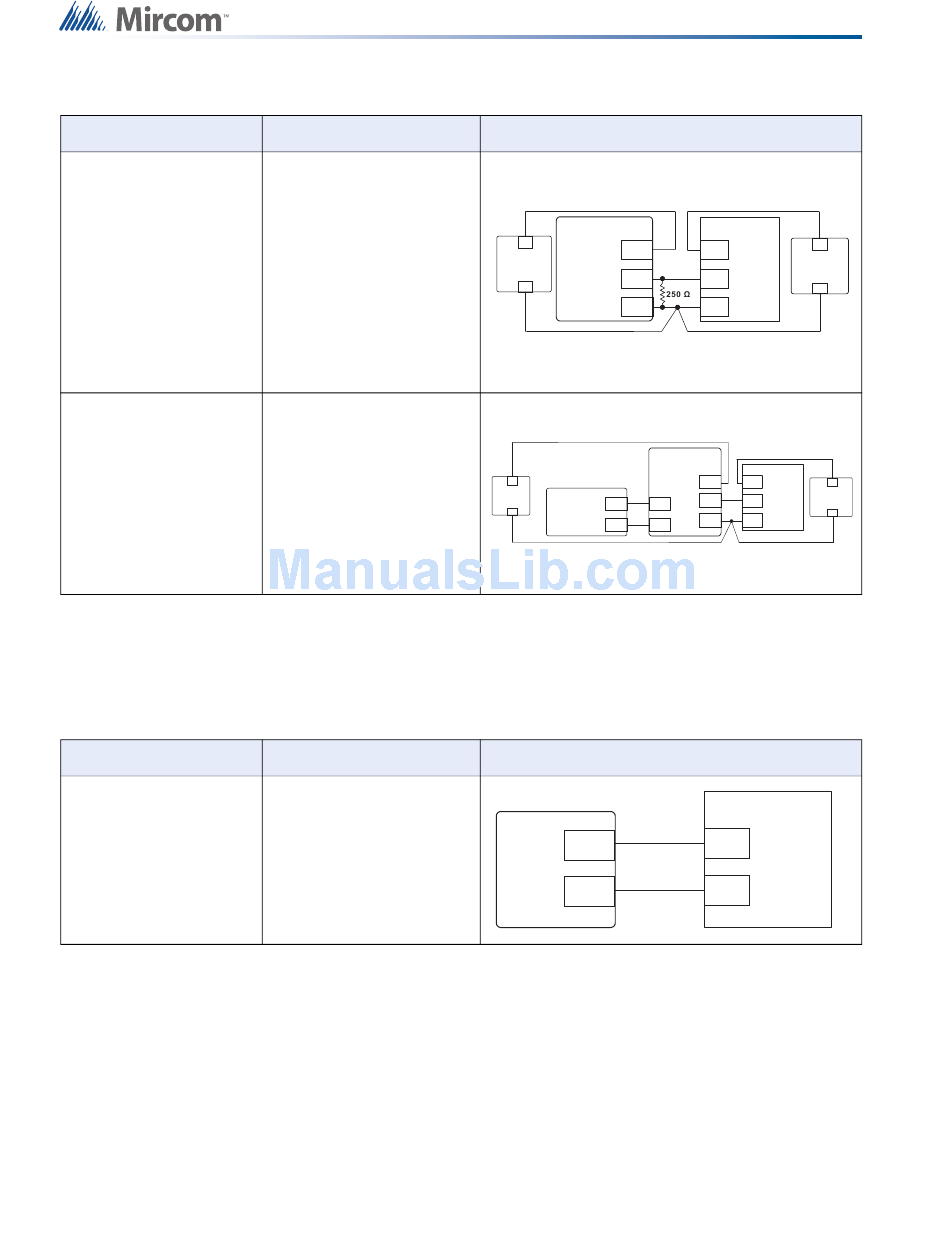

Table 5 Analog Input Wiring

Type of field device Power source
Resistive 1000 Ω 21° C
silicon temperature
sensor
26 (40)
External power supply for
field device (depends on
field device requirements)
and 24 V external power
supply for controller.
Connect the negatives or
commons of both power
supplies to the 0V terminal
of the controller.
External power supply for
field device (depends on
field device requirements)
and 24 V external power
supply for controller.
Connect the negatives or
commons of both power
supplies to the 0V terminal
of the controller.
N/A
Wiring diagram
Field Device
+
+
Power Supply
Signal
-
-
x200
instrumentation
amplifier
+
Power Supply
J or K
+ +
thermocouple
-
- -
Wiring diagram
-
Field
Device
-
Field wiring
Controller
+
24V
24 VAC or VDC
Power Supply
UI1
-
0V
Controller
+ 24V +
24 VAC or VDC
Signal
UI1
Power Supply
-
0V 0V
Controller
UI1
0V
