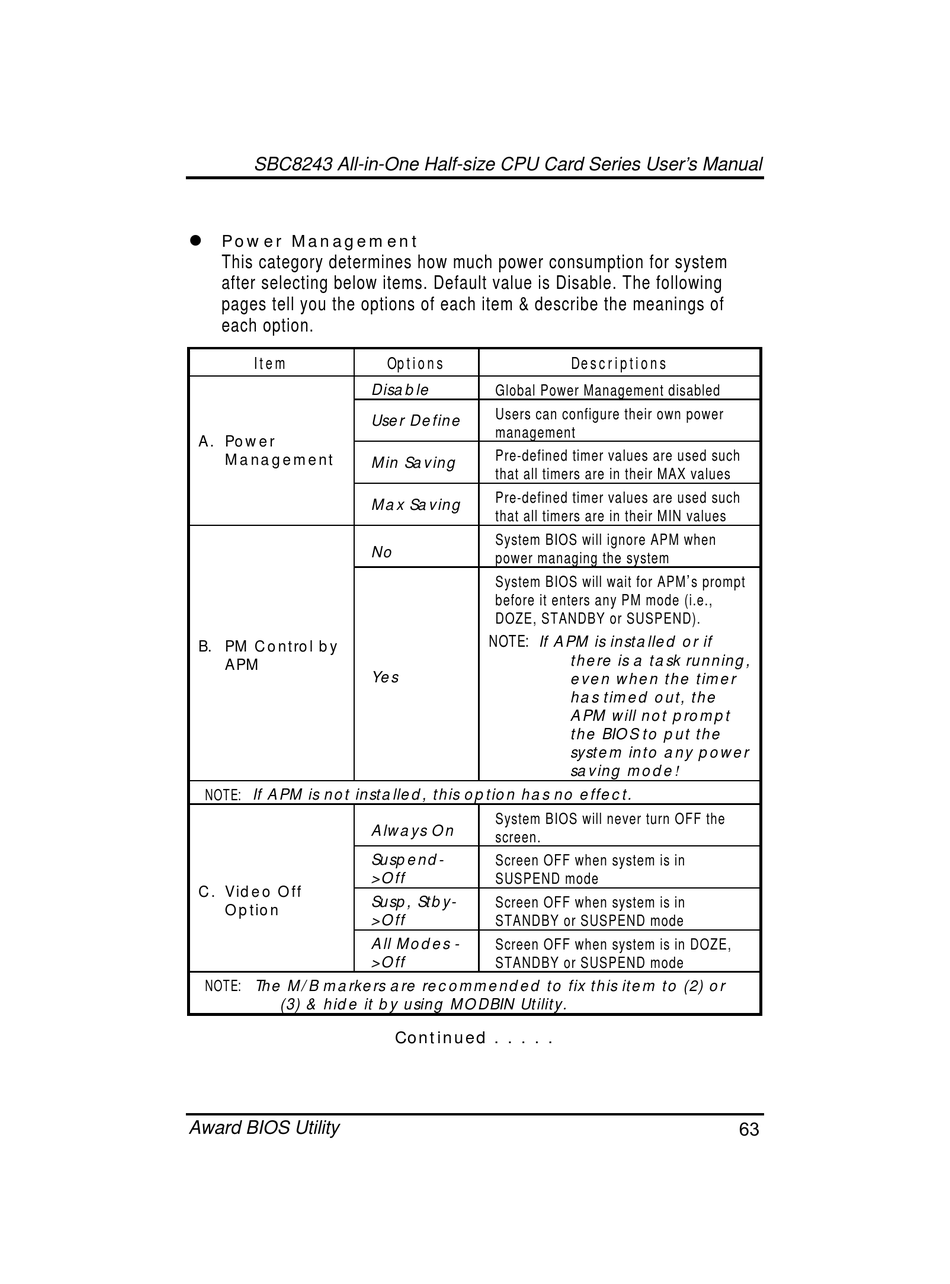

Power Management

This category determines how much power consumption for system
after selecting below items. Default value is Disable. The following
pages tell you the options of each item & describe the meanings of
each option.
Item
A. Power
Management
B. PM Control by
APM
NOTE: If APM is not installed, this option has no effect.
C. Video Off
Option
NOTE: The M/B markers are recommended to fix this item to (2) or
(3) & hide it by using MODBIN Utility.
Award BIOS Utility

Options
Disable
Global Power Management disabled
Users can configure their own power
User Define
management
Pre-defined timer values are used such
Min Saving
that all timers are in their MAX values
Pre-defined timer values are used such
Max Saving
that all timers are in their MIN values
System BIOS will ignore APM when
No
power managing the system
System BIOS will wait for APM's prompt
before it enters any PM mode (i.e.,
DOZE, STANDBY or SUSPEND).
NOTE:
If APM is installed or if
Yes
System BIOS will never turn OFF the
Always On
screen.
Suspend-
Screen OFF when system is in
>Off
SUSPEND mode
Susp, Stby-
Screen OFF when system is in
>Off
STANDBY or SUSPEND mode
All Modes -
Screen OFF when system is in DOZE,
>Off
STANDBY or SUSPEND mode
Continued . . . . .
Descriptions
there is a task running,
even when the timer
has timed out, the
APM will not prompt
the BIOS to put the
system into any power
saving mode !
