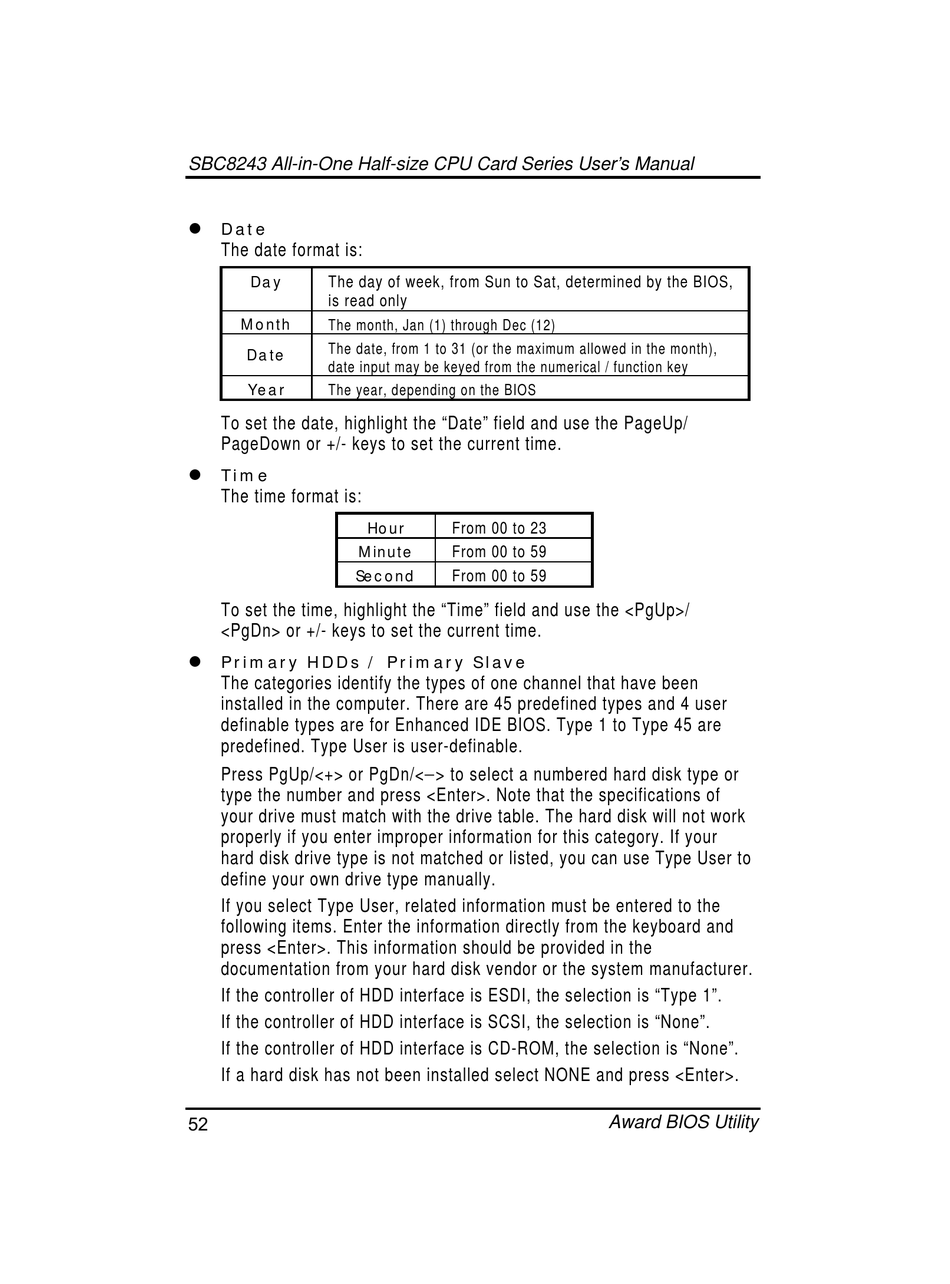

AXIOMTEK SBC8243 User Manual page 62

SBC8243 All-in-One Half-size CPU Card Series User's Manual


!" Date
The date format is:
The day of week, from Sun to Sat, determined by the BIOS,
Day
is read only
Month
The month, Jan (1) through Dec (12)
The date, from 1 to 31 (or the maximum allowed in the month),
Date
date input may be keyed from the numerical / function key
Year
The year, depending on the BIOS
To set the date, highlight the "Date" field and use the PageUp/
PageDown or +/- keys to set the current time.
!" Time
The time format is:
Minute
Second
To set the time, highlight the "Time" field and use the <PgUp>/
<PgDn> or +/- keys to set the current time.
!" Primary HDDs / Primary Slave
The categories identify the types of one channel that have been
installed in the computer. There are 45 predefined types and 4 user
definable types are for Enhanced IDE BIOS. Type 1 to Type 45 are
predefined. Type User is user-definable.
Press PgUp/<+> or PgDn/<−> to select a numbered hard disk type or
type the number and press <Enter>. Note that the specifications of
your drive must match with the drive table. The hard disk will not work
properly if you enter improper information for this category. If your
hard disk drive type is not matched or listed, you can use Type User to
define your own drive type manually.
If you select Type User, related information must be entered to the
following items. Enter the information directly from the keyboard and
press <Enter>. This information should be provided in the
documentation from your hard disk vendor or the system manufacturer.
If the controller of HDD interface is ESDI, the selection is "Type 1".
If the controller of HDD interface is SCSI, the selection is "None".
If the controller of HDD interface is CD-ROM, the selection is "None".
If a hard disk has not been installed select NONE and press <Enter>.
)3

Hour From 00 to 23
From 00 to 59
From 00 to 59
Award BIOS Utility
