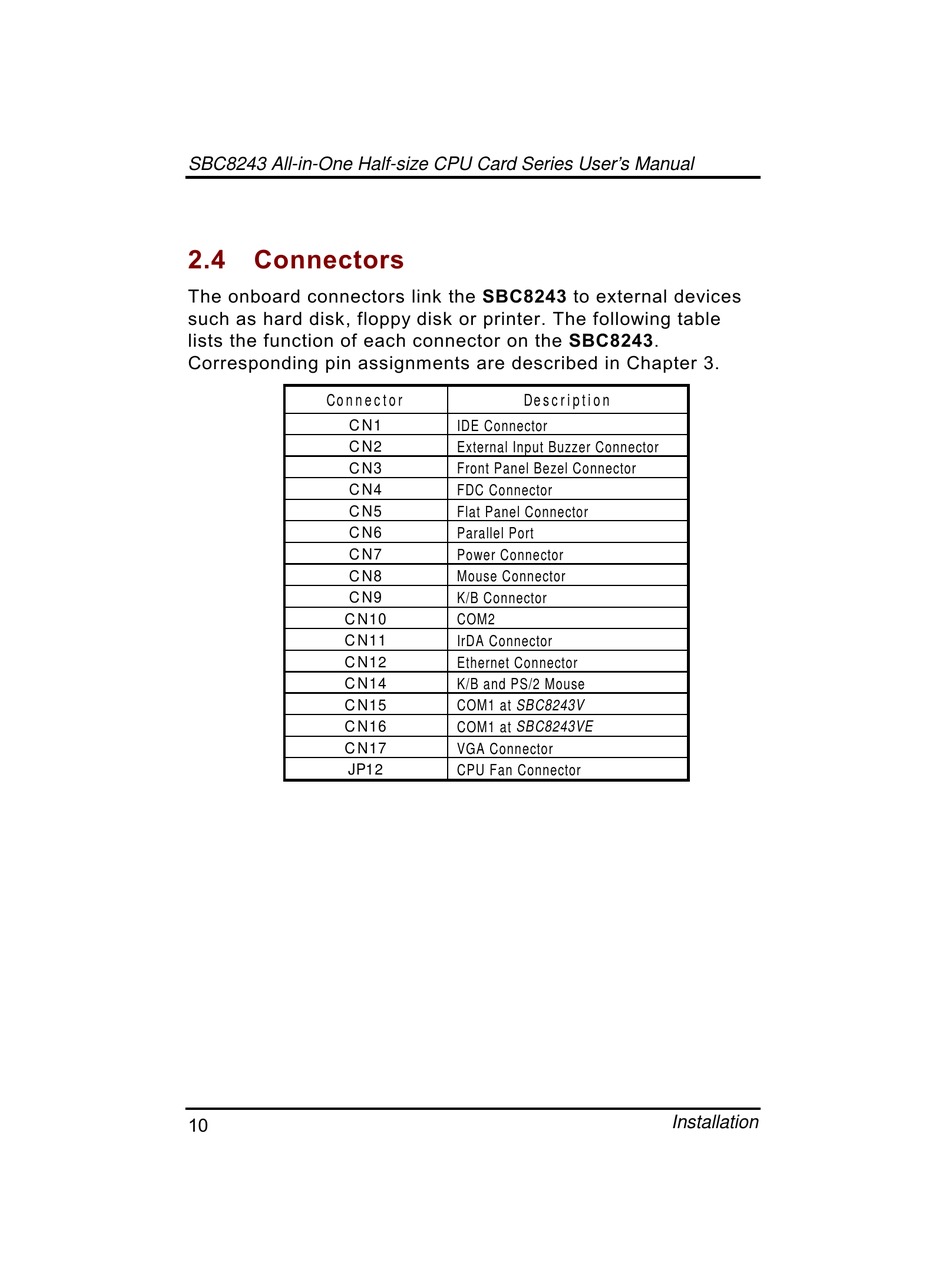

SBC8243 All-in-One Half-size CPU Card Series User's Manual


#*$ & &
7


 .

$-#







.

.

 #
7











$-##








4#

Connector
CN1
CN2
CN3
CN4
CN5
CN6
CN7
CN8
CN9
CN10
CN11
CN12
CN14
CN15
CN16
CN17
JP12
*

Description
IDE Connector
External Input Buzzer Connector
Front Panel Bezel Connector
FDC Connector
Flat Panel Connector
Parallel Port
Power Connector
Mouse Connector
K/B Connector
COM2
IrDA Connector
Ethernet Connector
K/B and PS/2 Mouse
COM1 at SBC8243V
COM1 at SBC8243VE
VGA Connector
CPU Fan Connector
Installation
