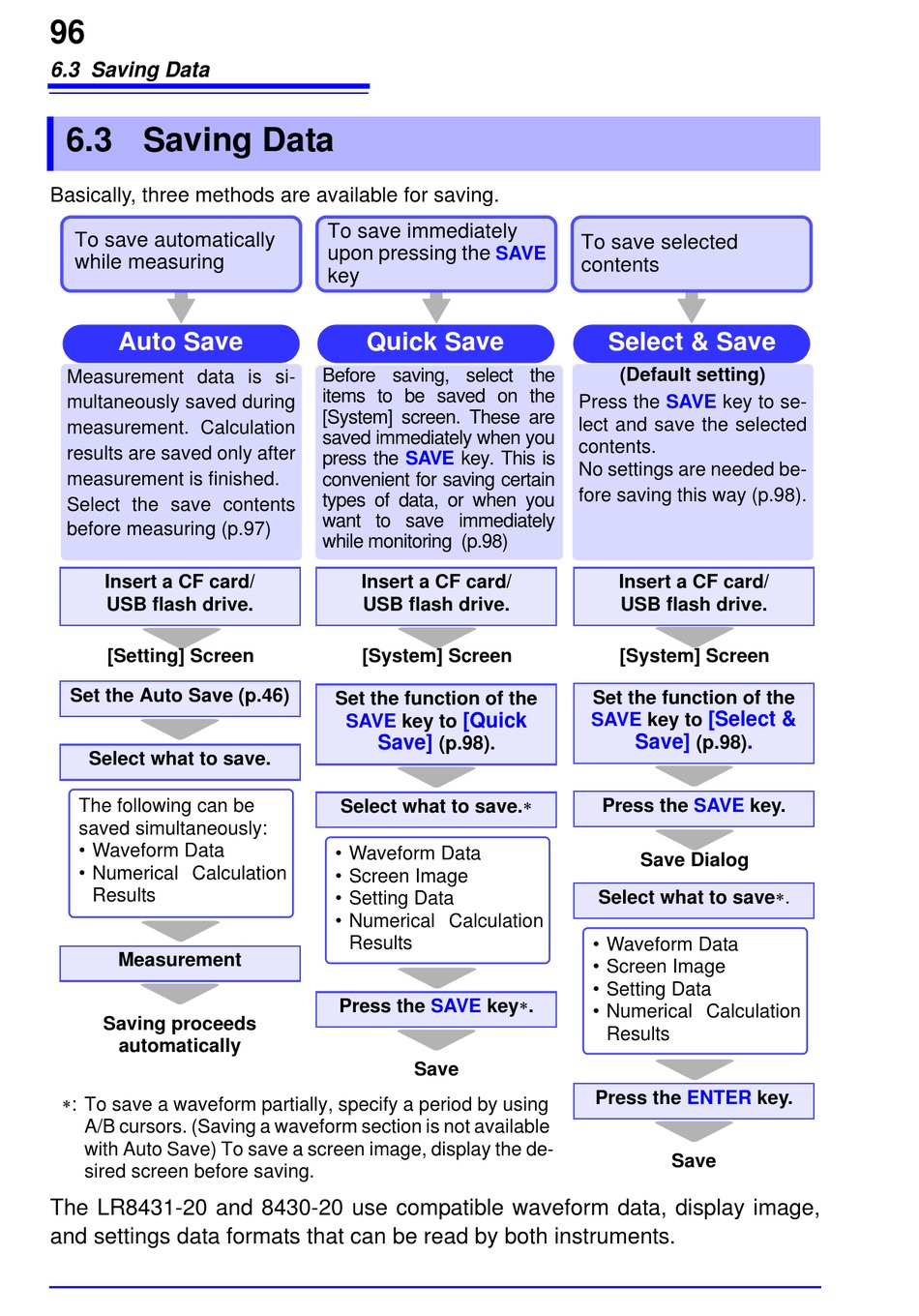

6.3 Saving Data

6.3 Saving Data
Basically, three methods are available for saving.
To save automatically
while measuring
Auto Save
Measurement data is si-
multaneously saved during
measurement. Calculation
results are saved only after
measurement is finished.
Select the save contents
before measuring (p.97)
Insert a CF card/
USB flash drive.
[Setting] Screen
Set the Auto Save (p.46)
Select what to save.
The following can be
saved simultaneously:
• Waveform Data
• Numerical Calculation
Results
Measurement
Saving proceeds
automatically
: To save a waveform partially, specify a period by using
A/B cursors. (Saving a waveform section is not available
with Auto Save) To save a screen image, display the de-
sired screen before saving.
The LR8431-20 and 8430-20 use compatible waveform data, display image,
and settings data formats that can be read by both instruments.
To save immediately
upon pressing the
key
Quick Save
Before saving, select the
items to be saved on the
[System] screen. These are
saved immediately when you
press the SAVE key. This is
convenient for saving certain
types of data, or when you
want to save immediately
while monitoring (p.98)
Insert a CF card/
USB flash drive.
[System] Screen
Set the function of the
[Quick
SAVE key to
Save]
(p.98).
Select what to save.
• Waveform Data
• Screen Image
• Setting Data
• Numerical Calculation
Results
Press the SAVE key.
Save
To save selected
SAVE
contents
Select & Save
(Default setting)
Press the SAVE
lect and save the selected
contents.
No settings are needed be-
fore saving this way (p.98).
Insert a CF card/
USB flash drive.
[System] Screen
Set the function of the
SAVE key to
Save]
Press the
Save Dialog
Select what to save
• Waveform Data
• Screen Image
• Setting Data
• Numerical Calculation
Results
Press the
key to se-
[Select &
.
(p.98)
SAVE key.
ENTER key.
Save
