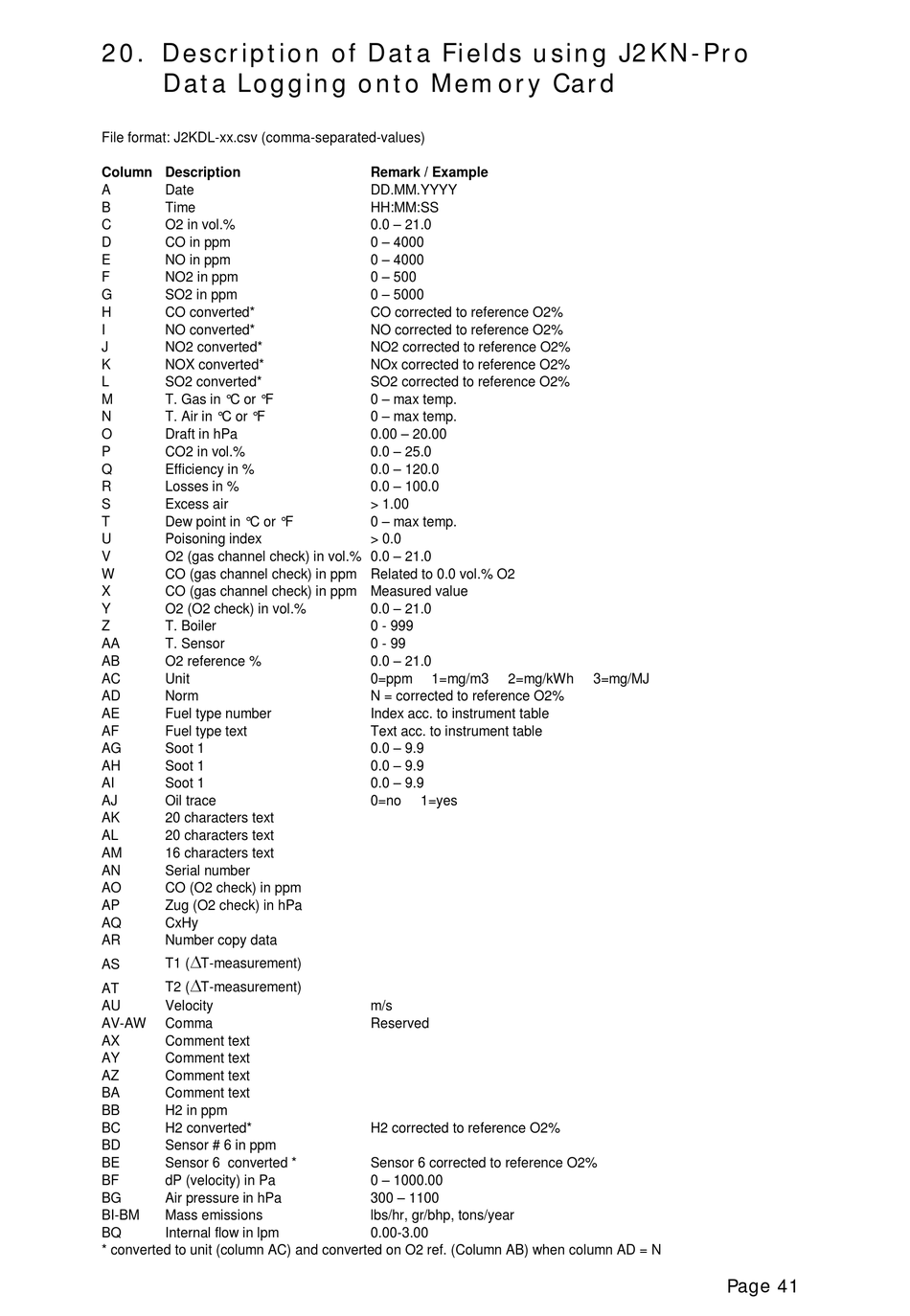

20. Description of Data Fields using J2KN-Pro
Data Logging onto Memory Card
File format: J2KDL-xx.csv (comma-separated-values)
Column Description
A Date
B Time
C O2 in vol.%
D CO in ppm
E NO in ppm
F NO2 in ppm
G SO2 in ppm
H CO converted*
I NO converted*
J NO2 converted*
K NOX converted*
L SO2 converted*
M T. Gas in °C or °F
N T. Air in °C or °F
O Draft in hPa
P CO2 in vol.%
Q Efficiency in %
R Losses in %
S Excess air
T Dew point in °C or °F
U Poisoning index
V O2 (gas channel check) in vol.% 0.0 – 21.0
W CO (gas channel check) in ppm Related to 0.0 vol.% O2
X CO (gas channel check) in ppm Measured value
Y O2 (O2 check) in vol.%
Z T. Boiler
AA T. Sensor
AB O2 reference %
AC Unit
AD Norm
AE Fuel type number
AF Fuel type text
AG Soot 1
AH Soot 1
AI Soot 1
AJ Oil trace
AK 20 characters text
AL 20 characters text
AM 16 characters text
AN Serial number
AO CO (O2 check) in ppm
AP Zug (O2 check) in hPa
AQ CxHy
AR Number copy data

T1 ( T-measurement)
AS

T2 ( T-measurement)
AT
AU Velocity
AV-AW Comma
AX Comment text
AY Comment text
AZ Comment text
BA Comment text
BB H2 in ppm
BC H2 converted*
BD Sensor # 6 in ppm
BE Sensor 6 converted *
BF dP (velocity) in Pa
BG Air pressure in hPa
BI-BM Mass emissions
BQ Internal flow in lpm
* converted to unit (column AC) and converted on O2 ref. (Column AB) when column AD = N
Remark / Example
DD.MM.YYYY
HH:MM:SS
0.0 – 21.0
0 – 4000
0 – 4000
0 – 500
0 – 5000
CO corrected to reference O2%
NO corrected to reference O2%
NO2 corrected to reference O2%
NOx corrected to reference O2%
SO2 corrected to reference O2%
0 – max temp.
0 – max temp.
0.00 – 20.00
0.0 – 25.0
0.0 – 120.0
0.0 – 100.0
> 1.00
0 – max temp.
> 0.0
0.0 – 21.0
0 - 999
0 - 99
0.0 – 21.0
0=ppm 1=mg/m3 2=mg/kWh
N = corrected to reference O2%
Index acc. to instrument table
Text acc. to instrument table
0.0 – 9.9
0.0 – 9.9
0.0 – 9.9
0=no 1=yes
m/s
Reserved
H2 corrected to reference O2%
Sensor 6 corrected to reference O2%
0 – 1000.00
300 – 1100
lbs/hr, gr/bhp, tons/year
0.00-3.00
3=mg/MJ
