C O N N E C T I N G R E A R T R I A N G L E T O B O X L I N K //
A

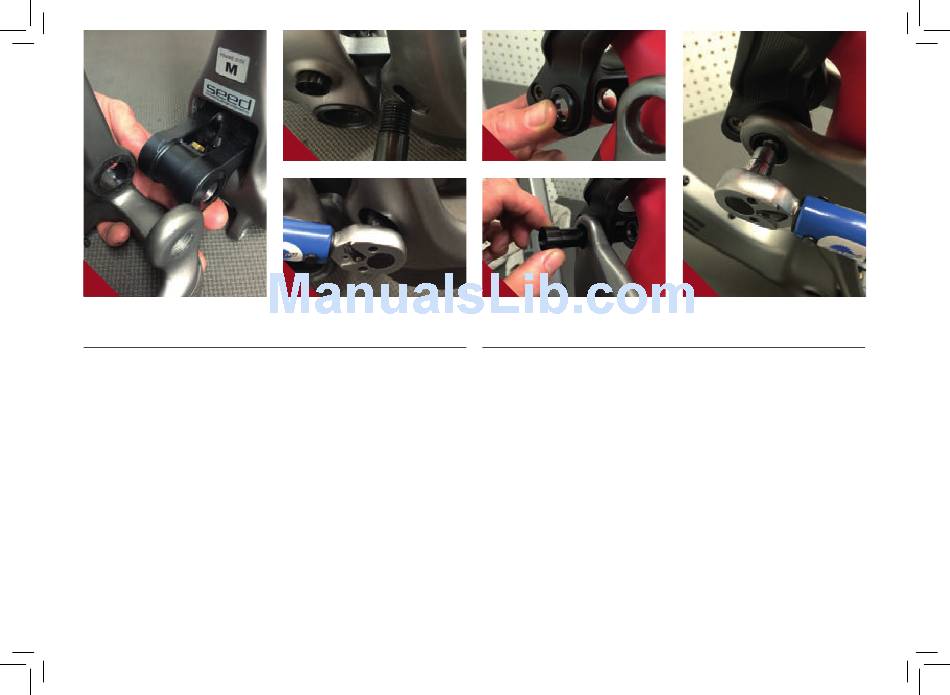

Follow previous step to connect rear
triangle to box link (IMAGE #6).
1 0 / / r e c l u s e
7
8
B
Use 8mm HEX to install, then torque
pivot bolt (#130791) to 7 NM or 60 in/
lbs (IMAGES #7 & 8).
u s e r m a n u a l
9
10
C O N N E C T I N G R E A R T R I A N G L E T O T O P L I N K //
A
Holding bearing cap (#130765) with
squared edges against the bearing and the
rounded side facing outward (IMAGE #9),
Swing the seat stays up and align with
the lower spacers. From the non drive
side of top link insert greased main pivot
bolt (#130791) through the non-drive
side of frame (IMAGES #9 & 10).
11
B
Use an 8mm HEX to install torque main
pivot bolt (#130791) to 7 NM or 60 in/
lbs (IMAGE #11).
