Intense Cycles Recluse User Manual page 12

19
20

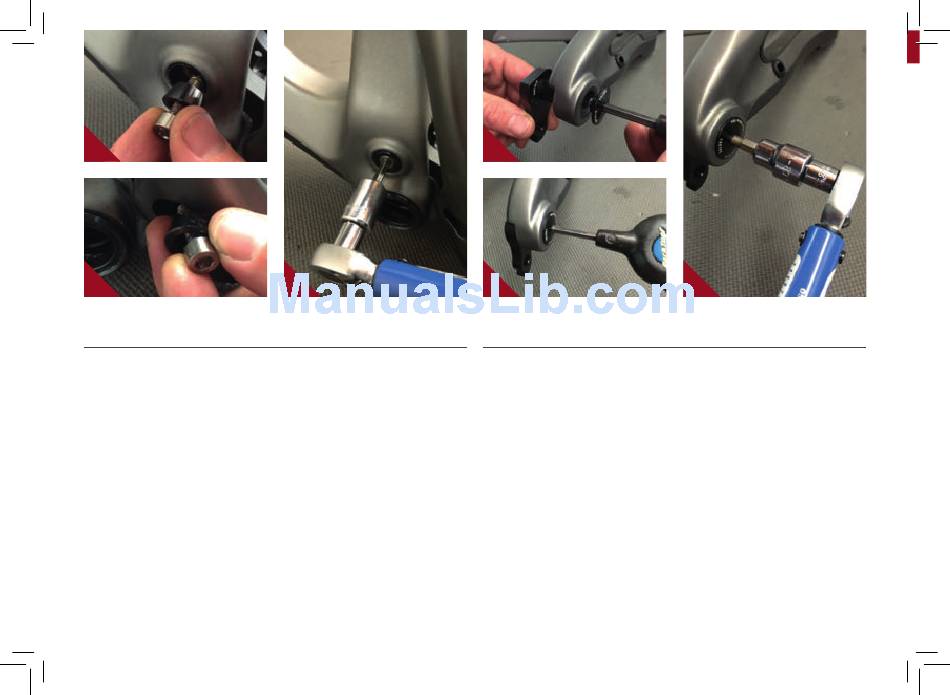

INSTALLING ADJUSTER CONES ON LOWER LINK //
A
Grease and install adjuster cone
(#130807) into head of main pivot bolt
(#130791) and greased M6x22mm bolt
(#410032) through the adjuster cone into
the main pivot bolt (IMAGES #19 & 20).
1 2 / / r e c l u s e
21
B
Torque M6x22mm (#410032) to 14 NM
or 125 in/lbs (IMAGE #21).
u s e r m a n u a l
22
23
INSTALLING DERAILLEUR HANGER //
A
Grease outer edges of derailleur hanger
(#130790) and loctite derailleur bolt
(#130792) if not pre loctite applied.
B
Insert hanger (#130790) into back of
frame opening and match derailleur bolt
(#130792) on the front side threading
bolt into hanger (IMAGE #22 & 23).
24
C
Torque derailleur bolt (#130792) to 11
NM or 100 in/lbs (IMAGE #24).
