4010-9814 and -9824 Suppression Release Kits

Overview

P2 Connector (White)
TB1 AUX Power Output
Technical Manuals Online! - http://www.tech-man.com
When the suppression function is controlled by the 4010 Fire Alarm Control
Panel, a Suppression Release Kit (power supply 565-793) can be added to
supply power for this function. The suppression release kit provides
filtered/regulated 24VDC, 4A power for Notification. When controlling the
suppression release function, a Notification Appliance Circuit is limited to
driving a single valve.
Terminals 1 and 2 are rated at 2A, 24VDC "A Tap" and Terminal 3 and 4 are
rated at 2A, 24VDC "B Tap." Maximum wire length is 3,270 feet. Be sure to
include Auxiliary 24VDC in battery standby considerations. See Figure 1 for
connector locations.
P1 Connector (Red)
Battery Leads
(4Amp MAX)
565-792
O R
565-793 + -

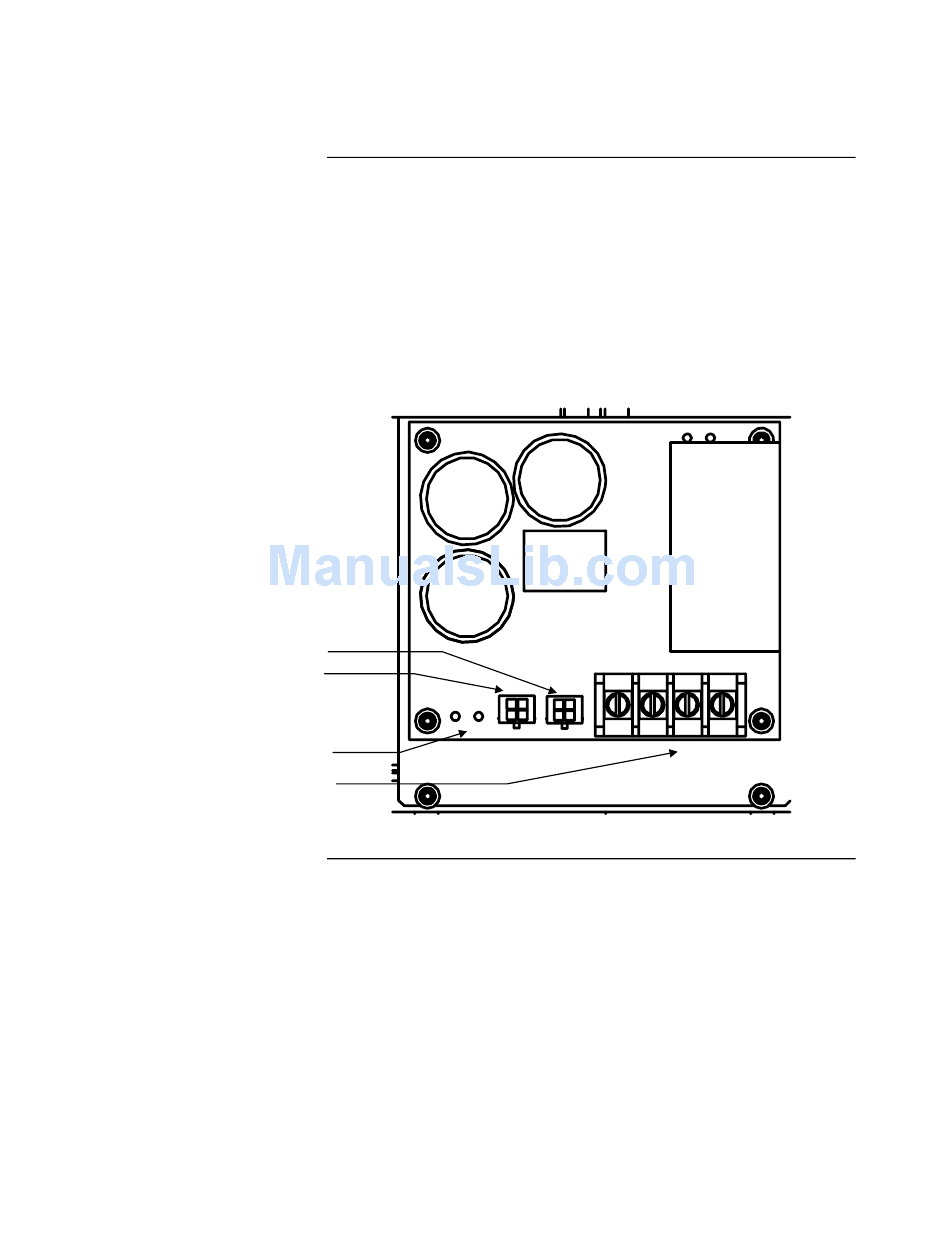

Figure 1. 4010 Suppression Release Kit
