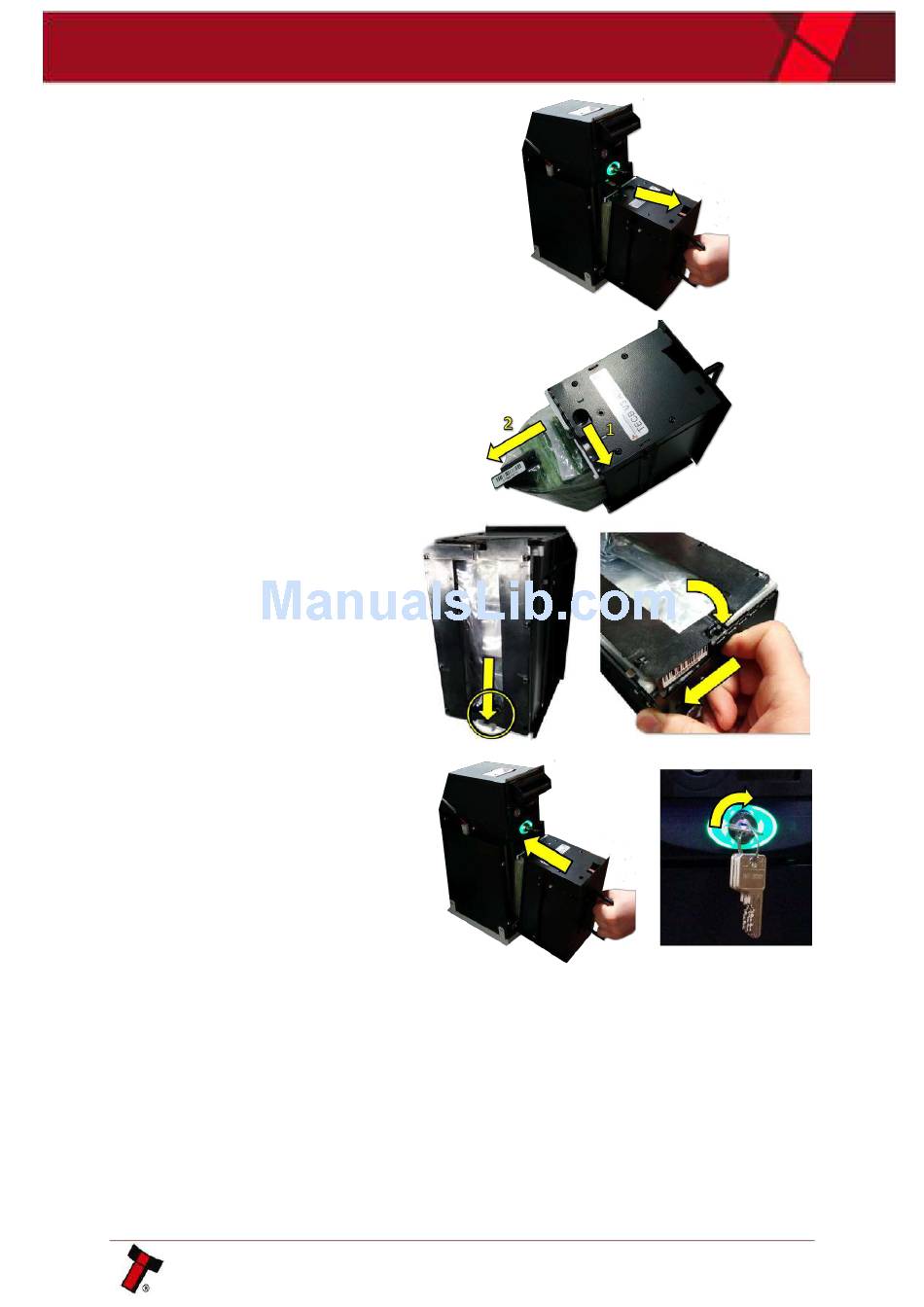

Once the key has been turned
the bezel will begin to flash the
cashbox can be removed as
shown on the right.
To remove the cashbox, slide the
catch to the side and lift the cash
bag out of the cashbox. As
shown to the right.
To fit the cash bag insert the
bottom lug, slide the latch to the
slide and push the bag into place.
Ensuring the barcode is sat in
place.
Slide the cash bag back into the
TEBS and turn the lock – the lock
will go red. The stacker will
audibly cycle and the bezel flash
code will disable showing the
barcode has been read.

4.4 Loading paper into the Smart Ticket

The methods for loading paper into the various SMART Ticket configurations are
shown below.
The sections are separated into Ticket Type; roll or fan fold, and loading position;
Top or Rear.

4.4.1 Roll

4.4.1.1 Top

The Roll paper is mounted orientated such that the paper edge goes straight from
the roll into the Printer, as shown in the picture below.
