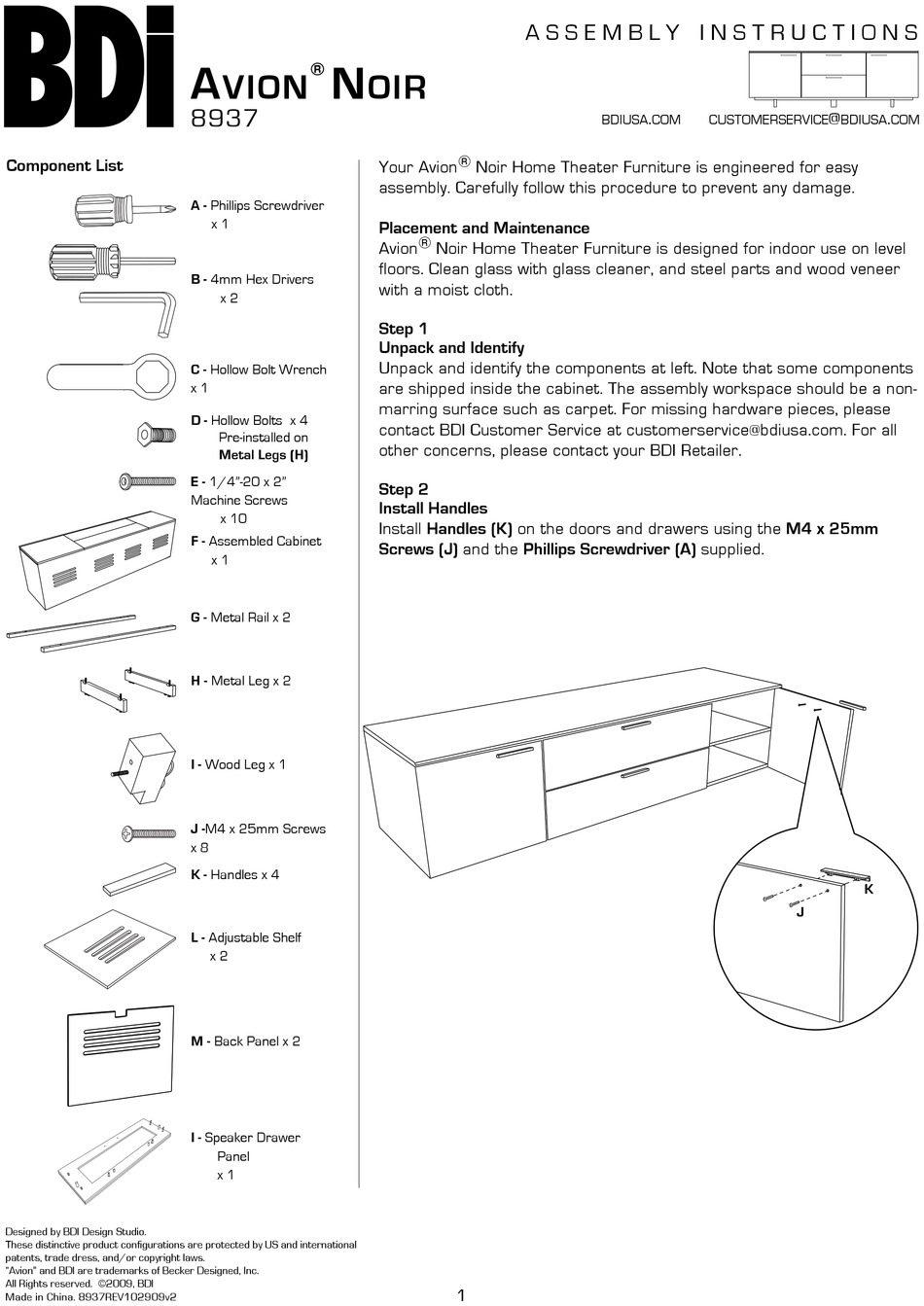

Component List
Designed by BDI Design Studio.
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
"Avion" and BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2009, BDI
Made in China. 8937REV102909v2
A
n
®
vion
8937
A - Phillips Screwdriver
x 1
B - 4mm Hex Drivers
x 2
C - Hollow Bolt Wrench
x 1
D - Hollow Bolts x 4
Pre-installed on
Metal Legs (H)
E - 1/4"-20 x 2"
Machine Screws
x 10
F - Assembled Cabinet
x 1
G - Metal Rail x 2
H - Metal Leg x 2
I - Wood Leg x 1
J -M4 x 25mm Screws
x 8
K - Handles x 4
L - Adjustable Shelf
x 2
M - Back Panel x 2
I - Speaker Drawer
Panel
x 1
a s s e m b l y i n s t r u c t i o n s
oir
Your Avion ® Noir Home Theater Furniture is engineered for easy
assembly. Carefully follow this procedure to prevent any damage.
Placement and Maintenance
Avion ® Noir Home Theater Furniture is designed for indoor use on level
floors. Clean glass with glass cleaner, and steel parts and wood veneer
with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some components
are shipped inside the cabinet. The assembly workspace should be a non-
marring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at customerservice@bdiusa.com. For all
other concerns, please contact your BDI Retailer.
Step 2
Install Handles
Install Handles (K) on the doors and drawers using the M4 x 25mm
Screws (J) and the Phillips Screwdriver (A) supplied.
1
.
bdiusa
com
customerservice
@
.
bdiusa
com
K
J
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BDI Avion Noir 8937
Summary of Contents for BDI Avion Noir 8937
- Page 1 Panel Designed by BDI Design Studio. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. “Avion” and BDI are trademarks of Becker Designed, Inc. All Rights reserved. ©2009, BDI Made in China. 8937REV102909v2...
- Page 2 Step 3 Build Base Assembly Using the Hollow Bolt Wrench (C), remove the four (4) pre-installed Hollow Bolts (D) from Metal Leg (H). screw the Metal Rail (G) to the top of Metal Leg (H) with Hollow Bolts (D). Completed base assembly NOTE: Make sure that the larger bolt opening on Metal Rail...
- Page 3 Install both Back Panels (M) to the backside of the cabinet. *Note: Velcro straps are included as wire management for your convenience. Optional Flat Panel TV Mount This BDI cabinet is compatible with BDI’s Flat- Panel TV Mount #9970 (sold separately) , with the following features: •...
- Page 4 Step 7 Center channel speaker option A. If you decide to use your top/center drawer area for a center channel speaker, the drawer may be easily removed. In order to do this, follow the steps below. Fully extend drawer and locate plastic lever Simultaneously on the LEFT side of drawer, lift UP on plastic lever AND on the RIGHT side on drawer slide.
- Page 5 This allows easier cabinet movement for greater access to rear panels and wire- management, and permits easier cleaning/vacuuming underneath the cabinet. By following the steps in this guide, you can be sure that your BDI cabinet is in optimum tune and adjustment. If you need additional assistance, contact BDI at customerservice@bdiusa.com.
