RC6702SV-7311

Installation Guide

www.rivatech.de
Specification subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC6702SV-7311 and is the answer not in the manual?

Questions and answers

Summary of Contents for Riva RC6702SV-7311

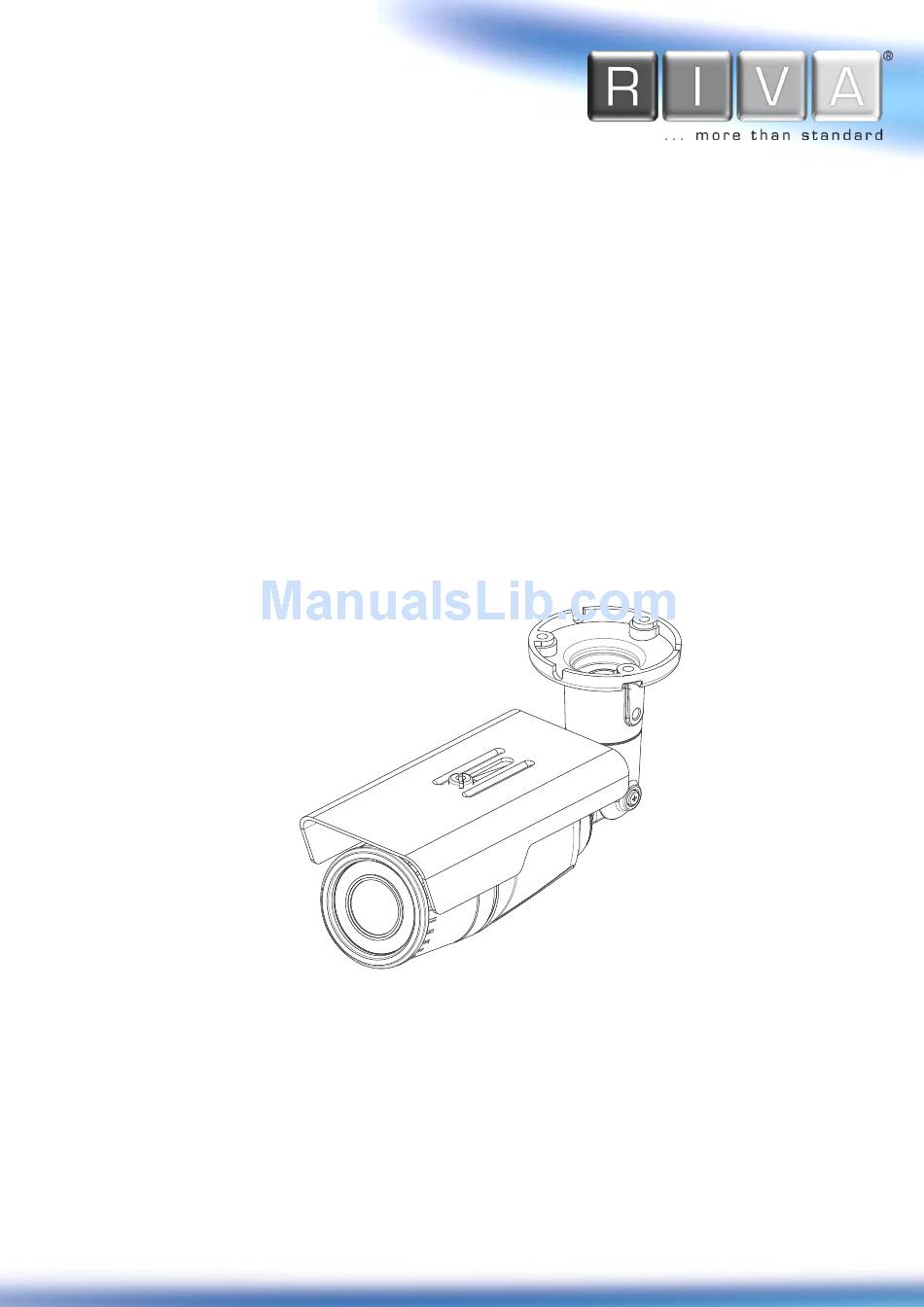

  • Page 1: Installation Guide

    RC6702SV-7311 Installation Guide www.rivatech.de Specification subject to change without notice...
  • Page 2: Precaution

    RC Series RC6702SV-7311 Installation Guide Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight.
  • Page 3: Table Of Contents

    RC Series RC6702SV-7311 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. CAMERA INSTALLATION ..................8 4.1. Installing the camera ..................... 8 4.1.1. Installation without bracket ..................8 4.1.2.
  • Page 4: Features

    RC Series RC6702SV-7311 Installation Guide 1. FEATURES Camera  1/2.8” 1080p CMOS Image Sensor  True Day / Night  DC Auto Iris Lens   Embedded IR Illuminator  Remote Zoom/Focus Control (One Click AF)  Weather Proof (IP66) Video ...
  • Page 5: Package Contents

    RC Series RC6702SV-7311 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor & Plugs Screws (M4x30) and Plastic Anchors Hex Wrench (3mm) Video Output Cable Silicon Waterproof Band...
  • Page 6: Part Names

    RC Series RC6702SV-7311 Installation Guide 3. PART NAMES ① ⑥ ⑧ ⑦ ⑤ ④ ② ③ ② * Models herein and their appearance are subject to change without any prior notice. ① Sunshield Position the sunshield to prevent direct sunshine.
  • Page 7 RC Series RC6702SV-7311 Installation Guide ⑥ Terminal Connector Connector for cables of digital input/output and audio input/output. Refer to 5. CONNECTIONS for more information. ⑦ Power Adaptor Connector Use DC12V for the power supply. ⑧ LAN connector RJ45 LAN connector for 10/100 Base-T Ethernet (PoE supported).
  • Page 8: Camera Installation

    RC Series RC6702SV-7311 Installation Guide 4. CAMERA INSTALLATION tion template 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. Caution The correct-size template paper can be found inside the package separately.
  • Page 9 RC Series RC6702SV-7311 Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert the anchor blocks into the holes. 3) Attach the silicon waterproof band included in the package to the camera’s mounting surface...
  • Page 10: Compatible Accessories

    RC Series RC6702SV-7311 Installation Guide < Installation of Ferrite Core > Installing the ferrite core is highly recommended to reduce high frequency noise level. The instructions and the image below explain how to install the ferrite core on the cable.
  • Page 11: Adjusting Angle Of The Camera

    RC Series RC6702SV-7311 Installation Guide 4.2. Adjusting angle of the camera 1. Adjust the camera to the desired angle by unscrewing the joints referring to the following pictures. Adjust the joint to delicately Adjust the joint to tilt Adjust the joint to install adjust the horizontal angle.
  • Page 12: Adjusting Zoom And Focus

    RC Series RC6702SV-7311 Installation Guide 4.3. Adjusting Zoom and Focus *To be able to adjust zoom and focus, it is necessary to connect the device to a network. Please refer to 6. CONFIGURATION for the instructions. Once the device is on the network and the webpage is open, go to Setup> Video & Audio >...
  • Page 13: Setting Image Attributes

    RC Series RC6702SV-7311 Installation Guide 4.4. Setting Image Attributes On the camera’s webpage, users can configure the image settings. The menu of the image attributes is available at Video Appearance via the path, Setup > Video & Audio > Camera.
  • Page 14: Connections

    RC Series RC6702SV-7311 Installation Guide 5. CONNECTIONS BLACK: AUD IN ① BROWN: AUD GND RED: AUD OUT ORANGE : DI ② YELLOW: DI COM GREEN: DO1 (N.O) ③ ④ ⑤ BLUE: DO1 COM ① 04-2017-B www.rivatech.de...
  • Page 15 RC Series RC6702SV-7311 Installation Guide ① Audio Connection N / A N / A The camera provides a mono audio input and output. Due to low audio output power, an amplified speaker is recommended for enhanced sound (Refrain from connecting a headphone or an earphone directly to the camera).
  • Page 16 RC Series RC6702SV-7311 Installation Guide ④ LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. Refer to “Appendix (B). Power over Ethernet”...
  • Page 17: Configuration

    RC Series RC6702SV-7311 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device.
  • Page 18: Custom Ip Environment

    RC Series RC6702SV-7311 Installation Guide 6.1.2. Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all the the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations.
  • Page 19: View Video On Web Page

    RC Series RC6702SV-7311 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed.
  • Page 20: View Video Using Ipadmin Tool

    RC Series RC6702SV-7311 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it.
  • Page 21: Reboot

    RC Series RC6702SV-7311 Installation Guide 6.3. Reboot Perform the following procedures to reboot your device: On the camera Press the reset button for 2 seconds while the device is powered on. Wait for the system to reboot. Please do not press the reset button for more than 2 seconds.
  • Page 22: Safe Mode

    RC Series RC6702SV-7311 Installation Guide 6.5. Safe Mode What is Safe Mode? There may be certain occasions that your camera repeatedly fails to boot. Then, your camera may enter safe mode to be recovered from the occasions. What may have caused Safe Mode? Here below are the main typical causes.
  • Page 23: Appendix (A): Specifications

    RC Series RC6702SV-7311 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor Sony STARVIS Exmor 1/2.8” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 0.01 Lux (DSS On) ELECTRICAL Illumination B/W : 0 Lux (IR LED On)
  • Page 24: Electrical Characteristics

    RC Series RC6702SV-7311 Installation Guide DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1/1.2, IEEE802.1X 1 x microSD memory card slot (SD/SDHC up to 32GB supported) SD Slot ※ Card not included (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V (CLASS 2, LPS) / PoE+ (IEEE802.3at)
  • Page 25: Appendix (B): Power Over Ethernet

    RC Series RC6702SV-7311 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables.
  • Page 26: Appendix (C): Dimensions

    RC Series RC6702SV-7311 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2017-B www.rivatech.de...
  • Page 27: Appendix (D): Hexadecimal-Decimal Conversion Table

    RC Series RC6702SV-7311 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 04-2017-B www.rivatech.de...
  • Page 28: Revision History

    RC Series RC6702SV-7311 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 02-2017-A 02/08/2017 First release version of RC6702SV Series Added some network protocols to the specification table 04-2017-A 04/03/2017 Corrected the size of the image sensor (1/2.9” -> 1/2.8”) 04-2017-B 04/14/2017...
