Quick Installation Guide
This manual provides instructions for the quick installation and basic configuration of your IP device.
1. Part names and positions

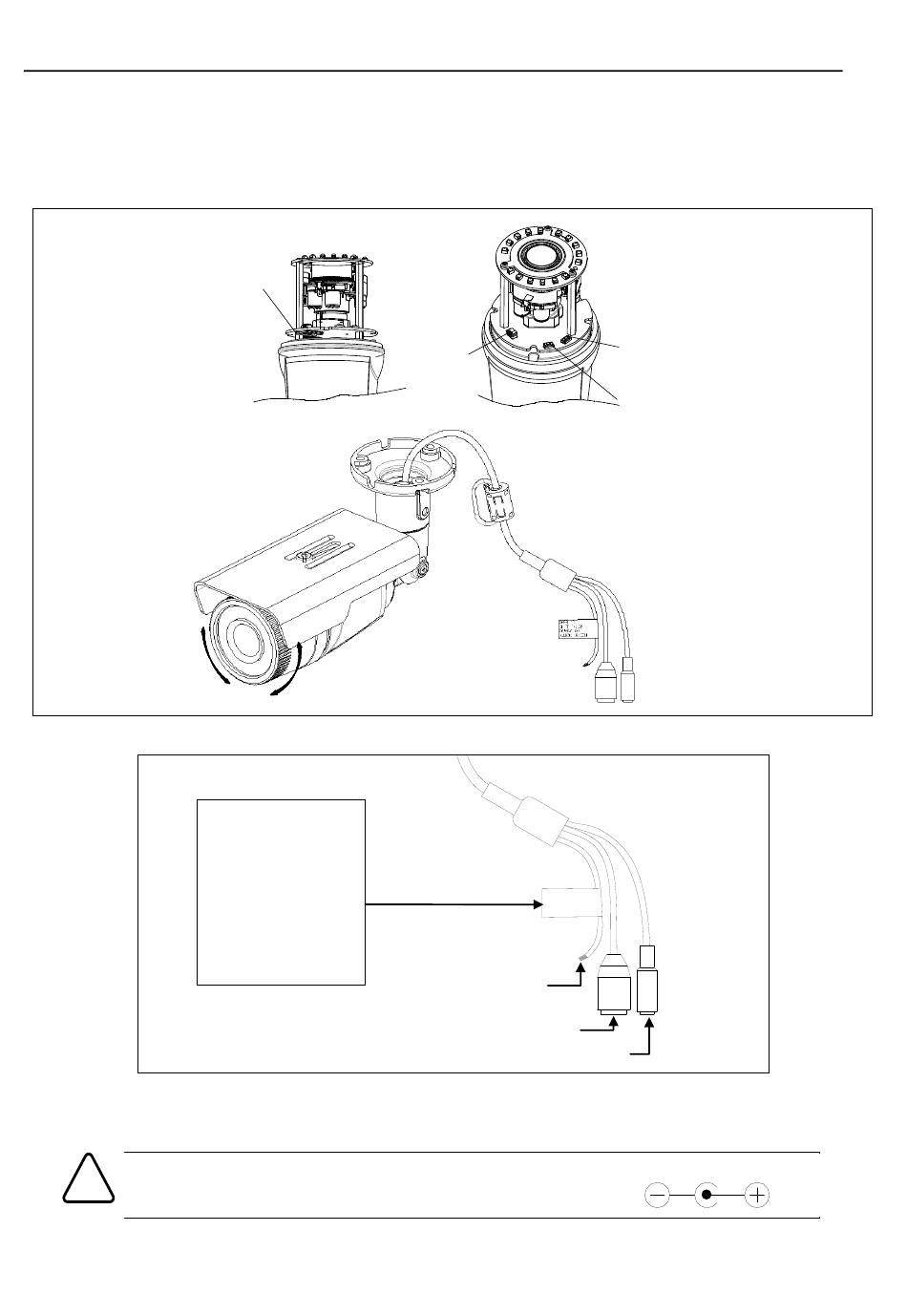

Please check the name and position of each part by referring to the following images.
* Model design and appearance are subject to change without any prior notice.
Make sure the polarity is correct. Incorrect connection may
!
cause malfunction or damage the IP device.
Caution
NC6702SV(73H_73V722H)02-2017-A
SD Card
BLACK: AUD IN
BROWN: AUD GND
RED: AUD OUT
ORANGE : DI
YELLOW: DI COM
GREEN: DO1 (N.O)
BLUE: DO1 COM
Video Out
Terminal Connector
LAN Connector
Power Adaptor Connector
1
Reset
PAL/NTSC
Power Adaptor Connector (DC 12V)
Advertisement
Table of Contents
Related Manuals for Riva RC6702SV-7311
Summary of Contents for Riva RC6702SV-7311
- Page 1 Quick Installation Guide This manual provides instructions for the quick installation and basic configuration of your IP device. 1. Part names and positions Please check the name and position of each part by referring to the following images. SD Card Reset Video Out PAL/NTSC...
-
Page 2: Installation
2. Installation There is only one type of mounting explained in this manual. Refer to the camera’s installation guide for the various mounting types. 1) Place the installation template included in the package on the desired installation surface. 2) Drill three holes in the correct positions based on the template paper, and insert the plastic anchors into the holes. -
Page 3: Adjust Zoom And Focus
To prevent products from damage, place the camera on a stable and non-vibrating surface. If the stability is in doubt, consult safety personnel for reinforcements, and then proceed with the installation. Caution 3. Adjust angle of the camera 1) Adjust the camera to the desired angle by unscrewing the joints with the provided hex wrench (3mm) by referring to the following pictures. -
Page 4: Set Up Network Environment
5. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. - Page 5 IPAdminTool Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and more. To modify the device’s default IP address for customized network area: 1) Find the device from the IPAdminTool’s list, and highlight the device’s name.
-
Page 6: View Video On Web Page
6. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. When the browser asks to install the AxUMF software, click Install to proceed. When Setup installation pop-up window appears, click Install to proceed with rest of installations. -
Page 7: Factory Default
On the Camera’s Webpage Go to Setup > Maintenance > Reboot. Click Reboot to reboot the device. 9. Factory Default Resetting the device back to the factory default will initialize all parameters including the IP address back to the factory defaults. To reset back to the factory default: On the Device 1) Press the reset button, and hold it while the device is powered on. -
Page 8: Hexadecimal-Decimal Conversion Table
Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec NC6702SV(73H_73V722H)02-2017-A...
