Summary of Contents for Riva RC6602HD-5311
-

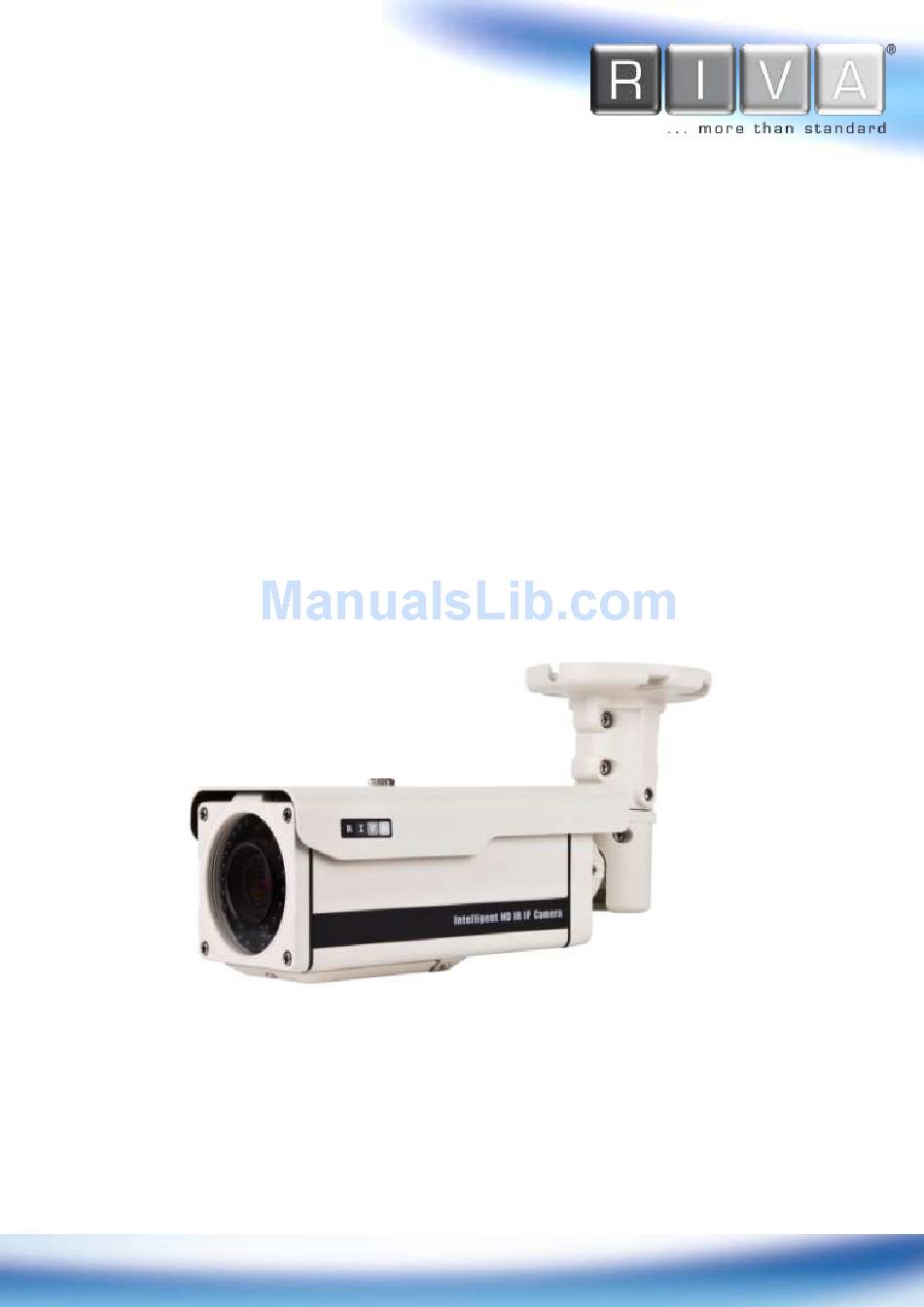

Page 1: Installation Guide
RC6602HD-5311 Installation Guide www.rivatech.de... -
Page 2: Information To User
INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
RC Series RC6602HD-5311 Installation Guide Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ..............7 3. PART NAMES ................7 4. INSTALLATION ................. 9 4.1. Installation Template ..............10 4.2. Adjusting LED options and lens focus ..........11 4.3. -
Page 4: Features

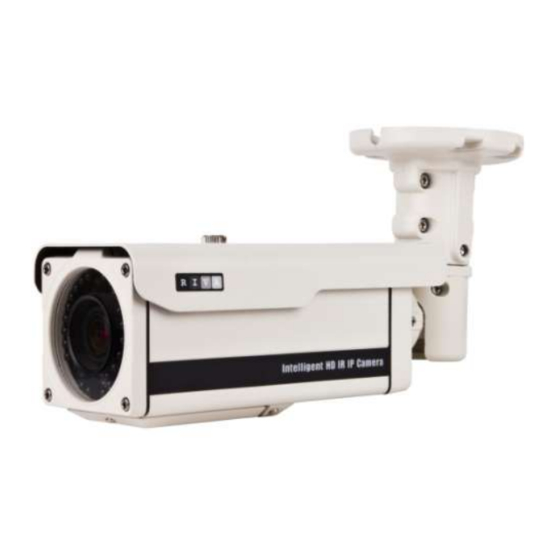

RC Series RC6602HD-5311 Installation Guide 1. FEATURES Camera Full HD Indoor/Outdoor IR Bullet IP Camera 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Improvement of color rolling suppression Remote Zoom/Focus Control(One Click AF) Streaming ... - Page 5 RC Series RC6602HD-5311 Installation Guide Additional Features OSD for camera control supported Micro SD card supported SDK (Software Development Kit) provided VCA detect (Included as basic) Integrated infrared LED’s Fan/Heater unit (heater function only with external power supply) * When VCA is activated, frame rate is limit to max15fps@1080p.
-
Page 6: Package Contents
RC Series RC6602HD-5311 Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera Video out cable Hex wrench driver Screws Quick installation Guide DC power adaptor Terminal block Screw anchors The above contents are subject to change without prior notice. -
Page 7: Part Names
RC Series RC6602HD-5311 Installation Guide 2. PART NAMES ① ④ ① IPN6602HD-5311 ⑤ ⑥ Cable arrange ② A : DO- ③ TELE B : DO+ WIDE NEAR NT/PAL VOUT C : DI+ D : DI- ⑦ * Models herein and their appearance are subject to ⑧... - Page 8 RC Series RC6602HD-5311 Installation Guide 4 Joint for 3 axis 4. Installation Use this part to adjust the camera to the desired position. Refer to more details. 5 Panning joint 4. Installation Use this part for panning adjustment. Refer to for more details.
-
Page 9: Installation
RC Series RC6602HD-5311 Installation Guide 3. INSTALLATION Place the installation template that is provided in the package on the desired position of installation. Drill four holes on the template and insert anchor blocks into the holes. Fasten the camera with screws. -
Page 10: Installation Template
RC Series RC6602HD-5311 Installation Guide 3.1. Installation Template (Unit: mm) www.rivatech.de... -
Page 11: Adjusting Led Options And Lens Focus
RC Series RC6602HD-5311 Installation Guide 3.2. Adjusting LED options and lens focus Adjust the zoom and focus of the lens with push-buttons shown on follow description. IPN6602HD-5311 TELE WIDE NEAR NT/PAL RESET TELE WIDE NEAR NT/PAL VOUT VOUT TELE/WIDE: Uses to setup right zoom lens position... -
Page 12: Setting The Image Attribute
RC Series RC6602HD-5311 Installation Guide 3.3. Setting the Image Attribute You can set the image attribute of camera through the webpage. The menu of image attribute can be seen under Setup > Video & Audio > Camera. Brightness, contrast, saturation and sharpness can be adjusted. -
Page 13: Power Connection
RC Series RC6602HD-5311 Installation Guide Internal +3.3V Internal Output of Output of Sensor Sensor Relay Type Voltage Type Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution... - Page 14 RC Series RC6602HD-5311 Installation Guide Audio Input/Output Connection Connect the audio input device such as a mike to the audio input port and the audio output device such as the amplifier speaker to the audio output port. Audio Input : Linein, 1.43Vp-p(M in 1.35Vp-p, max 1.49 Vp-p), 39 KΩ...
-
Page 15: Configuration
RC Series RC6602HD-5311 Installation Guide 5. CONFIGURATION 5.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 16: Custom Ip Environment
RC Series RC6602HD-5311 Installation Guide 5.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 17: View Video On Web Page
RC Series RC6602HD-5311 Installation Guide 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device. - Page 18 RC Series RC6602HD-5311 Installation Guide 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher.
-
Page 19: View Video Using Ipadmin Tool
RC Series RC6602HD-5311 Installation Guide 5.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. -
Page 20: Reset
RC Series RC6602HD-5311 Installation Guide 5.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 5.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. -
Page 21: Appendix (A): Specifications
RC Series RC6602HD-5311 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0.001 lux, F1.2 AGC Control Auto 3.0~9.0mm Vari-Focal F1.2... -
Page 22: Electrical Characteristics
RC Series RC6602HD-5311 Installation Guide Audio Input / Output Compression PCM, G.711 Function Internal Use: 25M IR Range External Use: 15M Network 10/100 Base-T Power over Ethernet 802.3af (Normal) DI / DO 1 / 1 ch RS-232C/RS-485 Not available TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP,... -
Page 23: Mechanical Condition
RC Series RC6602HD-5311 D-5311 Installation Guide Mechanical Condition Dimensions 83mm x 82mm x 194mm (Without bracket) Color Ivory Weight Net: 1.5Kg APPENDIX (B): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 24: Appendix (C): Hexadecimal-Decimal Conversion Table
RC Series RC6602HD-5311 Installation Guide APPENDIX (C): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec... -
Page 25: Revision History
RC Series RC6602HD-5311 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments D1A.01 04/20/2012 Preliminary version 01A.01 05/02/2012 Power consumption revise 01A.02 06/28/2012 DI/DO power update 01A.03 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) www.rivatech.de...
