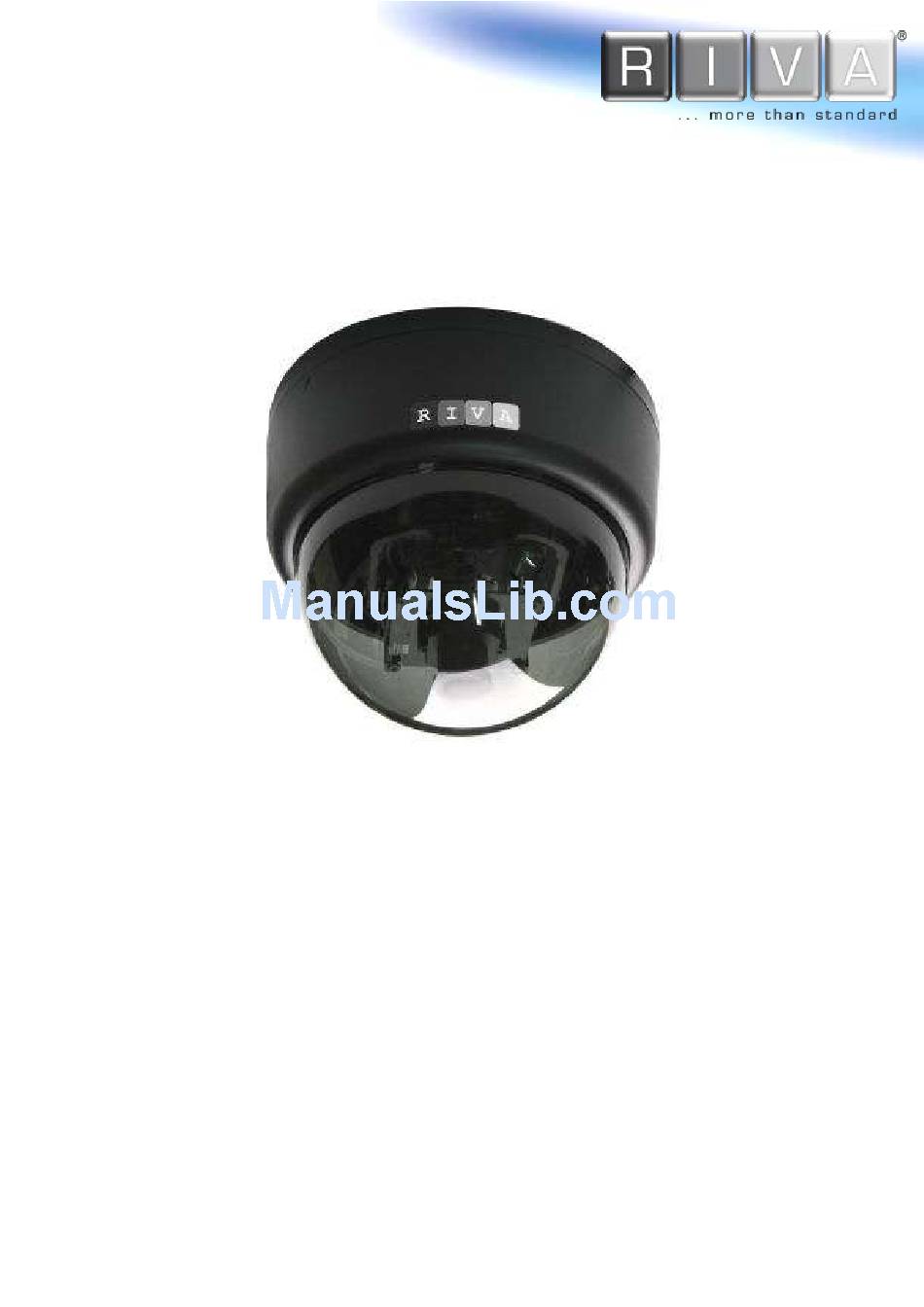

- Page 1 RC100 Installation Guide...
-
Page 2: Information To User
RC/RE Series - Installation Guide INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage”... -
Page 3: Table Of Contents
RC/RE Series - Installation Guide Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ............... 5 3. PART NAMES ................. 6 4. INSTALLATION ................ 7 4.1. Installation Template ..............8 4.2. Manual adjustment for 3-axis movements .......... 8 4.3. Lens Focus Adjustment ..............9 4.4. -
Page 4: Features
RC/RE Series - Installation Guide 1. FEATURES Camera Indoor Fixed Mini Dome IP Camera High Quality Compression in real time streaming 1/4” VGA CMOS Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) ... -
Page 5: Package Contents
RC/RE Series - Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor Extension cable (for LAN, power connector, and audio ) Quick Installation Guide Installation Template Screws and Anchor block Hex wrench driver The above contents are subject to change without prior notice. -
Page 6: Part Names
RC/RE Series - Installation Guide 3.PART NAMES ① ② ③ * Models herein and their appearance are subject to change without any prior notice. ①LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base-T Ethernet. LED1 LED2 This LED lights up as orange and turns green when the encoder is powered on. LED operation setting: For the factory default setting, LED 2 blinks for the heartbeat and LED 1 turns on for 4.5.11. -
Page 7: Installation
RC/RE Series - Installation Guide 4.INSTALLATION Connect the LAN cable, power supply cable, and the video loop out cable with the camera. Place the installation template on the ceiling. Drill two holes on the template and insert anchor blocks into the holes. -
Page 8: Installation Template
RC/RE Series - Installation Guide 4.1. Installation Template 2-Ø6 Ø125 Ø30 4.2. Manual adjustment for 3-axis movements After installation, make a manual adjustment on the inner liner. Perform 3-axis movements manually by turning the inner liner to different directions as above, and check if it moves properly. -
Page 9: Lens Focus Adjustment
RC/RE Series - Installation Guide 4.3. Lens Focus Adjustment 1) Open the dome cover from the device. 2) Uncover the latch(C) carefully to remove the lens cover. 3) Rotate the lens focus ring(D) to adjust the focus and fasten the screw(E) using the included hex wrench. -
Page 10: Connections
RC/RE Series - Installation Guide 5.CONNECTIONS DC 12V Make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the IP device. Caution Power Adaptor Connector (DC 12V) Caution www.rivatech.de... -
Page 11: Configuration
RC/RE Series - Installation Guide 6.CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment between your PC and the device is different, change your PC’s settings as below. - Page 12 RC/RE Series - Installation Guide To use the IPAdminTool and view the live video on a web page: 1. Start IPAdminTool. Names and info of currently activated devices appear as a list. 2. Right-click on the desired device and select Web view. 3.
-
Page 13: View Video Using Ip Address
RC/RE Series - Installation Guide 6.2.2.View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. -
Page 14: Appendix (A): Specifications
RC/RE Series - Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/4” VGA CMOS Effective 640 x 480 Pixels Scanning CMOS Progressive Scan system Horizontal 550 TV Lines Resolution Min. 0.9 Lux Illumination Focal Length 3.6 mm, F.# 2.0, Board type, Lens Lens for Security Camera Shutter Speed... -
Page 15: Electrical Characteristics
RC/RE Series - Installation Guide Dome: 100.0(Ф) mm Color Black *1. Scaled up resolutions *2. Developed from the scaled-up resolution Electrical Characteristics 1Vp-p, 75Ω Video Output Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), Audio Input 39 KΩ Lineout, 46mW Power, 16 Ω Audio Output Power Source(Approx) 12 V DC 230 mA... -
Page 16: Appendix (B): Dimensions
RC/RE Series - Installation Guide APPENDIX (B): DIMENSIONS Ø124 (Unit: mm) www.rivatech.de... -
Page 17: Appendix (C): Hexadecimal-Decimal Conversion Table
RC/RE Series - Installation Guide APPENDIX (C): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74... -
Page 18: Revision History
RC/RE Series - Installation Guide REVISION HISTORY MAN# DATE(M/D/Y Comments 01A.00 07/23/200 Created. 02A.00 07/04/200 FW 1.00.07 official release version 02A.01 08/06/200 Added images to package contents 02A.02 08/24/200 Added the requirement of VCA : MSXML4.0 02A.03 09/03/200 Added Power Consumption Added Focus Adjustment 02A.04 09/25/200... - Page 19 RC/RE Series - Installation Guide www.rivatech.de...
