Summary of Contents for Riva RC6602HD-5311

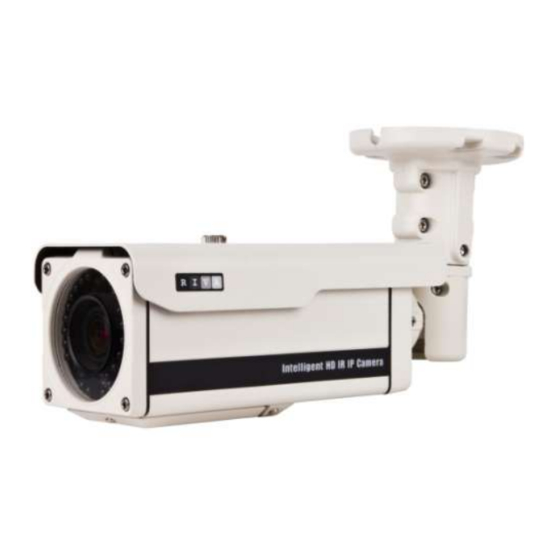

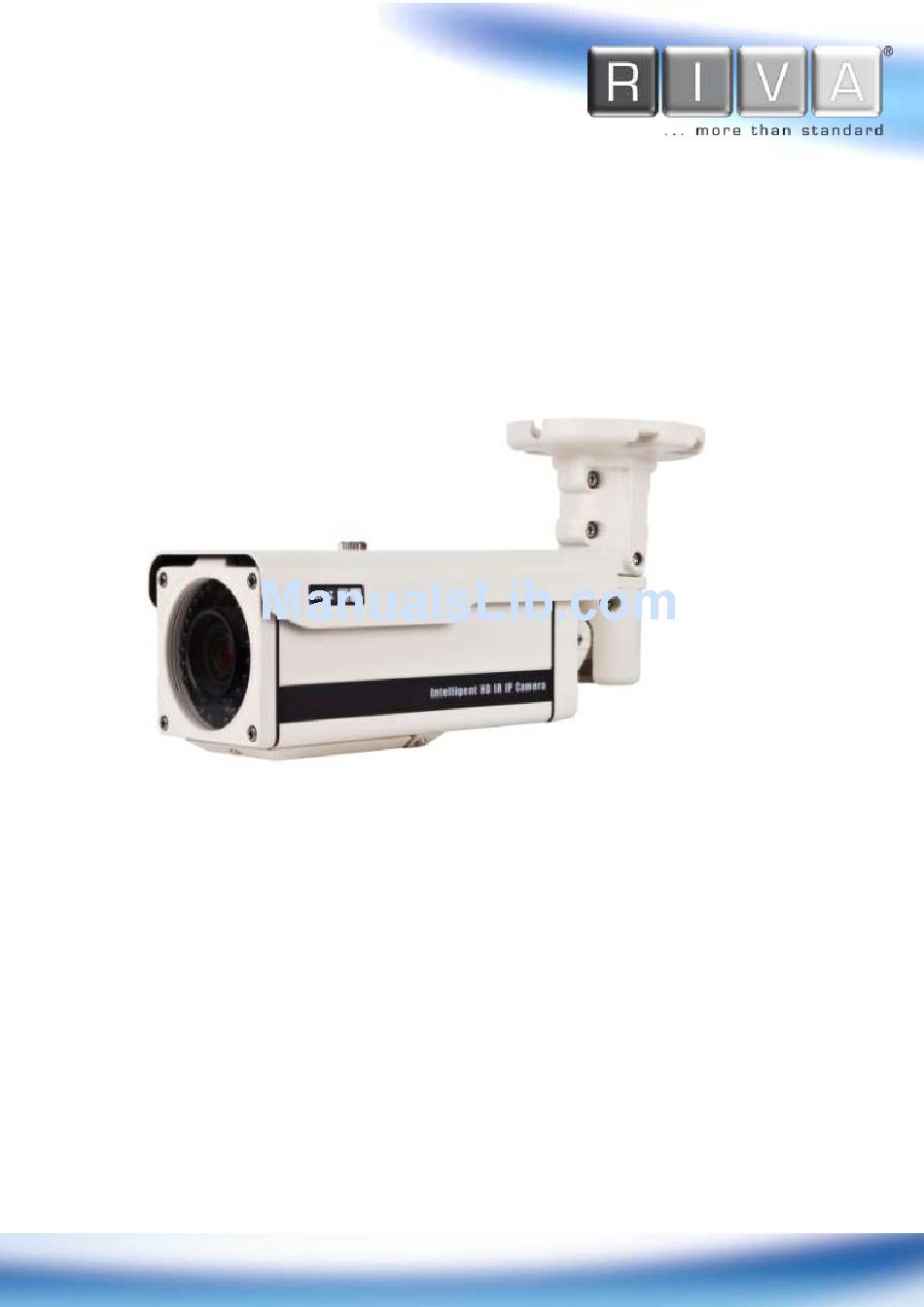

- Page 1 Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP device. www.rivatech.de...
- Page 2 Step1. Connect cables to IP device Connect required cables to the device including the power cable, LAN cable, and other optional cables. To see the correct positions of all connectors, refer to the following image below. A: DO- Cable arrange B: DO+ A : DO- C: DI+...
- Page 3 Step2. Install IP device 1) Place the installation template that is provided in the package on the desired position of installation. 2) Drill four holes on the template and insert anchor blocks into the holes. Fasten the camera housing with screws. 3) Make sure the cables are properly connected to the camera by referring to the Step 1.
-
Page 4: Step4. Set Up Network Environment
Step3. Adjust the lens focus 1) Check the video output on a Web browser. (Refer to Step 5 for more details.) 2) To adjust the zoom, focus and etc., open the bottom bracket by using driver. IPN6602HD-53 TELE WIDE NEAR NT/PAL TELE WIDE... -
Page 5: Generic Ip Environment
Generic IP Environment In case of generic private network environment where IP address 192.168.XXX.XXX are used, users may view the live streaming images on a web page using the device’s default IP address: 1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal Conversion Chart at the end of the manual. -
Page 6: Custom Ip Environment
Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. - Page 7 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 8: Step5. View Video On Web Page
Step5. View video on web page Once the device has the proper IP address, users can view the live streaming images through a web browser. root / pass The default username and password is When the device’s web address is accessed, the browser asks to install the ActiveX. Click Allow. - Page 9 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 10: Resetting To The Factory Default Settings
Rebooting Perform the following procedures to reset your device: 1. While the device is on, press the reset button for 1~2 seconds. 2. Wait for the system to reboot. Resetting to the Factory Default Settings When reset the device to the factory default setting, all parameters including the IP address will be initialized. -
Page 11: Hexadecimal-Decimal Conversion Table
Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de... - Page 12 www.rivatech.de...
Need help?
Do you have a question about the RC6602HD-5311 and is the answer not in the manual?
Questions and answers

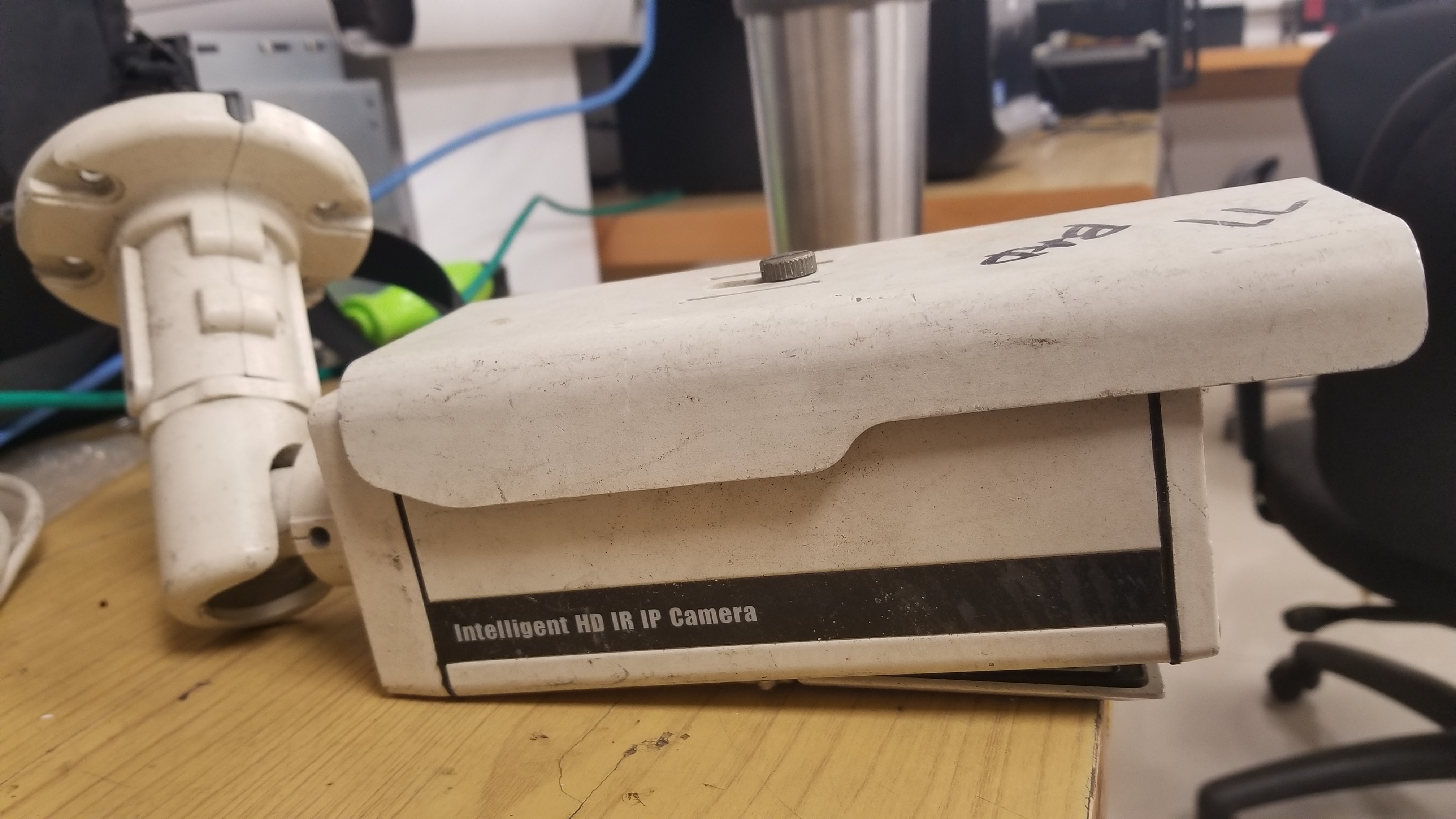

Default ip address for Intelligent HD IR IP Camera
