Page 1: Quick Installation Guide

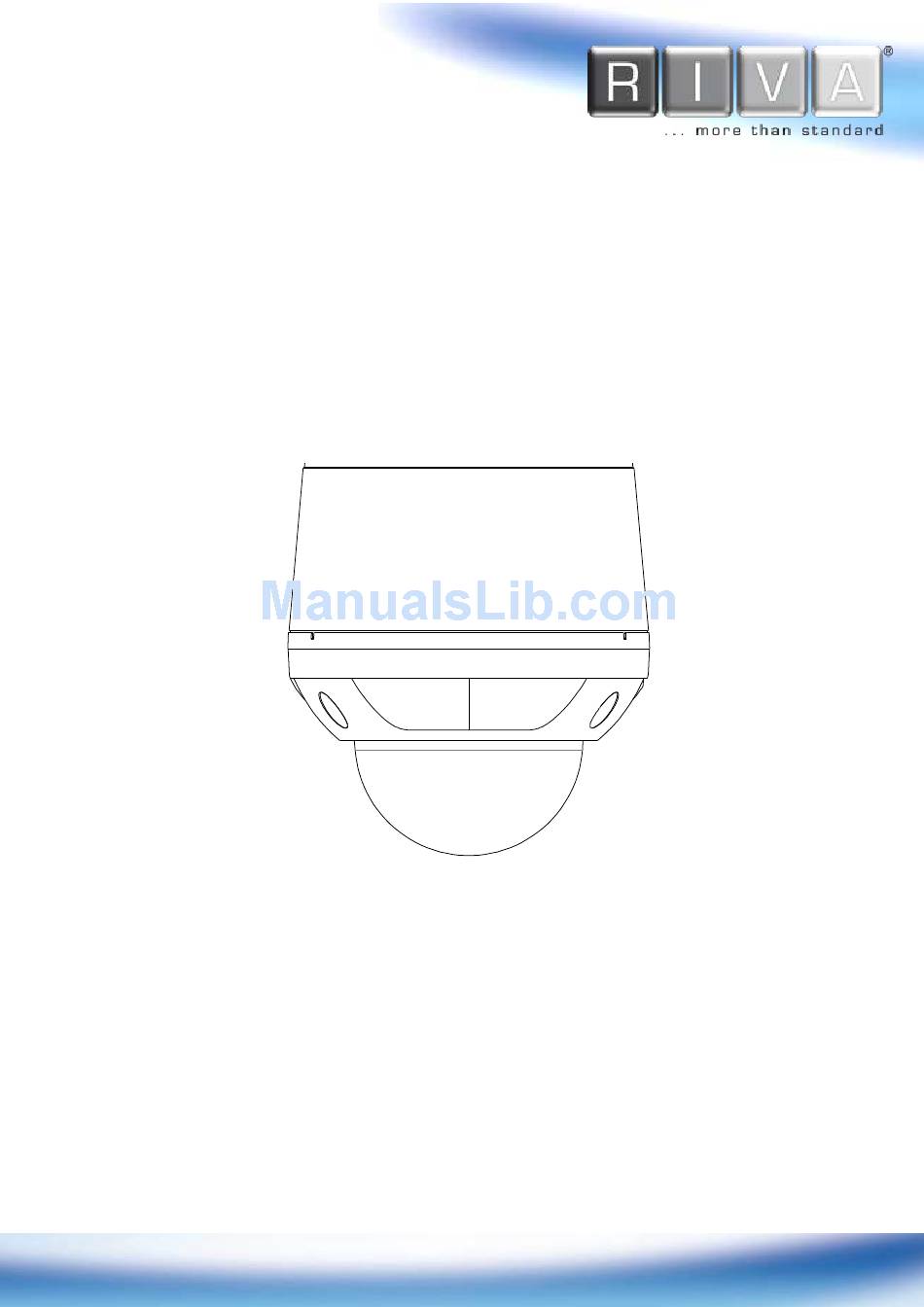

Quick Installation Guide This manual has been designed to guide you through basic settings of your IP devices, such as installation and configuration for using them. www.rivatech.de... - Page 2 Step1. Assemble and install IP device 1) Connect the LAN cable and power supply cable with the camera. For the detailed information, please refer to the Step 2. 2) Place the installation template (which is included in the package) on the ceiling 3) Drill four holes on the template and insert anchor blocks into the holes.
- Page 3 Step2. Connect cables to IP device Connect each cable to the device. To see the correct positions of all connectors, refer to the following image below. DC 12V AUDIO RS-485 Vout Reset Button AUDIO RS-485 Vout LAN Cable * Models herein and their appearance are subject to change without any prior notice.
-
Page 4: Step3. Set Up Network Environment
Step3. Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment was different between your PC and the device, change your PC’s settings as below. - Page 5 Step 4. View video on web page View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. Convert a MAC address to an IP address. Refer to the Hexadecimal-Decimal Conversion Chart at the end of this manual.
-
Page 6: Step5. Setting Ip Address
Step5. Setting IP Address To set up the Network configuration: 1. Click Setup on the upper right of the web page. The login page is displayed as below. 2. Enter the default user name (root) and the default password (pass), and then select OK. The default username and password are: root... - Page 7 Advanced setup (IPAdminTool) IPAdminTool is a utility program for IP products. Following list shows a part of features that IPAdminTool provides. Configure IP address, Subnet mask and Gateway Shows network related information such as MAC address Updates firmware ...
-
Page 8: Resetting To The Factory Default Settings
Resetting to the Factory Default Settings This will reset all parameters, including the IP address, to the Factory Default initialization. To perform the Factory Default settings: 1. Disconnect the power supply from the device. 2. Connect the power to the device with the Reset button pressed and held. 3. -
Page 9: Hexadecimal-Decimal Conversion Table
Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de... - Page 10 www.rivatech.de...
