4. 4

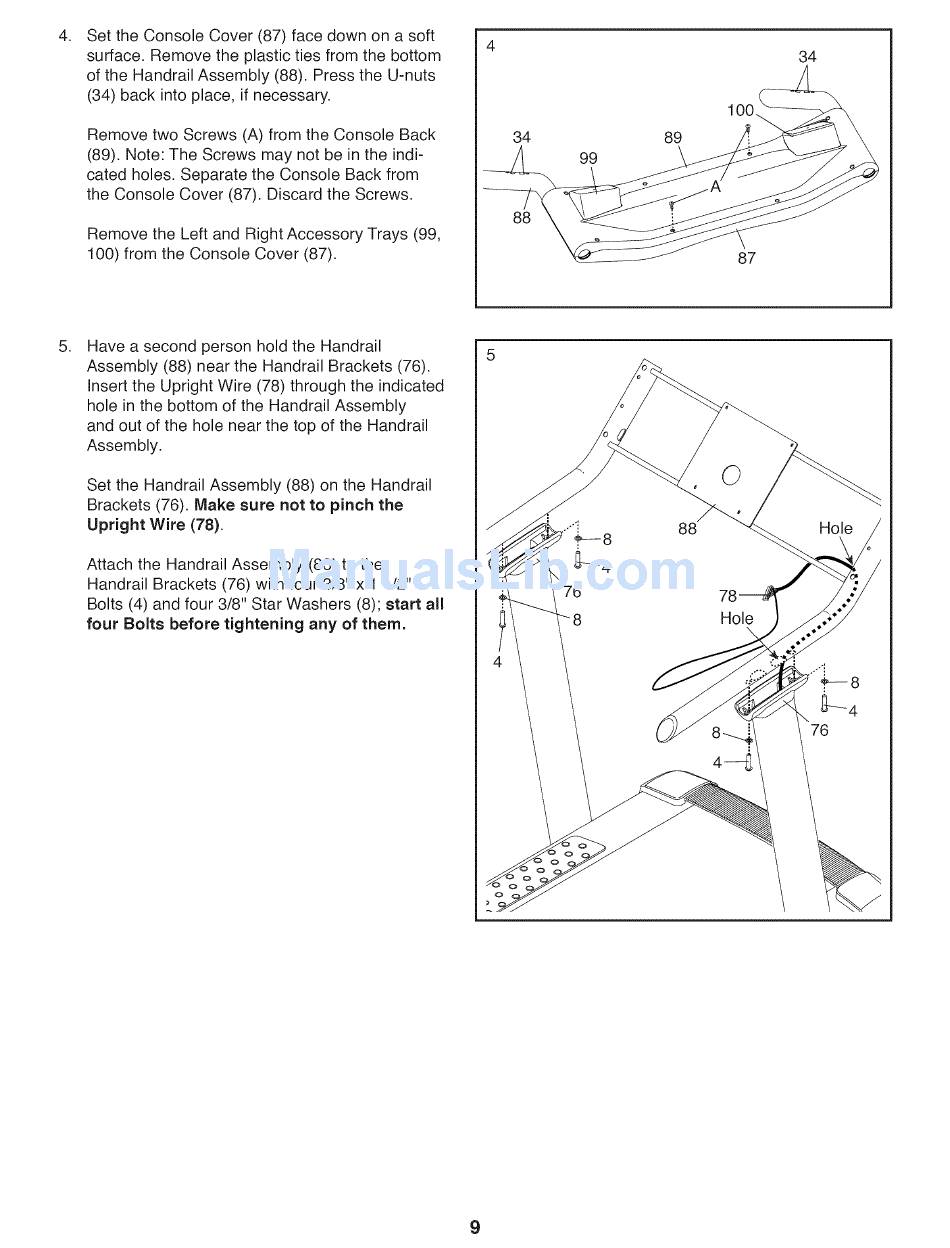

Set the Console Cover (87) face down on a soft
surface. Remove the plastic ties from the bottom
of the Handrail Assembly (88). Press the U-nuts
(34) back into place, if necessary.
Remove two Screws (A) from the Console Back
(89). Note: The Screws may not be in the indi-
cated holes. Separate the Console Back from
the Console Cover (87). Discard the Screws.
Remove the Left and Right Accessory Trays (99,
100) from the Console Cover (87).
34
88
99
89
87
34
.
Have a second person hold the Handrail
Assembly (88) near the Handrail Brackets (76).
Insert the Upright Wire (78) through the indicated
hole in the bottom of the Handrail Assembly
and out of the hole near the top of the Handrail
Assembly.
Set the Handrail Assembly (88) on the Handrail
Brackets (76). Make sure not to pinch the
Upright Wire (78).
Attach the Handrail Assembly (88) to the
Handrail Brackets (76) with four 3/8" x 1 1/2"
Bolts (4) and four 3/8" Star Washers (8); start all
four Bolts before tightening any of them.
Hole
9
