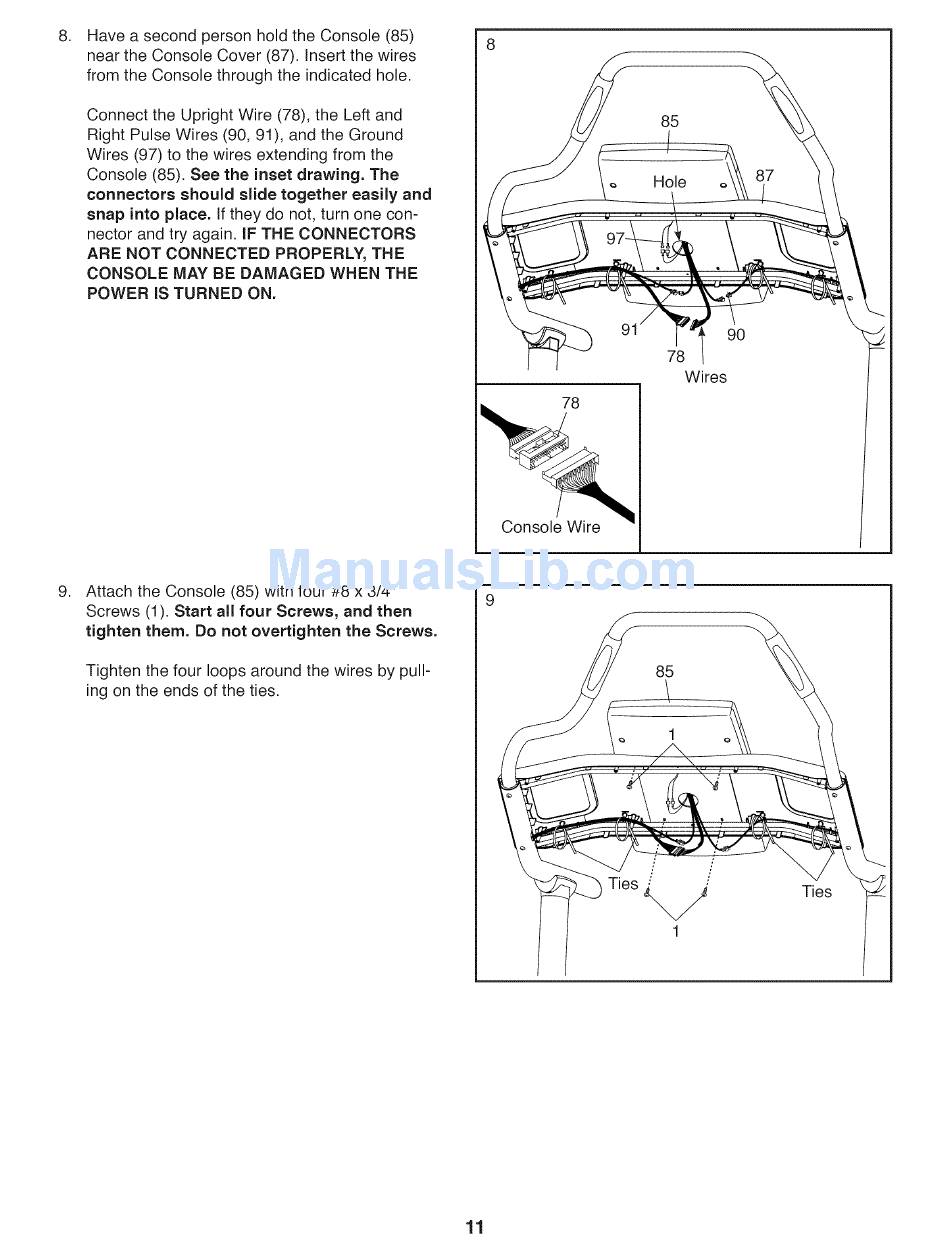

8. 8
Have a second person hold the Console (85)
near the Console Cover (87). Insert the wires
from the Console through the indicated hole.
Connect the Upright Wire (78), the Left and
Right Pulse Wires (90, 91), and the Ground
Wires (97) to the wires extending from the
Console (85). See the inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
85
o Hole
78
90
78
Wires
Console Wire
87
.
Attach the Console (85) with four #8 x 3/4"
Screws (1). Start all four Screws, and then
tighten them. Do not overtighten the Screws.
Tighten the four loops around the wires by pull-
ing on the ends of the ties.
9
85
Ties _v _
1
Ties
11
