Kit Contents

 1 CPU-for-Panel
 1 lithium battery, 3V, CR2032.
The battery is installed; pull out plastic tab
to activate it.
 1 RS485 terminal block

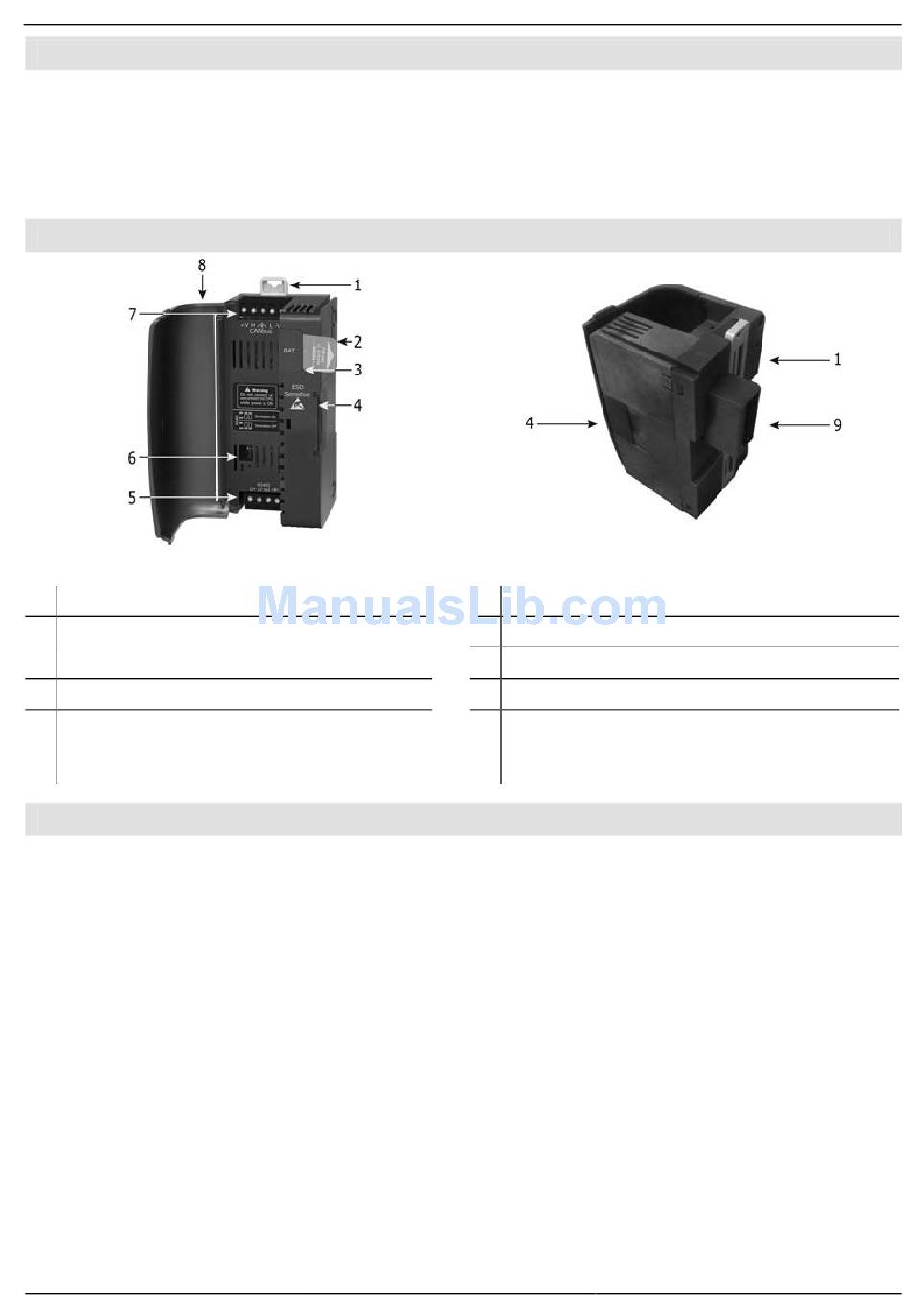

CPU-for-Panel Diagram

1 DIN-rail clips
2 Battery pull-tab
(remove during installation)
3 Battery compartment cover
4 IO/COM Bus connector, shipped
covered. Leave covered when not in
use.
Installation Space Considerations
Allocate space for:
 The HMI Panel including the CPU and any modules that will be installed on it
 Opening the doors of the CPU and modules
For exact dimensions, please refer to the Mechanical Dimensions shown below.
Unitronics
CPU-for-Panel Front and Rear View
 1 CANbus terminal block
 1 CANbus termination resistor
 1 set of module numbering stickers.
Numbering instructions are in Uni-I/O™ &
Uni-COM™ module installation guides.
5 RS485 connector
6 RS485 termination selection DIP switch
7 CANbus connector
8 CPU door
9 CPU connector to panel
UniStream™
