UniStream
PLC
This guide provides basic installation information for specific UniStream
built-in I/O. Technical specifications may be downloaded from the Unitronics website.
General Features
Unitronics' UniStream
(PLCs) with a built-in I/O configuration.
The series is available in three versions: Pro, Standard, and Basic.
Note that a model number that includes:
•
B10/C10 refers to Pro version (e.g. USC-B10-T24)
•
B5/C5 refers to Standard version (e.g. USC-B5-RA28)
•
B3/B3 refers to Basic version (e.g. only for USC-B3-T20)
Page 2 contains a comparison table detailing the features offered by the different models.
Exact features are detailed in the product specification sheets.
Power
Features
COM
Options
COM
Protocols
Programming
Software
HMI
Unitronics
®
®

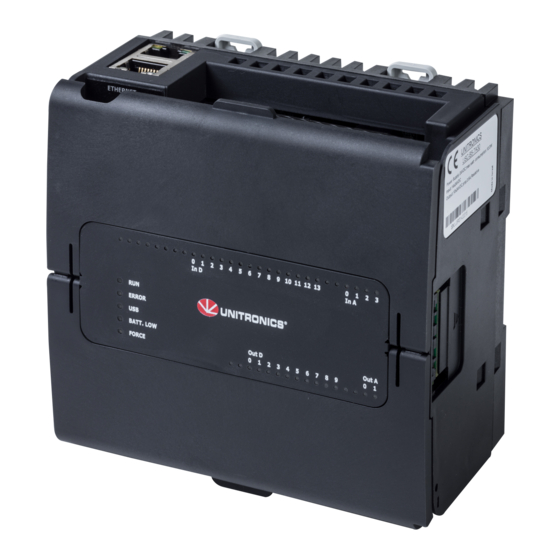

PLCs are DIN-rail mounted Programmable Logic Controllers
▪ Built-in Trends and Gauges, auto-tuned PID, data tables, data
sampling, and Recipes
▪ UniApps™: Access & edit data, monitor, troubleshoot & debug
and more
▪ Security: Multi-level password protection
▪ Alarms: Built-in system, ANSI/ISA standards
▪ Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port
▪ Add-on ports (UAC-CB), available by separate order:
➢ 1 CANbus port may be added to all models
➢ RS232/485 ports: according to model technical specifications
▪ Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.
Implement any serial RS232/485, TCP/IP, or CANbus third-party
protocols via Message Composer
▪ Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,
FTP Server/Client, Web Server, SQL, and MQTT.
▪ Remote Access via any device that supports VNC.
All-in-One UniLogic software for hardware configuration,
communications, PLC and HMI applications; free download.
All UniStream® PLCs can display HMI screens on the following devices:
•
UniStream Display (USL)
•
UniStream Modular HMI panel (USP)
•
UniStream Built-in (on the panels integral to the device)
•
Any device screen that supports VNC
Installation Guide
USC-B5-R38, USC-B10-R38,
USC-C5-R38, USC-C10-R38,
USC-B5-T42, USC-B10-T42,
USC-C5-T42, USC-C10-T42
®
PLC models with
1
Advertisement
Table of Contents
Related Manuals for Unitronics UniStream USC-B5-R38
Summary of Contents for Unitronics UniStream USC-B5-R38
- Page 1 USC-B5-T42, USC-B10-T42, USC-C5-T42, USC-C10-T42 This guide provides basic installation information for specific UniStream ® PLC models with built-in I/O. Technical specifications may be downloaded from the Unitronics website. General Features Unitronics’ UniStream ® PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs) with a built-in I/O configuration.
- Page 2 USB device (programming No** port) * Note that B3/C3 models do not support features requiring SD cards. In addition, Alarm History is not retained after PLC reset. ** Note that B3/C3 models may be programmed only via Ethernet cable. Unitronics...
-
Page 3: Before You Begin
Use caution. ▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. ▪ Please dispose of this product according to local and national standards and regulations. -
Page 4: Kit Contents
(Not shown) Connection point for connector Uni-I/O™ modules and I/O expansion adapters, shipped covered. Leave covered when not in use. CONFIRM Used to implement and confirm USB Actions. Button USB Host Provides the interface for port external USB devices. Unitronics... -
Page 5: Mechanical Dimensions
▪ Any modules that will be installed; ensure you allow space to install/uninstall modules Module dimensions and installation instructions are in the modules’ specifications. For exact dimensions, please refer to the Mechanical Dimensions shown below. Mechanical Dimensions Front View Bottom View Unitronics... - Page 6 ▪ Note that disconnecting the battery halts the preservation of back-up values and causes them to be deleted. 1. Open the bottom and inner doors. If there is a battery present, remove it. 3. Slide the battery into place. Unitronics...
- Page 7 1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches). 2. Unscrew the terminal to its widest position before inserting a wire. 3. Insert the wire completely into the terminal to ensure a proper connection. 4. Tighten enough to keep the wire from pulling free. Unitronics...
- Page 8 ➢ Keep shield connections as short as possible. ➢ Ensure shield continuity when extending shielded cables. For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Power Supply The controller requires an external power supply.
- Page 9 ▪ I10-I23 share common CM2 Each group may be wired together as sink or source. Inputs I10-I17 can be configured as either normal digital inputs or as high speed inputs that can receive high speed pulse signals from sensors or shaft encoders. Unitronics...
- Page 10 ▪ Input modes are set both by wiring and software. Input wiring, sink Input wiring, source High Speed Input wiring, sink High Speed Input wiring, source Use sink input wiring to connect a sourcing (pnp) device. Use source input wiring to connect a sinking (npn) device. Unitronics...
- Page 11 ▪ The mode is determined by the hardware configuration within the software application. ▪ Note that if, for example, you wire the input to current, you must also set it to current in the software application. Voltage Differential Single-ended Current 2-wire 3-wire 4-wire Unitronics...
- Page 12 The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
