Unitronics UniStream Display Installation Manual

Hide thumbs Also See for UniStream Display:

Advertisement

Table of Contents

UniStream
Display

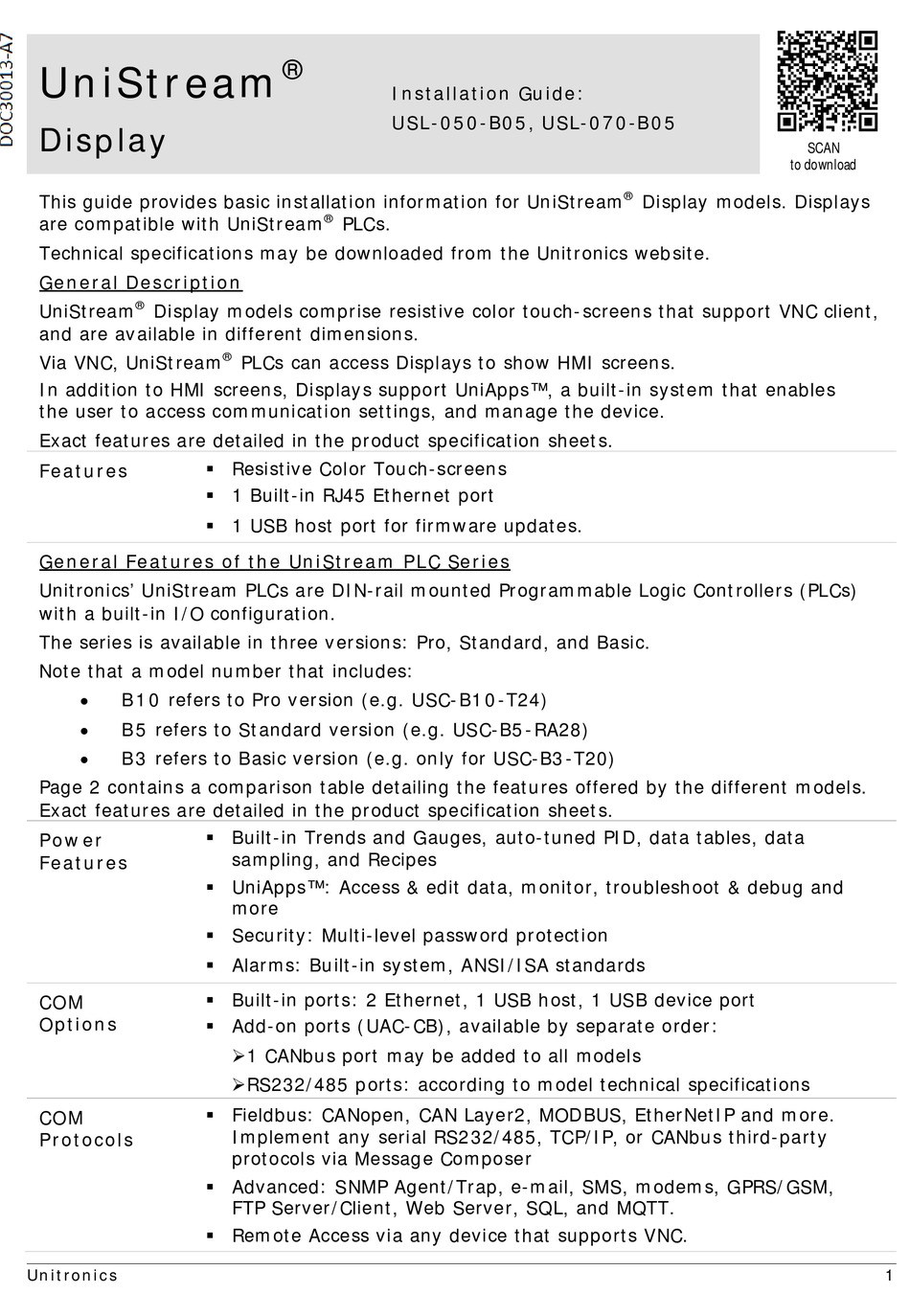

This guide provides basic installation information for UniStream
are compatible with UniStream
Technical specifications may be downloaded from the Unitronics website.

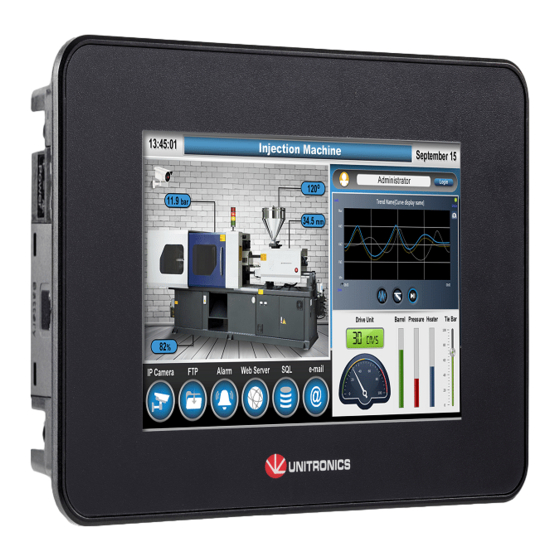

General Description
®
UniStream
Display models comprise resistive color touch-screens that support VNC client,
and are available in different dimensions.
Via VNC, UniStream
In addition to HMI screens, Displays support UniApps™, a built-in system that enables
the user to access communication settings, and manage the device.
Exact features are detailed in the product specification sheets.
Features
General Features of the UniStream PLC Series
Unitronics' UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs)
with a built-in I/O configuration.
The series is available in three versions: Pro, Standard, and Basic.
Note that a model number that includes:
B10 refers to Pro version (e.g. USC-B10-T24)
•
B5 refers to Standard version (e.g. USC-B5-RA28)
•
B3 refers to Basic version (e.g. only for USC-B3-T20)
•
Page 2 contains a comparison table detailing the features offered by the different models.
Exact features are detailed in the product specification sheets.
Power
Features
COM
Options
COM
Protocols
Unitronics
®
®
PLCs.
®
PLCs can access Displays to show HMI screens.
 Resistive Color Touch-screens
 1 Built-in RJ45 Ethernet port
 1 USB host port for firmware updates.
 Built-in Trends and Gauges, auto-tuned PID, data tables, data
sampling, and Recipes
 UniApps™: Access & edit data, monitor, troubleshoot & debug and
more
 Security: Multi-level password protection
 Alarms: Built-in system, ANSI/ISA standards
 Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port
 Add-on ports (UAC-CB), available by separate order:
1 CANbus port may be added to all models
RS232/485 ports: according to model technical specifications
 Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.
Implement any serial RS232/485, TCP/IP, or CANbus third-party
protocols via Message Composer
 Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,
FTP Server/Client, Web Server, SQL, and MQTT.
 Remote Access via any device that supports VNC.
Installation Guide:
USL-050-B05, USL-070-B05
to download
®
Display models. Displays
SCAN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniStream Display and is the answer not in the manual?

Questions and answers

Related Manuals for Unitronics UniStream Display

Summary of Contents for Unitronics UniStream Display

  • Page 1  1 USB host port for firmware updates. General Features of the UniStream PLC Series Unitronics’ UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs) with a built-in I/O configuration. The series is available in three versions: Pro, Standard, and Basic.
  • Page 2 Programming All-in-One UniLogic software for hardware configuration, Software communications, PLC and HMI applications; free download. All UniStream® PLCs can display HMI screens on the following devices: UniStream Display (USL) • UniStream Modular HMI panel (USP) • • UniStream Built-in (on the panels integral to the device) Any device screen that supports VNC •...

  • Page 3: Alert Symbols And General Restrictions

    Use caution.  All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples.  Please dispose of this product according to local and national standards and regulations.

  • Page 4: Product Diagram

    Ethernet cable. USB Host port Provides the interface for system updates and system log access. Power Supply Connection point for the Display power source. Input Connect the Terminal Block supplied with the kit to the end of the power cable. Unitronics...

  • Page 5: Mechanical Dimensions

    ® UniStream Display Installation Space Considerations Allocate space for:  the device  access to ports For exact dimensions, please refer to the Mechanical Dimensions shown below. Mechanical Dimensions USL-050-B05 Unitronics...
  • Page 6 ® UniStream Display USL-070-B05 Panel Mounting  Mounting panel thickness must be less or equal to 5mm (0.2”).  Ensure that the space considerations are met. Unitronics...
  • Page 7  Use over-current protection, such as a fuse or circuit breaker, to avoid excessive currents into the power supply connection point.  Unused points should not be connected (unless otherwise specified). Ignoring this directive may damage the device.  Double-check all wiring before turning on the power supply. Unitronics...
  • Page 8 Ensure shield continuity when extending shielded cables.  For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Power Supply The device requires an external power supply.  In the event of voltage fluctuations or non-conformity to voltage power supply specifications, connect the device to a regulated power supply.
  • Page 9 Connect button is activated; tap it to initiate the VNC connection. With Exit Selecting the With Exit option places an Exit VNC button on screen during a VNC session. This can be tapped in order to exit to UniApps. Unitronics...

  • Page 10: Upgrading Firmware

    Software. The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
