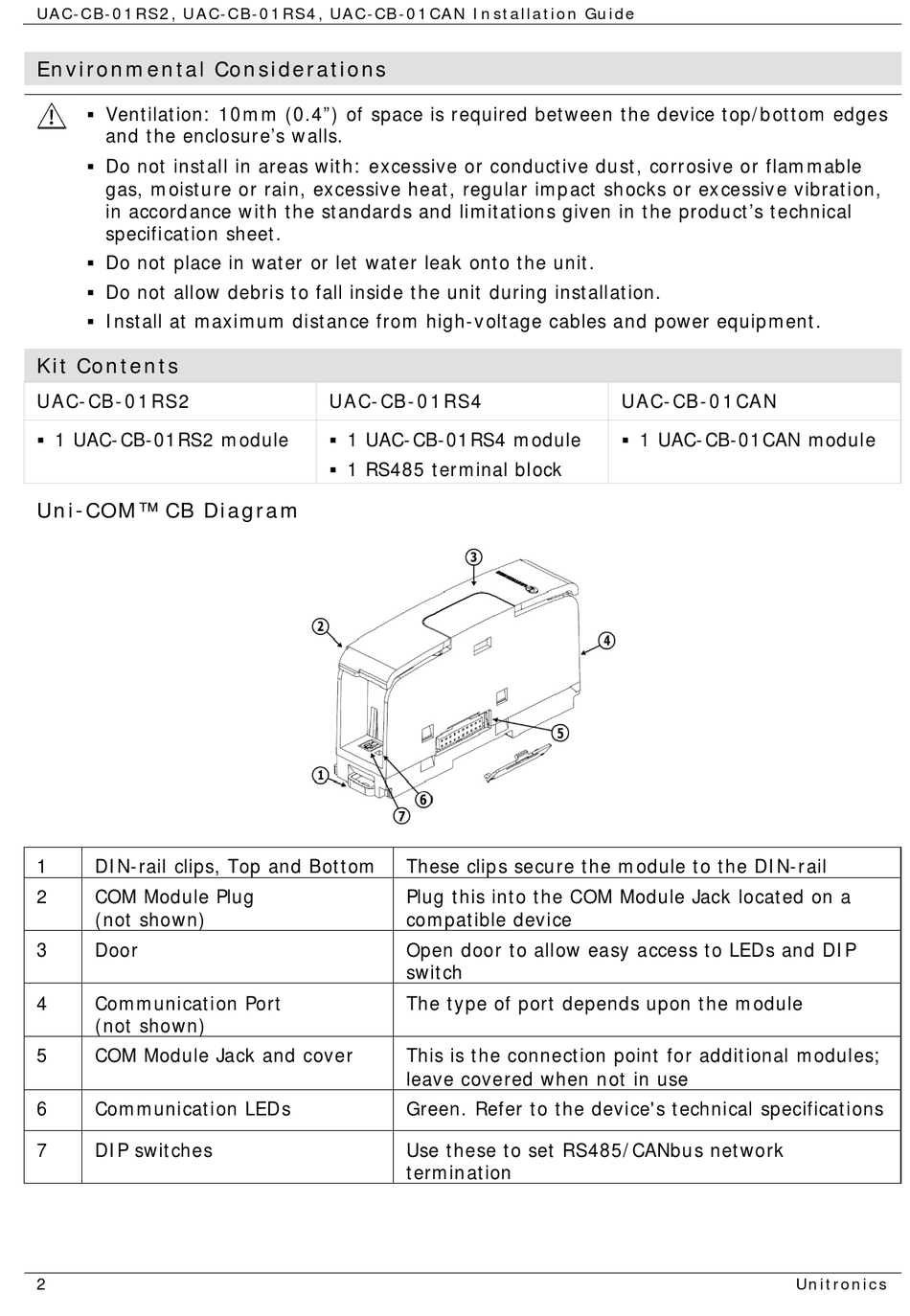

UAC-CB-01RS2, UAC-CB-01RS4, UAC-CB-01CAN Installation Guide
Environmental Considerations
Ventilation: 10mm (0.4") of space is required between the device top/bottom edges
and the enclosure's walls.
Do not install in areas with: excessive or conductive dust, corrosive or flammable
gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,
in accordance with the standards and limitations given in the product's technical
specification sheet.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Install at maximum distance from high-voltage cables and power equipment.
Kit Contents
UAC-CB-01RS2
1 UAC-CB-01RS2 module
Uni-COM™ CB Diagram
1
DIN-rail clips, Top and Bottom
2
COM Module Plug
(not shown)
3
Door
4
Communication Port
(not shown)
5
COM Module Jack and cover
6
Communication LEDs
7
DIP switches
2
UAC-CB-01RS4
1 UAC-CB-01RS4 module
1 RS485 terminal block
These clips secure the module to the DIN-rail
Plug this into the COM Module Jack located on a
compatible device
Open door to allow easy access to LEDs and DIP
switch
The type of port depends upon the module
This is the connection point for additional modules;
leave covered when not in use
Green. Refer to the device's technical specifications
Use these to set RS485/CANbus network
termination
UAC-CB-01CAN
1 UAC-CB-01CAN module
