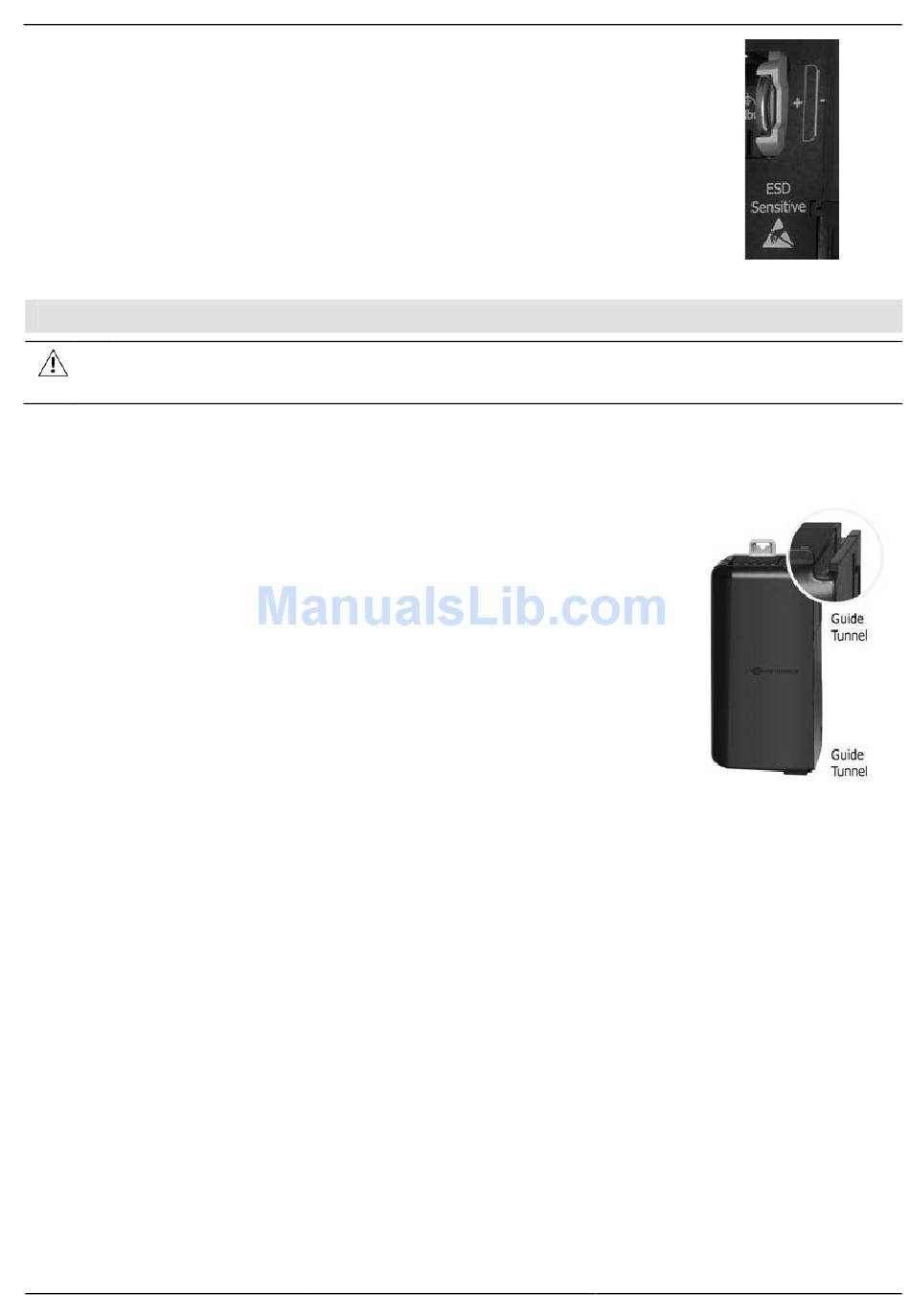

1. Open the CPU door and remove the battery cover.
2. Remove the used battery and insert the new one, ensuring that
the polarity is aligned with the polarity drawing as shown in the
accompanying figure.
3. Replace the battery cover.
4. Dispose of the used battery according to local and national
standards and regulations.

Installation

 Turn off system power before connecting or disconnecting any modules or devices.
 Use proper precautions to prevent Electro-Static Discharge (ESD).
The AUX connector on the back of the HMI panel provides the connection point for the
CPU-for-Panel, including power.
The DIN-rail type structure on the back of the panel provides the
physical support.
1. Remove the AUX connector cover from the panel (the cover
may be saved for future use).
2. If a Uni-I/O™ or Uni-COM™ module, or a Local Expansion Kit is
to be connected to the CPU-for-Panel, remove the IO/COM Bus
connector cover.
3. Plug the CPU-for-Panel into the HMI Panel AUX connector. If an
adjacent module is already installed, slide the CPU-for-Panel
into place via the guide tunnels shown in the accompanying
figure.
4. Verify that the DIN-rail clips located on the top and bottom of
the CPU-for-Panel have snapped onto the DIN-rail structure on
the back of the panel.

Removing the CPU-for-Panel

1. Power off the HMI Panel before removing the CPU-for-Panel.
2. Disconnect the RS485 and the CANbus connectors (if relevant).
3. Disconnect the module connected to the CPU (by pushing its Bus Connector lock to the
right).
4. On the CPU-for-Panel pull the top DIN-rail clip up and the bottom clip down.
5. Pull the CPU-for-Panel out of its place.
