UniStream
®
Built-in
This guide provides basic installation information for specific UniStream
downloaded from the Unitronics website.
General Features

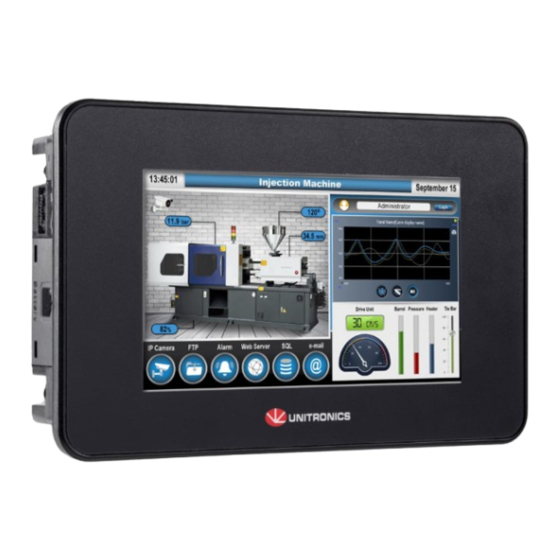

Unitronics' UniStream
®
Built-in series are PLC+HMI All-in-One programmable controllers that comprise a built-in CPU, an HMI
panel, and built-in I/Os.
The series is available in two versions: UniStream Built-in and UniStream Built-in Pro.
Note that a model number that includes:
•
B5/C5 refers to UniStream Built-in
•
B10/C10 refers to UniStream Built-in Pro. These models offer additional features, detailed below.
HMI
Power
Features
I/O
Options
COM
Options
COM
Protocols
Programming
Software
Comparison table
Unitronics
▪ Resistive Color Touch-screens
▪ Rich graphic library for HMI design
▪ Built-in Trends and Gauges, auto-tuned PID, data tables, data sampling, and Recipes
▪ UniApps™: Access & edit data, monitor, troubleshoot & debug and more – via HMI or remotely via
VNC
▪ Security: Multi-level password protection
▪ Alarms: Built-in system, ANSI/ISA standards
▪ Built-in I/O configuration, varies according to model
▪ Local I/O via UAG-CX series I/O expansion adapters and standard UniStream Uni-I/O™ modules
▪ Remote I/O using UniStream Remote I/O or via EX-RC1
▪ US15 only – Integrate I/O into your system by using UAG-BACK-IOADP, snap onto the panel for an all-
in-one configuration.
▪ Built-in ports: 1 Ethernet, 1 USB host, 1 Mini-B USB device port (USB-C in US15)
▪ Serial and CANbus ports may be added via UAC-CX modules
▪ Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more. Implement any serial RS232/485,
TCP/IP, or CANbus third-party protocols via Message Composer
▪ Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM, VNC Client, FTP Server/Client
All-in-One software for hardware configuration, communications, and HMI /PLC applications, available as
a free download from Unitronics.
Feature
System Memory
Audio Jack
Video/RSTP Support
Web Server
SQL Client
User Guide
US5-B5-B1, US5-B10-B1, US5-B5-TR22,
US5-B10-TR22, US5-B5-T24, US5-B10-T24,
US5-C5-B1, US5-C10-B1, US5-C5-TR22,
US5-C10-TR22, US5-C5-T24, US5-C10-T24
US7-B5-B1, US7-B10-B1, US7-B5-TR22,
US7-B10-TR22, US7-B5-T24, US7-B10-T24,
US7-C5-B1, US7-C10-B1, US7-C5-TR22,
US7-C10-TR22, US7-C5-T24, US7-C10-T24
US10-B5-B1, US10-B10-B1, US10-B5-TR22,
US10-B10-TR22, US10-B5-T24, US10-B10-T24,
US10-C5-B1, US10-C10-B1, US10-C5-TR22,
US10-C10-TR22, US10-C5-T24, US10-C10-T24
US15-B10-B1, US15-C10-B1
®
models with built-in I/O. Technical specifications may be
B5/C5
3GB
No
No
No
No
B10/C10 (Pro)
6GB
Yes
Yes
Yes
Yes
1
Advertisement
Related Manuals for Unitronics UniStream US15-B10-B1
Summary of Contents for Unitronics UniStream US15-B10-B1
- Page 1 US15-B10-B1, US15-C10-B1 This guide provides basic installation information for specific UniStream ® models with built-in I/O. Technical specifications may be downloaded from the Unitronics website. General Features Unitronics’ UniStream ® Built-in series are PLC+HMI All-in-One programmable controllers that comprise a built-in CPU, an HMI panel, and built-in I/Os.
-
Page 2: Environmental Considerations
Class I, Division 2, Groups A, B, C and D These Release Notes relate to all Unitronics products that bear the UL symbols used to mark products that have been approved for use in hazardous locations, Class I, Division 2, Groups A, B, C and D. -
Page 3: Panel Mounting
Class I, Division 2, Groups A, B, C et D. Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D. -
Page 4: Product Diagram
Separate order. Installation Space Considerations Allocate space for: ▪ the controller ▪ any modules that will be installed ▪ access to ports, jacks, and the microSD card slot For exact dimensions, please refer to the Mechanical Dimensions shown below. Unitronics... - Page 5 ® UniStream Built-in Mechanical Dimensions UniStream 5” UniStream 7" Unitronics...
- Page 6 ® UniStream Built-in UniStream 10.1" UniStream 15.6" Unitronics...
- Page 7 When properly mounted, the panel is squarely situated in the panel cut-out as shown below. ▪ Do not apply torque exceeding 0.35 N·m (3.1 in-lb) of torque to tighten the bracket screws. Using Caution excessive force to tighten the screw can damage this product. UniStream 5” UniStream 7” UniStream 10.1” Unitronics...
-
Page 8: Battery: Back-Up, First Use, Installation, And Replacement
3. Insert the battery, ensuring that the polarity is aligned with the polarity marking as shown in the accompanying figure. 4. Replace the battery cover. 5. Dispose of the used battery according to local and national standards and regulations. Unitronics... -
Page 9: Wiring Procedure
) to the earth of the system (preferably to the metal cabinet chassis). Use the shortest and thickest wires possible: less than 1m (3.3’) in length, minimum thickness 14 AWG (2 mm ▪ Connect the power supply 0V to the earth of the system. Unitronics... -
Page 10: Wiring The Digital Inputs
Ensure shield continuity when extending shielded cables. ➢ For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Power Supply The controller requires an external power supply. ▪ In the event of voltage fluctuations or non-conformity to voltage power supply specifications, connect the device to a regulated power supply. -
Page 11: Wiring The Analog Inputs
▪ The mode is determined by the hardware configuration within the software application. ▪ Note that if, for example, you wire the input to current, you must also set it to current in the software application. Voltage Differential Single-ended Current 2-wire 3-wire 4-wire Unitronics... - Page 12 ▪ Outputs O8 and O9 can independently be configured as either normal digital outputs or as high speed PWM outputs. ▪ Outputs O8 and O9 share the common point CM4. Normal Transistor Output High Speed PWM Output Unitronics...
- Page 13 3. Unscrew and remove the mounting brackets, taking care to support the device to prevent it from falling during this procedure. The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
- Page 14 ® Built-in series are PLC+HMI All-in-One programmable controllers that comprise built-in HMI and built-in I/Os. UniStream connects directly to UniCloud, Unitronics' IIoT cloud platform using built-in UniCloud connectivity. More information about UniCloud is available at www.unitronics.cloud. Model numbers in this document US 5 - B •...
-
Page 15: Power Supply
Add up to 3 ports to a single controller using Uni-COM™ UAC-CX Modules Internal memor Standard (B5/C5) Pro (B10/C10) RAM: 512MB RAM: 1GB ROM: 3GB system memory ROM: 6GB system memory 1GB user memory 2GB user memory Ladder memory 1 MB Unitronics... -
Page 16: Input Type
Off state: 0-5VDC, 1mA max. 4kΩ Nominal impedance Filter 6ms typical Analog Inputs (T24,TR22 models) Number of inputs Input range (6) (7) Input Type Nominal Values Over-range Values * 0 ≤ Vin ≤ 10VDC 10 < Vin ≤ 10.15VDC 0 ÷ 10VDC Unitronics... -
Page 17: Update Time
1,500VAC for 1 minute Output to output within None group Current 2A maximum per output (Resistive load) Voltage 250VAC / 30VDC maximum Minimum load 1mA, 5VDC Switching time 10ms maximum Short-circuit protection None Life expectancy (10) 100k operations at maximum load Unitronics... - Page 18 PWM Frequency (11) O0, O1: 3kHz max. (Load resistance < 4kΩ) Short-circuit protection Source Transistor Outputs Power Supply (USx-xx-T24) Nominal operating voltage 24VDC 20.4 – 28.8VDC Operating voltage Maximum current 30mA@24VDC consumption Current consumption does not include load current Unitronics...
- Page 19 0.68 Kg (1.5 lb) US7-xx-T24 0.68 Kg (1.5 lb) US10-xx-B1 1.02 Kg (2.25 lb) Refer to the images on page 8 US10-xx-TR22 1.08 Kg (2.38 lb) US10-xx-T24 1.08 Kg (2.38 lb) US15-xx-B1 2.68Kg (5.9 lb) Refer to the images on page 9 Unitronics...
- Page 20 ® UniStream Built-in UniStream 5” UniStream 7" UniStream 10.1" Unitronics...
- Page 21 ® UniStream Built-in UniStream 15.6" Unitronics...
- Page 22 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
