Kit Contents - Unitronics UniStream PLC Series Installation Manual

Kit Contents

 1 UniStream PLC
 1 power terminal block

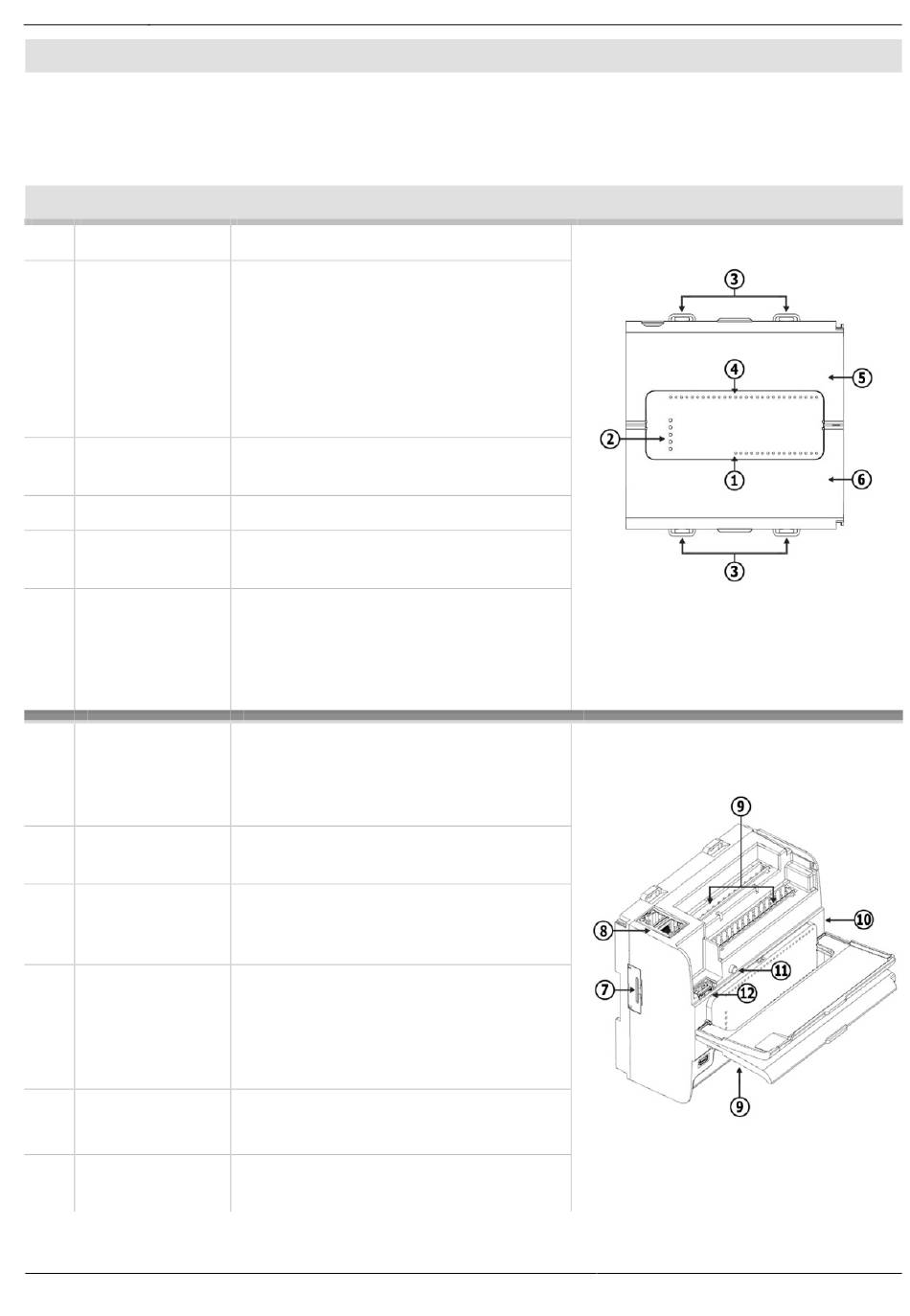

Product Diagram
1 Output LEDs
2 Status LEDs
3 DIN-rail clips
4 Input LEDs
5 Top Door,
Closed
6 Bottom Door,
Closed
7 Uni-COM™
Jack
8 Ethernet
ports
9 Input/Output
connection
points
10 I/O Bus
connector
11 CONFIRM
Button
12 USB Host
port
4
Green / Red LEDs
Tricolor LEDs, Green/Red/Orange
From top to bottom: RUN,
ERROR, USB, BATT. LOW, and
FORCE.
Note that LED indications are
listed in the product's technical
specifications.
Clips at top and bottom
physically support the device
Green / Red LEDs
Covers the Confirm button and
the USB Host port
Covers the internal door
protecting the battery and
microSD slot.
Connection port for Uni-COM CB
modules*. Shipped covered;
leave cover in place when not in
use.
Two ports for Ethernet
communications.
Model-dependent. Present in
models with built-in I/O
configurations.
(Not shown) Connection point for
Uni-I/O™ modules and I/O
expansion adapters, shipped
covered. Leave covered when not
in use.
Used to implement and confirm
USB Actions.
Provides the interface for
external USB devices.
 3 I/O terminal blocks (provided only with
models comprising built-in I/Os)
 1 Battery
®
UniStream
Front View
Top View
Unitronics
PLC
