Installation and Reference Manual
3 Control – A
10 Control – B
5 Indicate – A
12 Indicate – B
6 SE-Timing – A
13 SE-Timing B
8 Ground
End A hood is connected to the Screened Cable Drain Wire.
End B is not connected to the screen in any way

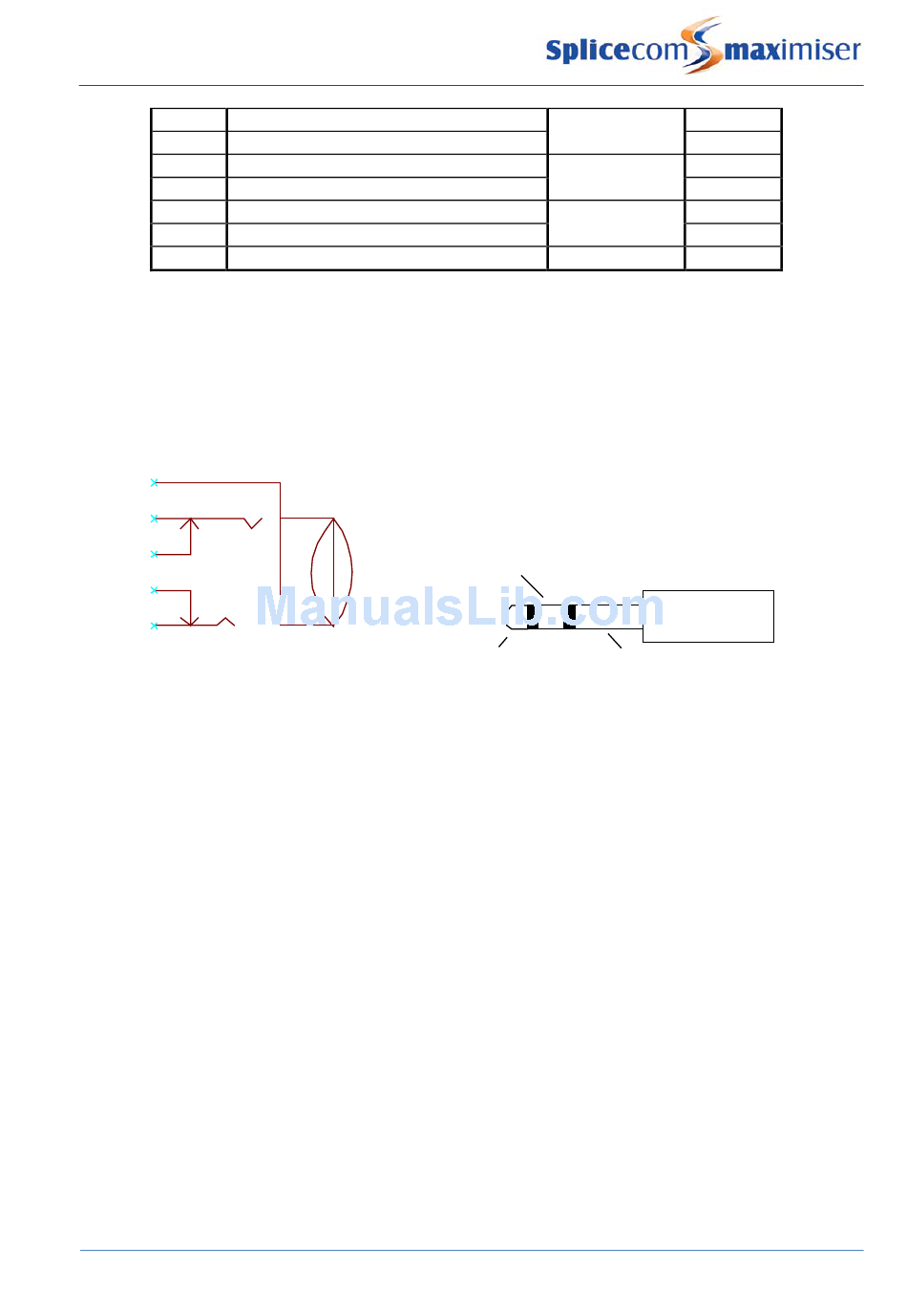

Relay Outputs

External devices may be switched by the relay outputs provided by the 3.5mm stereo jack sockets.
1
2
3
4
5
Socket
Pin Description
1 Connected to unit chassis
2 Relay contact
3 Not connected
4 Not connected
5 Relay contact
The shield connector of the mating plug is connected to the unit chassis.
The on board relays are solid state optically isolated devices that can connect plug contacts "channel A" to
"channel B". Their characteristics are as follows:
Switching ability = a.c. or d.c signals of either polarity.
Absolute Maximum Voltage = 60V peak. Beyond this, damage will occur.
Recommended Maximum Voltage = 48V.
Maximum relay on impedance = 15 Ohms.
Minimum relay off impedance = 500MOhms.
Recommended Maximum current = 140mA.
Current Limit = 300mA.
330
Twisted
Pair
Twisted
Pair
Twisted
Pair
-----
Channel B
Channel A
Plug
3
10
5
12
6
13
8
Shield
Installation and Reference Manual v3.2/0410/6
Technical Data
