To ensure that calls are not made to the "music on hold" port it is recommended that the User assigned
to this port has Do Not Disturb set and voicemail is not enabled.
Please note: it is your responsibility to make your own arrangements with the Performance Rights Society
(www.prs.co.uk) regarding licences for playing regular CD tracks.

Using Events

Events allow web pages to be sent to a PCS 60, 50 or 410/400 to display a message, for example, alert
Users of a fire alarm, inform Users of maintenance on the network, etc.
Closing an external input contact or dialling a Dial Plan entry can activate an Event. An Event will only
display the web page on a PCS 60, 50 or 410/400 connected to the Call Server where the Event was
generated.
By default, the configuration contains 100 pre-configured
Events. Event 0 will display each User's Home Page, Event
1 will display input1.php, and similarly Event 2 to 99 will
display input2.php, input3.php etc. These files are stored
on the internal Web Server and can be amended as
required. The example pages will switch back to the
User's previous page after 30 seconds; this is a result of
the programming of these pages and not of the system.
Please refer to the Internal Web Server section from page 184 for details on how to accessing these web
pages.

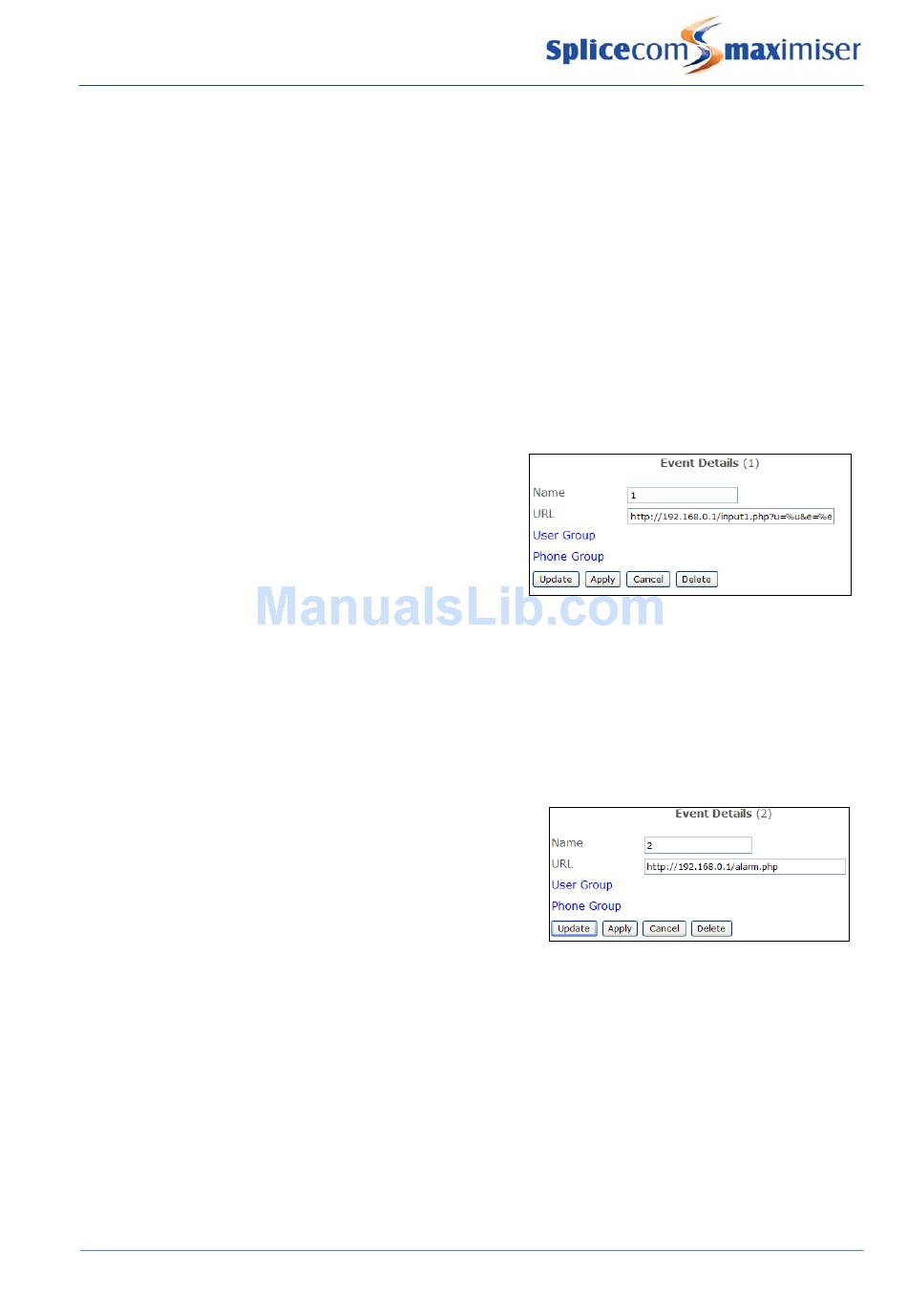

Amending an existing Event
An existing Event can be amended to display the required web page when the Event is activated.
1 In Manager select Events
2 From the Events List select the event to be amended
3 In the URL field enter the address to the web page to
be displayed when this event is activated. If this field
is left blank the Event will display the User's Home
Page.
4 Select Update or Apply when ready.
Activating an Event
An Event can be activated by either:
1 A Dial Plan entry, as per the following example.
Configuring PBX functionality
Installation and Reference Manual v3.2/0410/6 181
