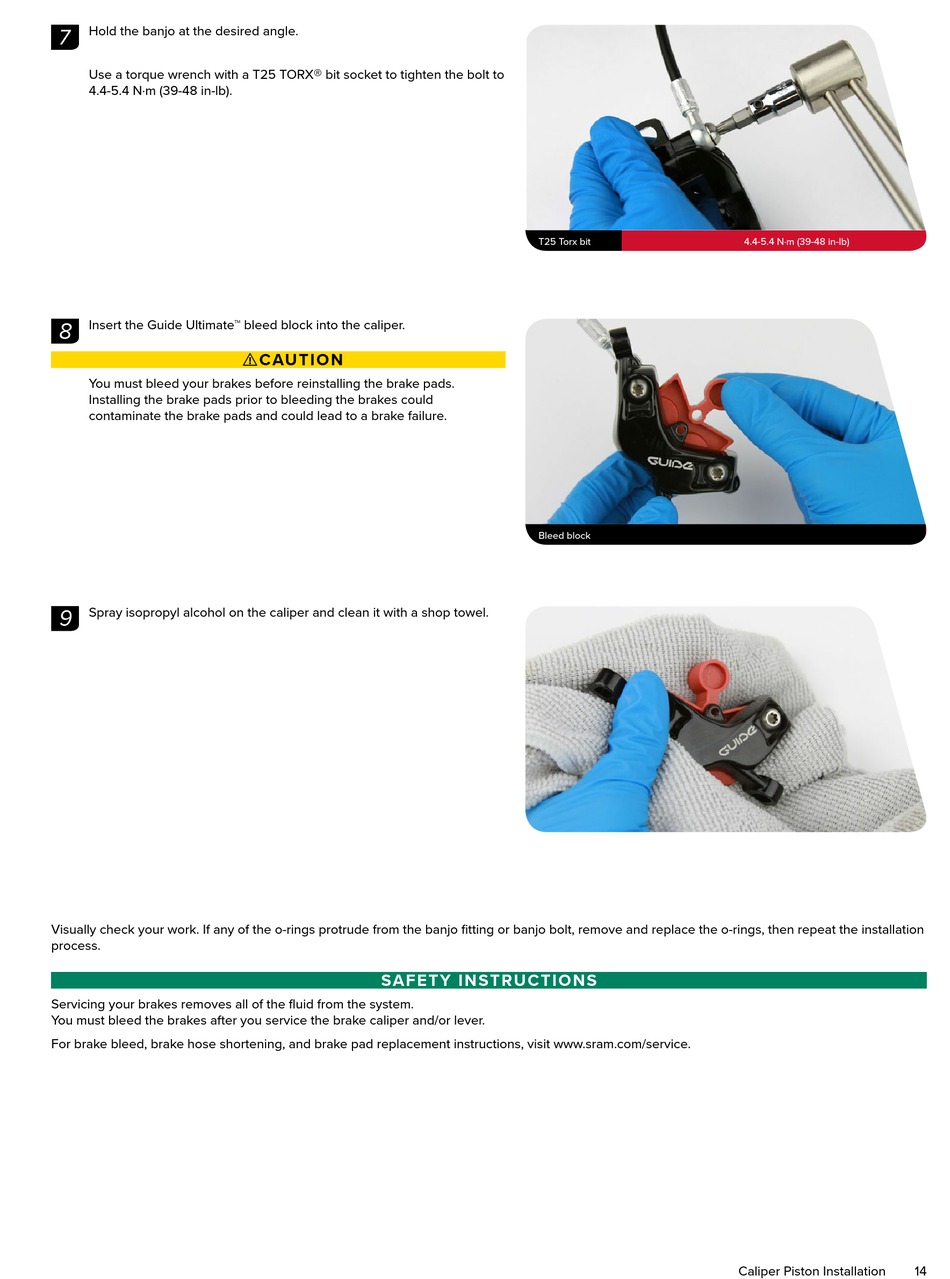

Hold the banjo at the desired angle.
Use a torque wrench with a T25 TORX
4.4-5.4 N·m (39-48 in-lb).
8
Insert the Guide Ultimate™ bleed block into the caliper.
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could
contaminate the brake pads and could lead to a brake failure.
9
Spray isopropyl alcohol on the caliper and clean it with a shop towel.
Visually check your work. If any of the o-rings protrude from the banjo fitting or banjo bolt, remove and replace the o-rings, then repeat the installation
process.
Servicing your brakes removes all of the fluid from the system.
You must bleed the brakes after you service the brake caliper and/or lever.
For brake bleed, brake hose shortening, and brake pad replacement instructions, visit www.sram.com/service.
®
bit socket to tighten the bolt to
⚠CAUTI ON
SAFET Y I NSTRUC TI ON S
T25 Torx bit
Bleed block
4.4-5.4 N·m (39-48 in-lb)
Caliper Piston Installation
