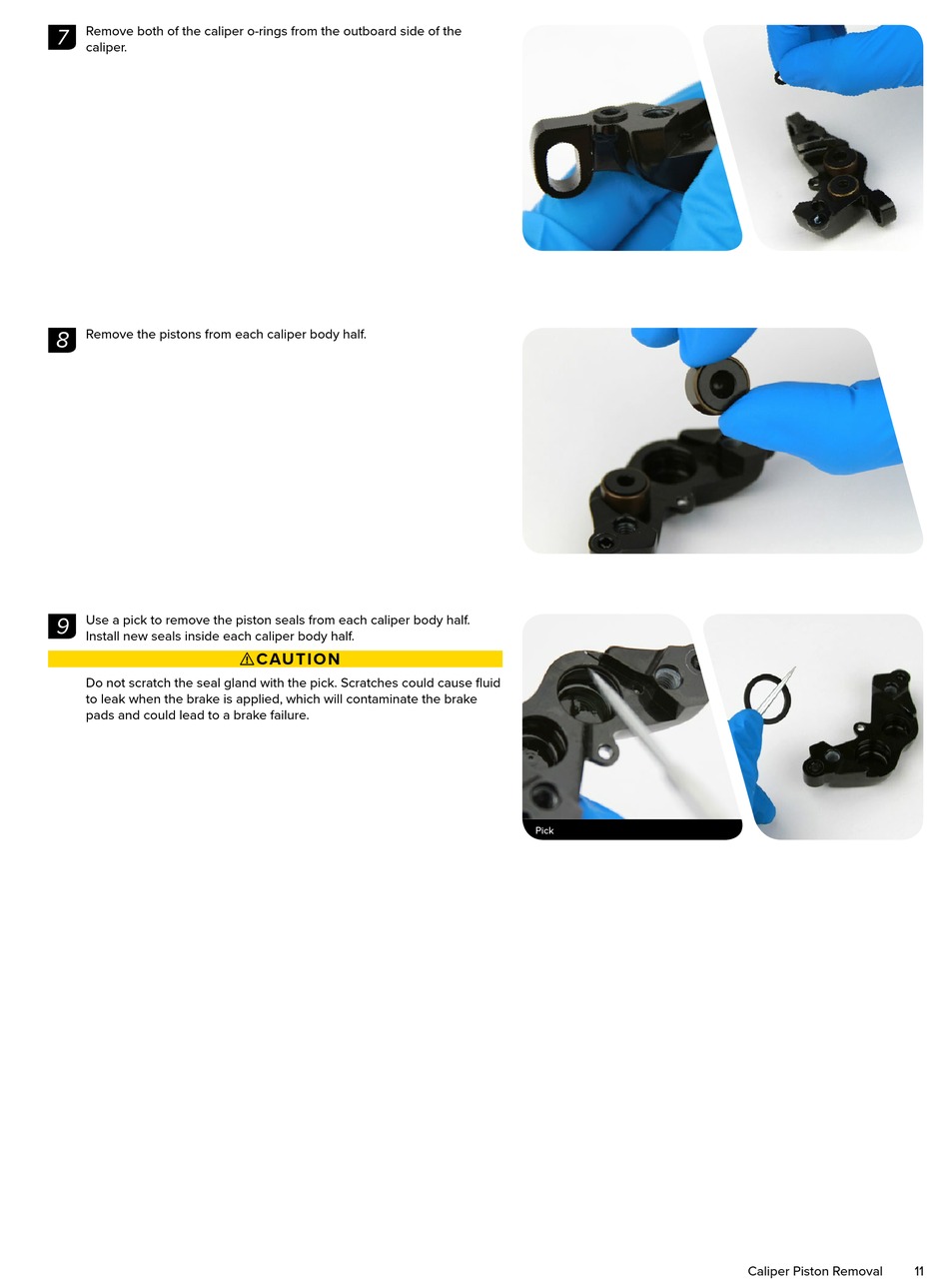

7
Remove both of the caliper o-rings from the outboard side of the
caliper.
8
Remove the pistons from each caliper body half.
9
Use a pick to remove the piston seals from each caliper body half.
Install new seals inside each caliper body half.
Do not scratch the seal gland with the pick. Scratches could cause fluid
to leak when the brake is applied, which will contaminate the brake
pads and could lead to a brake failure.
⚠CAUTI ON
Pick
20 mm or 15 mm Thru Axle
Caliper Piston Removal
11
