Altronix Maximal11FD Installation Manual page 8

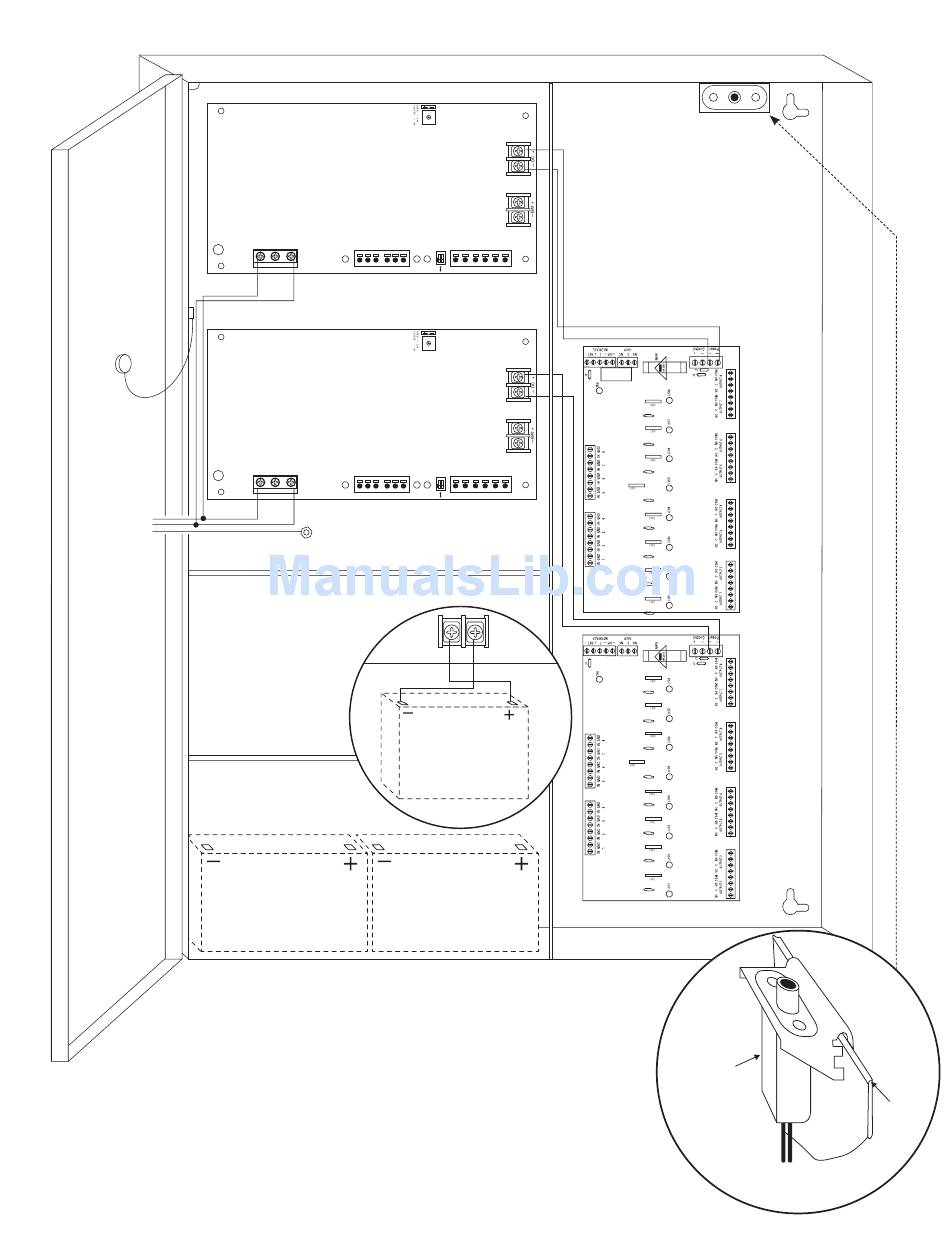

Fig. 3
Wire
Strap
(from
Enclosure
to Door)
120VAC Input
60 Hz.
Maximal11FD/Maximal33FD/Maximal55FD/Maximal77FD/Maximal75FD Access Power Controllers (PTC)
Power Supply Board
AC FAIL
AC1
5A 250V
L G N NC C NO
Line Neutral
Power Supply Board
AC FAIL
AC1
5A 250V
L G N NC C NO
Line
Neutral
Earth
Ground
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to
the terminal marked [+ BAT]
and to the [positive (+)]
terminal of the battery.
Connect black battery
lead to the terminal
marked [BAT --] and to
the [negative (--)]
terminal of the battery.
Optional Rechargeable
Stand-by Battery
for UL294 Applications
Note: 12V batteries required
for ULC-S319 installations.
CAUTION: When power supply board is set for
12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non
power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest
batteries that can fit in this enclosure. A UL
listed external battery enclosure must be
used if using the 40AH or 65AH batteries.
BAT FAIL
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO GND
NC C NO + AUX –
2 hr. disable
SUPERVISED RESET
BAT FAIL
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO GND
NC C NO + AUX –
2 hr. disable
SUPERVISED RESET
+ BAT ---
Optional Rechargeable
Stand-by Battery
for UL294 Applications
Note: 12V batteries required
for ULC-S319 installations.
Optional Rechargeable
Stand-by Battery
for UL294 Applications
Note: 12V batteries required
for ULC-S319 installations.
Tamper Switch
Sentrol
model # 3012
Tamper Switch
or equivalent
(Not Included)
Fig. 3a
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Edge of
Enclosure
- 8 -
