General Specifications - Endless Pools Swim Spa Operation And Maintenance Manual

heat.wav ratings:
Voltage: 120/240VAC
Current: 17A resistive (4 kW heater at 240V)
Frequency: 50 / 60 Hz
heat.wav heater flow rate:
Minimum of 18 GPM is required
Important:
• All low voltage accessories use + 5Vdc and/or + 12 Vdc.
• All low voltage accessories combined:
150 mA max, on + 12 Vdc.

GENERAL SPECIFICATIONS:

Environmental:
Operating temperature: -20°C (-4°F) to 60°C (140°F)
Storage temperature: -25°C (-13°F) to 85°C (185°F)
Humidity: up to 85% RH, non condensing
IPx5 level of waterproofing is conditional on 3 items:
• Both front covers (heater and input wiring) are closed and
screwed shut.
• A waterproof strain-relief/bushing is used for the cable entry
into the pack.
• Any unused in.link connections (HC, LC, or low voltage) is
plugged with the appropriate blank plug.
Mechanical:
Weight: 4.76 kg (10.5 lbs)
Dimensions (W x H x D):
Chassis: 441.5mm x 298.5mm x 129mm
(17.38" x 11.75" x 5.1")
UL/CSA Standards:
UL 1563 Fifth Ed.
File: E182156
CSA No. 22.2 - 218.1-M89.
TUV Standards:
EN/IEC 60335 - 2 - 60
EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3
The in.xe is lab tested to IPx5 enclosure protection levels.
9

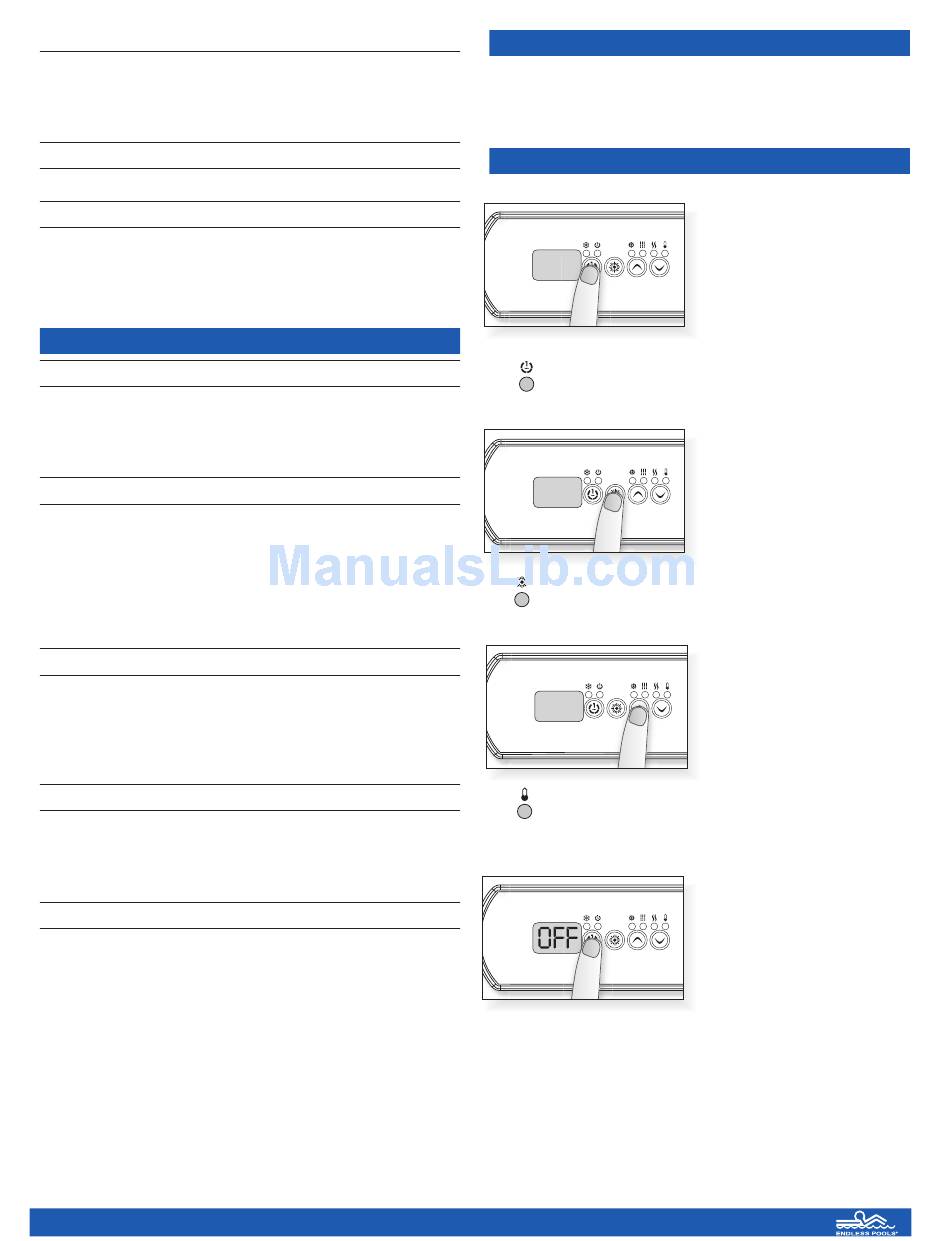

in.k200 full-function keypad
The Quick Reference Card provides a quick overview of your
spa's main functions and the operations accessible with your
digital control pad.
Spa Functions
Key 1
98
The "Pump 1" indicator lights up when
Pump 1 is on.
Light Key
98
The "Light" indicator lights up when light is on.
Up/Down Keys
98
The "Set Point" icon indicates that the display
shows the desired temperature, NOT the current
water temperature!
Off Mode
While the Off mode is engaged, the display will toggle between
OFF and the water temperature.
Press Key 1 key twice to turn
the jet pump on. Press a third
time to turn jets off.
A built-in timer automatically
turns pump off after 30 minutes,
unless pump has been manually
deactivated first.
Press Light key to turn light on.
Press a second time to turn light
off. A built-in timer automati-
cally turns light off after 2
hours, unless it has been
manually deactivated first.
Use Up or Down key to set
desired water temperature.
The temperature setting
will be displayed for 5 seconds
to confirm your new selection.
This mode allows you to stop all
outputs for 30 minutes to per-
form a quick spa maintenance.
Press and hold Key 1 key for 5
secs to activate the Off mode.
Quick press Key 1 key to reacti-
vate the system before the expi-
ration of the 30-minute delay.
