Robustel R3000 Lite Hardware Manual
Industrial dual sim cellular vpn router
Hide thumbs
Also See for R3000 Lite:
- User manual (137 pages) ,
- Frequently asked questions manual (33 pages) ,
- Installation and configuration manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Robustel R3000 Lite
Summary of Contents for Robustel R3000 Lite

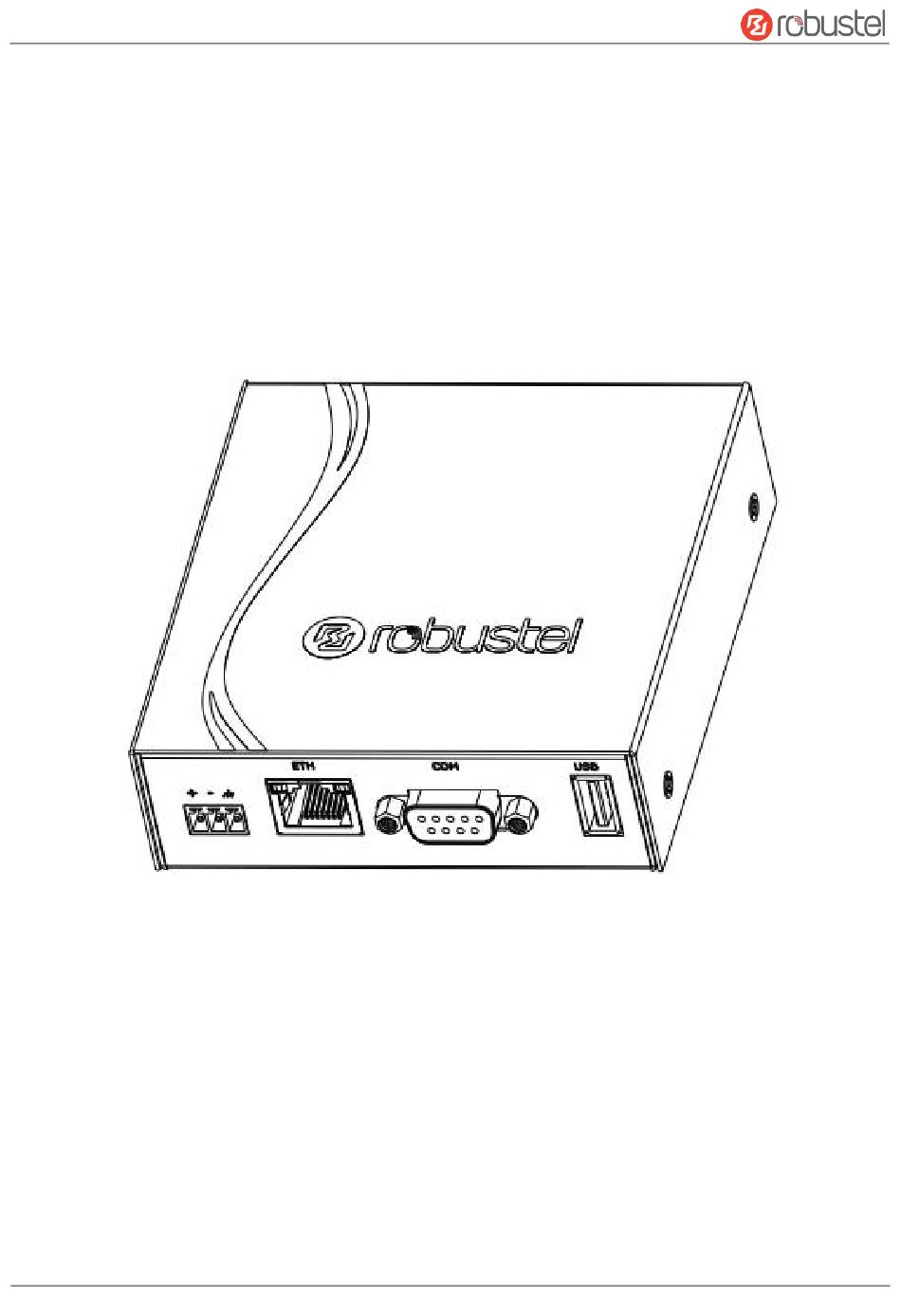

- Page 1 Robustel R3000 Lite Hardware Manual R3000 Lite Hardware Manual Version: 1.0.3 Date: February 10, 2025 RT025_HM_R3000_Lite 1/11...
- Page 2 Robustel R3000 Lite Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of the Part Hazardous Substances (Pb) (Hg) (Cd) (Cr (VI) ) (PBB) (PBDE) Metal parts Circuit modules...
- Page 3 Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 4 Robustel R3000 Lite Hardware Manual www.robustel.com/certifications/ Safety Information General - The router generates radio frequency (RF) power. When using the router, care must be taken on safety issues related to RF interference as well as regulations of RF equipment. - Do not use your router in aircraft, hospitals, petrol stations or in places where using cellular products is prohibited.
- Page 5 Robustel R3000 Lite Hardware Manual Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 28, 2022 5.0.0 1.0.0 Initial release. Nov. 22, 2022 5.0.0...
- Page 6 Robustel R3000 Lite Hardware Manual Overview The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. R3000 Lite is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel hardware routers.
-
Page 7: Interface Descriptions
Robustel R3000 Lite Hardware Manual Interface Descriptions LED Indicator Name Color Status Description Green On, fast blinking Router is powered on (System is initializing) (250ms blink time) On, blinking Router starts operating (500ms blink time) Router is powered off On, solid... - Page 8 Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. R3000 Lite Router has one Ethernet port with two LED indicators. The yellow one is link indicator and the green one is speed indicator. For details about status, see the table below.
-
Page 9: Hardware Installation
Robustel R3000 Lite Hardware Manual Hardware Installation SIM Card Installation. Loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot. Press the card with finger until you hear a click and then tighten the screws associated with the cover by using a screwdriver. - Page 10 Note: The range of power voltage is 9 to 36V DC. Connect the Router to a Computer. Connect an Ethernet cable to the port marked ETH at the bottom of the R3000 Lite, and connect the other end of the cable to your computer. RT025_HM_R3000_Lite...
- Page 11 Robustel R3000 Lite Hardware Manual Login to the Device After logging in, the home page of the web Connect the router’s Ethernet port to a PC with a interface is displayed, then you can view system standard Ethernet cable. information and perform configuration on the device.
