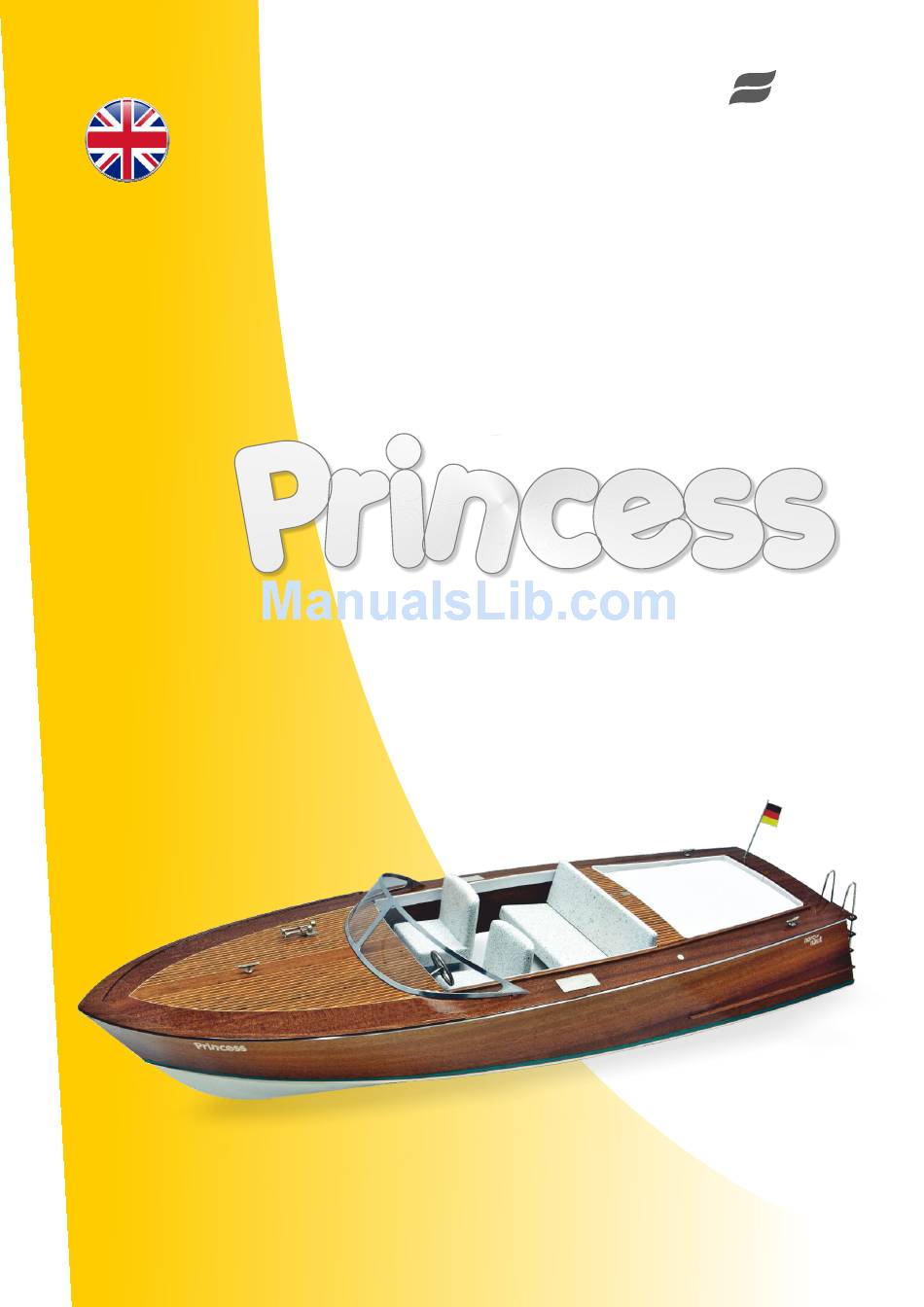

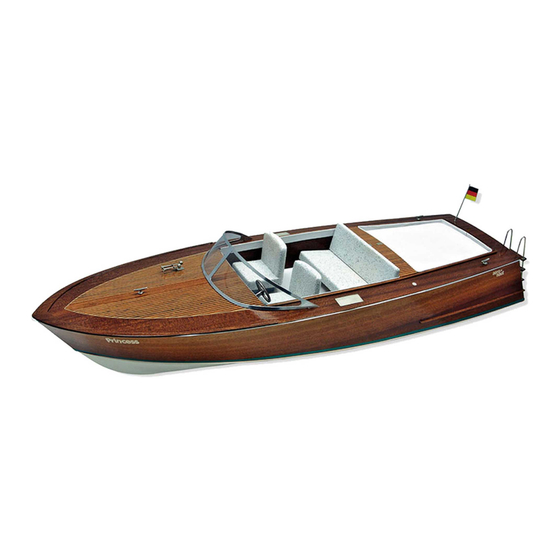

- Page 1 Die Bauanleitung in Deutsch können Sie auf unserer Webseite laden: www.aero-naut.de Vous pouvez télécharger la notice de construction à parti de notre site web: www.aero-naut.fr Order No. 3081/00...
- Page 2 12 must end flush with the top of the frames. Frame 7 supports the motor (see Stage 22), and therefore must be fitted at an angle. aero-naut Modellbau GmbH & Co. KG, Stuttgarter Str. 18, D-72762 Reutlingen...
- Page 3 Insert the two fore-and-aft bearers 13 in the slots in frames 1 and 3 - 7, and press them fully into the notches; note that the bearers 13 must not project. Press frame 1 against the bearers 13 from the rear. Position the plywood template 18 between frames 3 + 4 to ensure that the whole structure is “square”.
- Page 4 Glue together the front end of the three chine stringers 19 over a length of 150 mm. Trim the joined stringers to fit neatly against the keel 12, and offer them up to the keel 12 and frame 11. Use a sanding block to sand back the stringers 19 so that they do not project beyond the front edge of the keel 12 at the sides and forward.
- Page 5 The next step is to trim the side stringers 20 + 21 to fit against the keel 12 and glue them in place. Press the strips into the notches in frame 11. When the glue has set hard, glue the stringers 20 in the notches in frames 1 - 11.
- Page 6 Apply more glue to the joints between the side panels 23 and the frames and stringers from the inside of the hull. Caution: take care to identify the left and right sides during the next stage. Chamfer the inside (centreline) edge of both hull bottom panels 24 (see arrows), to produce a sharp edge on the outside of the joint.
- Page 7 Caution ! Kielteile The next three stages, which are described on this page, must be carried out while the glue is still soft. This means that there is little time for adjustment, so please check once more that the bottom panels 24 are an accurate fit before reaching for the glue.
- Page 8 The boatstand can now be assembled: glue parts 27, 28 + 29 together in pairs, and glue these assemblies to the bearers 29 when The finished boatstand. From this point on the hull should be left in the stand for all construction work. Motor 30.5/30.6 Break off the jig tabs from the keel 12 and the...
- Page 9 Glue the keel wedge 31 between the hull bottom 24 and the shaft tube 30. Ensure that the propeller is still free to rotate. Glue the deck support rails 22 in the notches in the top of frames 1 - 11, and secure them with screw-clamps: press the rails 22 outwards as far as they will go, i.e.
- Page 10 Glue the supports 38 to the cockpit side panels 37. Place both side panels in the hull, with the supports 38 on the inside. The side panels 37 must butt up against the edge of the deck 32; you may need to sand back the deck support rails 22 slightly to achieve this.
- Page 11 Glue together the two parts 44 at the tabbed joints to form the back panel, and press this assembly against the top edge of frame 2 between the side panels 37. Do not glue it to frame 2! Glue the partition wall 42 to the couch floor 41 and to the side panels 37, keeping the panel vertical.
- Page 12 Adjust the opening in the servo plate 50 to suit your rudder servo, and glue it in the notches in the fore-and-aft bearers 13. Glue the rudder bush 49 and the rudder support plate 50 in the hull using two-pack adhesive;...
- Page 13 Glue the bow doublers 56 to the deck, leaving a gap about 2 mm wide to the outside edge of the deck. Round off the edges slightly. Glue the cockpit front panel 58 in place between parts 37 and to the floor 39. Pull the side panels 37 together using adhesive tape before gluing the joints.
- Page 14 Glue the backrests 66 and 70 to the seats 65 and 69, followed by the uprights 67. These are fitted under the seats; note that the low end of the uprights should be under the backrests. Glue the backrest padding 71 and 75 to parts 66 and 70, keeping the edges flush.
- Page 15 Sand the windscreen frame 95 and curve it to shape. Bend the three retaining tongues so that they can be inserted vertically in the slots in the deck. Glue the windscreen 96 to the frame. Glue the rubbing strake 97 to the transom 25 at the rear of the hull, at a point 70 mm below the deck;...
- Page 16 The throttle control is assembled from parts 83 - 85; glue the assembly to the inside wall on one side of the skipper’s seat. The fittings 99 to 103 can now be glued to the model. Your boat is now ready for the water, but first you should check everything thoroughly one last time.
- Page 17 Metal Order No. 1 = Plywood 1 Ventilator Metal Order No. 2 = Plywood 2 Exhaust Metal Order No. 3 = Plywood 3 ‘Princess’ name placard Plastic film Printed B = Main deck M = Mahogany MA= Mahogany - obechi...
