Building Instructions

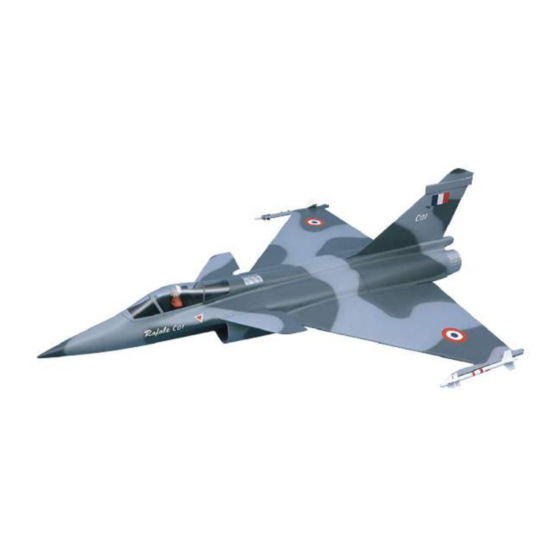

Dassault Breguet
Rafale C 01
RC electric model
Order No. 1358/00
Specification
Wingspan
Length
Wing area
Canard area
Total surface area
All-up weight
Total surface area loading
RC functions
Elevons, throttle
"aero-naut" Modellbau
Stuttgarterstr. 18-22
D-72766 Reutlingen
Germany
http://www.aero-naut.de
© "aero-naut" Modellbau
Building instructions - Rafale C 01 - Aramid
940 mm
1340 mm
38 dm²
3 dm²
41 dm²
3200 g
78 g/dm²
Dassault Breguet Rafale C01
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for aero-naut Dassault Breguet Rafale C 01
Summary of Contents for aero-naut Dassault Breguet Rafale C 01
- Page 1 3 dm² Total surface area 41 dm² All-up weight 3200 g Total surface area loading 78 g/dm² RC functions Elevons, throttle “aero-naut” Modellbau Stuttgarterstr. 18-22 D-72766 Reutlingen Germany http://www.aero-naut.de © “aero-naut” Modellbau Building instructions - Rafale C 01 - Aramid...
- Page 2 Dassault Breguet Rafale C01 Replacement parts GRP fuselage, 3-part Order No. 1358/02 Canopy and cockpit Order No. 1358/04 Wing set Order No. 1358/05 Undercarriage Prepared for retract system: Order No. 7358/52 Dummy pilot Order No. 7335/03, in preparation Power system Turbo-Fan 4000 ducted fan unit Order No.
- Page 3 Dassault Breguet Rafale C01 through the noseleg steering arm, then fit the tubular rivets on them (D). Pull the cables taut with a pair of pliers, and solder them to the tubular rivets. 4) Nosewheel door actuator Glue one end of a length of steel cable (A) to the centre of the nosewheel door, and the other end to the inside of the fuselage on the opposite side.
- Page 4 Dassault Breguet Rafale C01 10) Fuselage Cut 12 pieces of scrap plywood to accept the connecting screws (50), space them out evenly on the inside of the fuselage (1) where it projects beyond the motor bulkhead (68), and glue them in place. Drill pilot-holes for the screws (50) when the glue has set hard.
- Page 5 Dassault Breguet Rafale C01 The wings can now be glued to the front fuselage section (1) and the root facing ribs (14 + 15). Apply two layers of 80 g glass cloth and resin to the joint area between the wing panels and the front fuselage section (1). Apply filler to the joint lines very carefully;...
- Page 6 Dassault Breguet Rafale C01 Parts List No. off Front fuselage section Ready made Rear fuselage section Ready made GRP / Styrofoam Ready made Fin spar Balsa Oversize, 9 x 9 x 160 mm Air duct intake lip GRP, left + right Ready made No part No part...
- Page 7 And please take care: when the model has landed, do not switch the motor on again until you have checked that there are no foreign bodies in the air intake! All of us at “aero-naut” Modellbau hope you have many hours of pleasure flying this superb and beautiful model. Building instructions - Rafale C 01 - Aramid...
- Page 8 Dassault Breguet Rafale C01 Building instructions - Rafale C 01 - Aramid...
