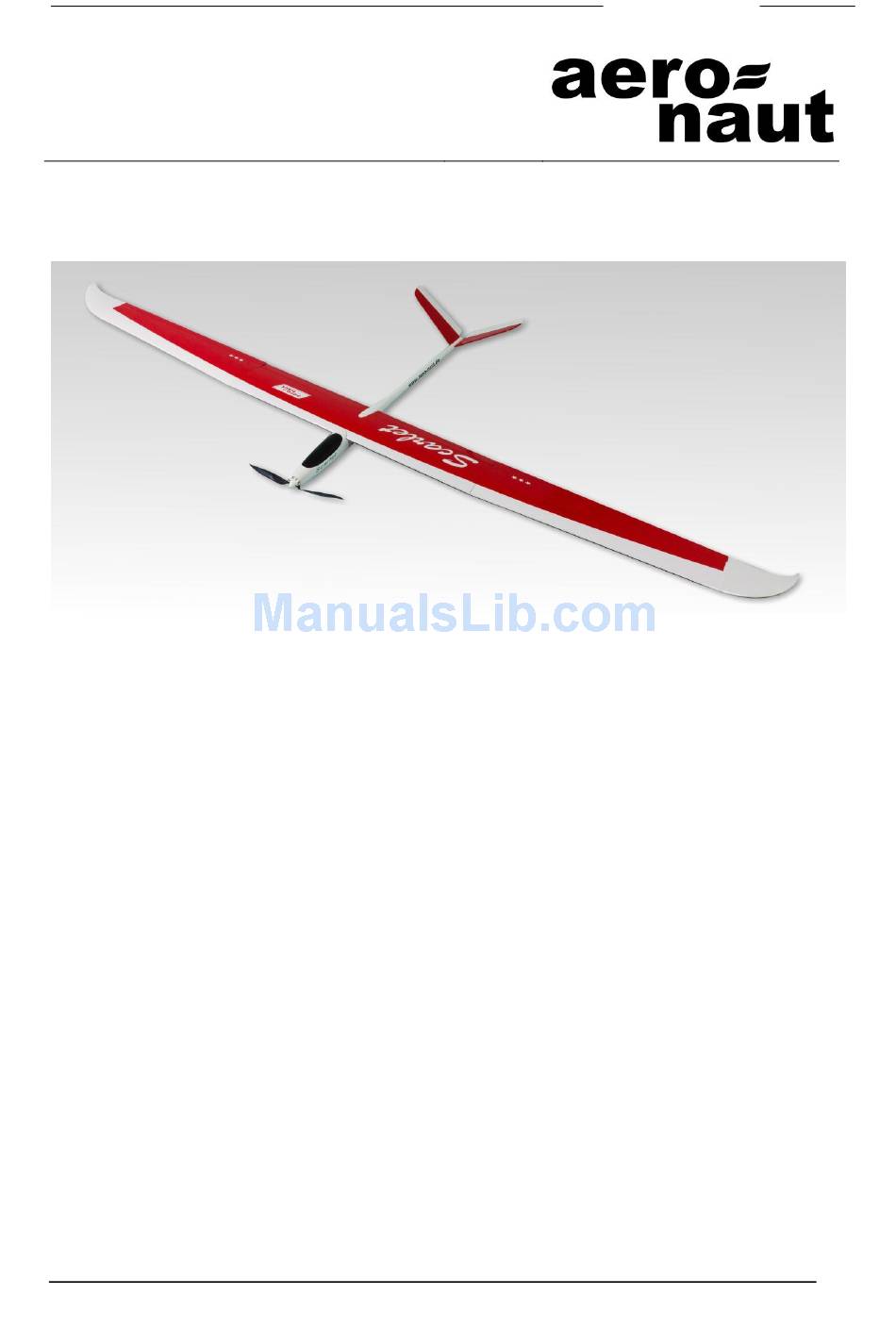

Building Instructions

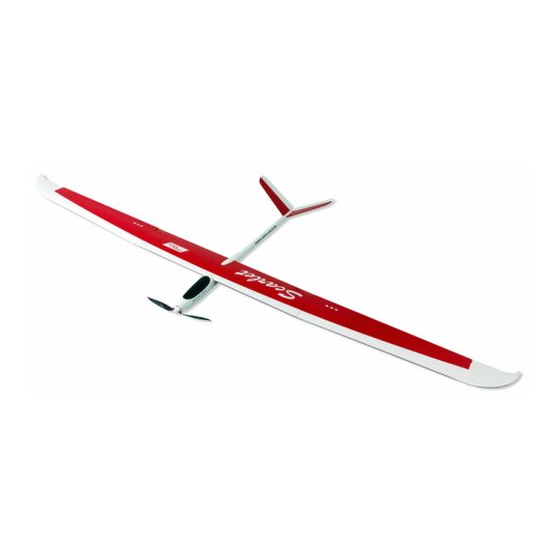

Scarlet RC model aircraft
Order No. 1308/00
Specification:
Scarlet building instructions
Wingspan
Length
Wing area
All-up weight
Wing loading
RC functions
Scarlet
approx. 3000 mm
approx. 1270 mm
approx. 53.5 dm²
approx. 1.45 kg
approx. 39 g/dm²
Aileron, elevator,
rudder, flaps,
throttle
1
Advertisement
Table of Contents
Related Manuals for aero-naut Scarlet
Summary of Contents for aero-naut Scarlet
- Page 1 Scarlet Building Instructions Scarlet RC model aircraft Order No. 1308/00 Specification: Wingspan approx. 3000 mm Length approx. 1270 mm Wing area approx. 53.5 dm² All-up weight approx. 1.45 kg Wing loading approx. 39 g/dm² RC functions Aileron, elevator, rudder, flaps,...
-
Page 2: Parts List
4 m x 0.14 sq mm twisted servo cable, 6-pin plug and socket. Recommended RC equipment 6 servos (each 9 - 13 mm) Receiver (min. 5-channel) Recommended power system Motor: 500 Watt Battery: 4S LiPo / LiIon Scarlet building instructions... - Page 3 Wing The wing (this and the following pictures show the “Noemi”; the “Scarlet” wings are similar) con- sists of three panels: the centre section, which is attached to the fuselage by a single screw, and two outboard panels, which are plugged into the centre section.
- Page 4 The wing retainer screw engages in a captive nut which should be glued to the underside of the central hole in the wing saddle using 5-minute epoxy. Ensure that no glue gets into the threaded section. Scarlet building instructions...
-
Page 5: Installing The Motor
5-minute epoxy. Keep the bulkhead exactly parallel to the front edge of the fuse- lage: the motor shaft must be angled slightly down (about 2°) and very slightly to the right (as seen from the tail; about 1°). Scarlet building instructions... -
Page 6: Final Stages
Always land the model with its nose pointing directly into wind. Let it glide towards the ground at a shallow angle, and don’t apply up-elevator until it is just about to touch down. Never carry out any major corrections with the rudder when the model is close to the ground! Scarlet building instructions... -
Page 7: Safety Notes, Hazard Warnings
Please follow the building instructions to the letter when completing and operating this model. The building instructions include information on safe flying. This model is in no respect a children’s toy. aero-naut Modellbau GmbH & Co KG, Stuttgarter Strasse 18-22, 72766 Reutlingen, www.aero-naut.com Scarlet building instructions...
