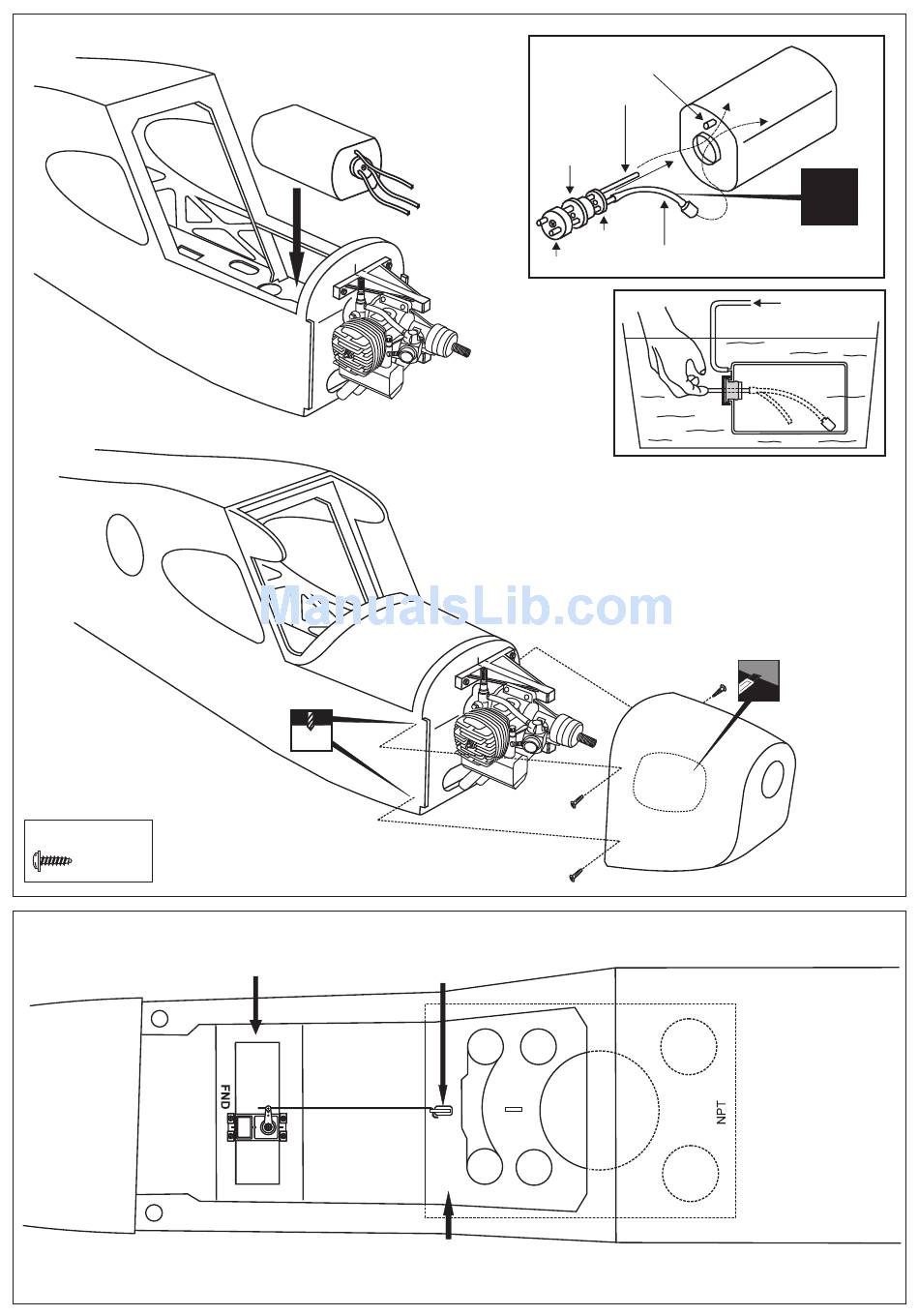

VQ Models SCOOTER Instruction Manual page 9

9
2.5x12mm screw
............4
10
Hatch servo tray (FND)
Important: Please insert the hatch pushrod into the hole on the hatch control horn before insert and glue the control
horn onto the hatch.
Insert the fuel tank (in case of gas engine)
or Li-po battery (in case of Electric motor)
1.5mm
Fuselage - top view
Control horn
Bottom hatch
Filler tube
Rubber
stopper
Stopper
9A
Cap
Checking for leaks - block the vents and blow
into the feed - if in doubt submersing the tank
in a blow of water will show up any problems.
9B
2.5x12mm screw
To muffler
To engine
Blow
Water
Cut the opening
X
