Side View; Top View - VQ Models SCOOTER Instruction Manual

2

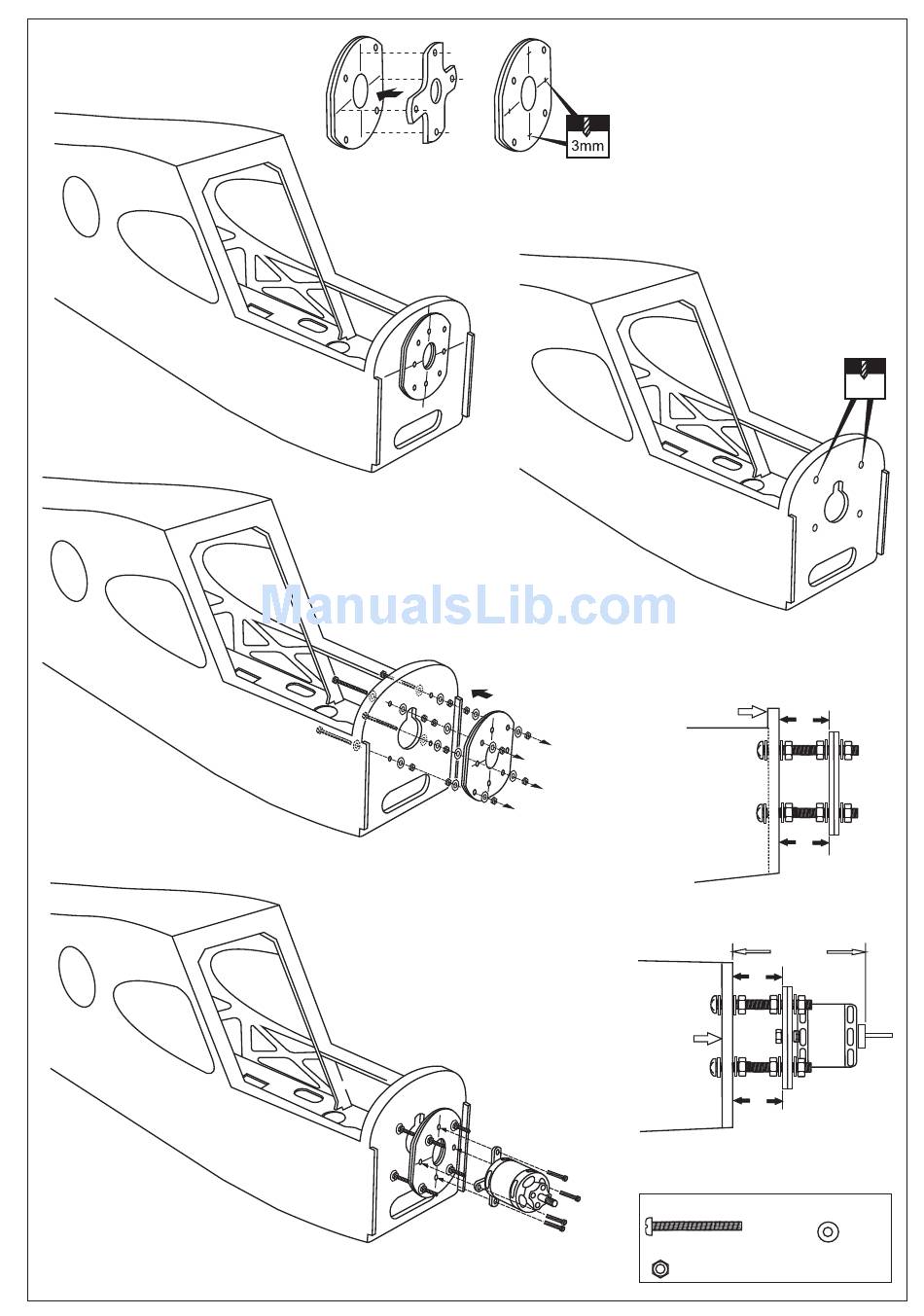

Attach the aluminum motor
mounting plate on to the motor
and secure it in place with four
screws ( included with motor set).
2A
Using a plywood motor mounting plate as a template,
mark the fire wall where the four holes are to be drilled .
2B
2D
Reposition the plywood motor mounting plate and secure
it in place with twelve 5xmm nuts and washers (6).
Note: B=B'(top-view) and A=A'(side-view)
2E
Using the aluminum mounting plate as
template, mark the plywood motor mounting
plate where the four holes are to be drilled
(2A).
Remove the aluminum mounting plate and
drill 3mm hole through the plywood at each
of the four marks marked (2B).
Note: The aluminum motor mounting
included with electric motor set.
2C
Remove the plywood motor mounting plate and drill a
13/64"(5mm) hole through the fire-wall at each of the four
marks marked above.
Fire-wall

SIDE VIEW

Fire-wall

TOP VIEW

! Engine thrust on balk head
is already adjust at factory
5x60mm screw
5mm nut
X12
5mm
A
A'
A=A'
112mm
B
B'
5mm washer
X4
X16
